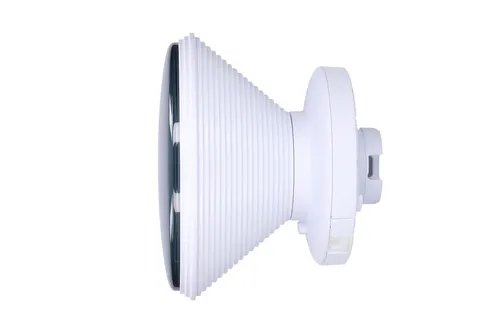

The antenna is interchangeable and helps to shape the beam for specific applications and environmental needs. The IsoStation also provides maximum gain at the smallest base.
The IsoStation can use different antenna sectors. Designed to increase performance without sacrificing gain. Unique stream performance and excellent characteristics allow for higher sector density than traditional sector technology.

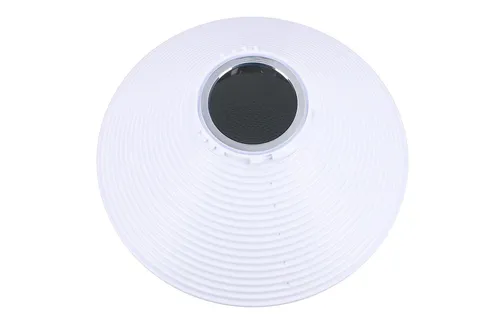

The asymmetrical tube antennas (60° and 90°) have naturally attenuated side bars and very low back radiation and offer the industry's best forward-reverse ratio and low side panel radiation. Symmetrical tube antennas (30° and 45°, by default) are ideal for installation in the cluster sector with high location requirements.
The IsoStation locks or space filters noise for improved noise immunity. This function is particularly important in an area crowded with other radio signals of the same or similar frequency.
airOS is an extremely intuitive technology designed to require action without special training. Behind the user interface there is a powerful software that allows for a high level of safe operation.
You can access IsoStation M5 via UNMS after setting it up on the same Wi-Fi network as your mobile device.
Features / filters | |
LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
Maximum wireless transmission speed | 150 Mb/s |
Number of LAN ports | 1x 10/100/1000BaseTX (RJ45) |
Operating frequency | 5 GHz |
Antenna gain | 11dBi - 20dBi |
Antenna gain (5 GHz) | 14 |
Antenna gain level (max) | 14 |
Built-in processor | Yes |
Cabling technology | 10/100/1000Base-T(X) |
Certification | FCC, IC, CE |
Depth | 174 |
Device type | Client device |
Frequency band | 5 |
Harmonized System (HS) code | 85177100 |
Height | 150 |
Horizontal beam width | 45 |
Horizontal beamwidth | 45° |
Input voltage | 24 |
Internal memory | 64 |
Internal memory type | DDR2 |
LED indicators | Power |
Mounting | Pole |
Operating relative humidity (H-H) | 5 - 95 |
Operating temperature (T-T) | -40 - 70 |
Processor model | Atheros MIPS 74Kc |
Product colour | Black, White |
RAM memory | 64MB |
Type of device power supply | Passive PoE |
Vertical beam width | 45 |
Weight | 725.7 |
Width | 174 |
Basic technical parameters | |
Dimensions without tube | 131 × 131 × 131 × 65 mm |
Dimensions with tube | 174 × 174 × 150 mm |
Weight with tube | 725.7 g |
Weight without tube | 408.2 g |
Beam width | 45° |
Network interface | (1) 10/100/1000 Ethernet port |
LED | Power |
Maximum electricity consumption | 6,5W |

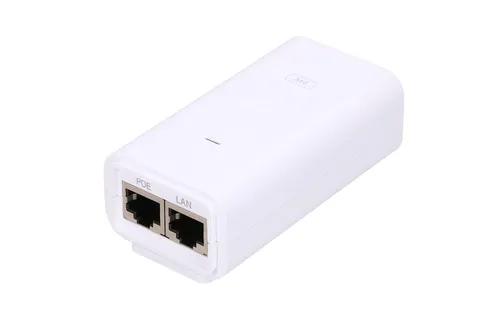

Power supply | 24 V, 0.5A Gigabit PoE Adapter (included) |
Power supply method | Passive PoE (pairs 4, 5+; 7, 8 Return) |
Voltage range supported | 20 to 26VDC |
Wind load | 36 N @ 200 km/h |
Maximum wind resistance | 200 km/h |
Operating temperature | -40 to 70° C |
Working humidity | 5 to 95% |
Installation | On the post (included) |
ESD/EMP protection | ± 24kV Contact/Air |
Certificates | CE, FCC, IC |
Operating frequency (MHz) | 5150 - 5875 |

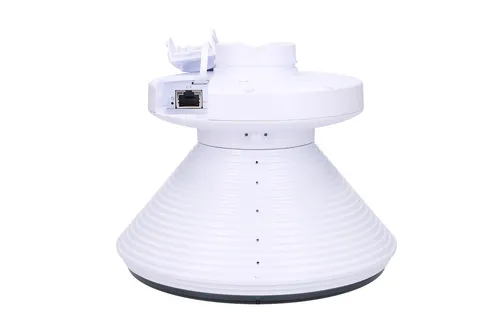

1. Remove the port cover by pushing it in and sliding it out.
2. Remove the rubber seal from the port cover.
3. Connect the Ethernet cable to the Ethernet port.
4. Put the port cover back on.
5. Put the rubber seal on the Ethernet cable and then slide the seal back into the port cover.
6. Connect the power using one of the following options:
- Using the included Gigabit adapter.
- Using a separate PoE switch.
