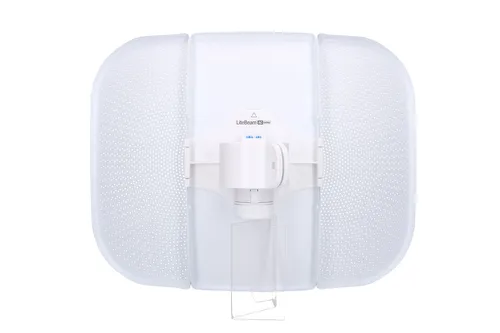

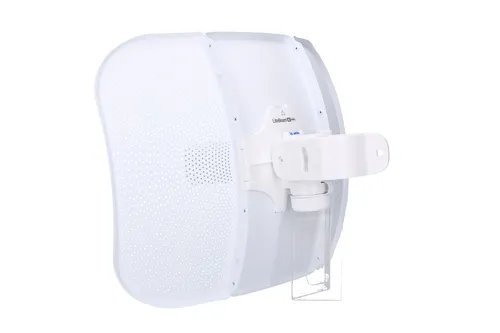

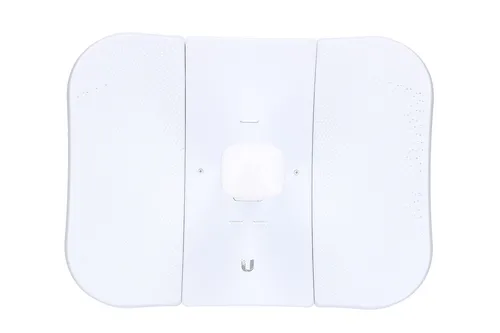

Ubiquiti LBE-5AC-GEN2-5 | CPE | LiteBeam 5AC, 5GHz, MIMO, 1x RJ45 1000Mb/s, 23dBi, 5-pack

CODE: LBE-5AC-GEN2-5-EU / EAN: 0817882022248

Ubiquiti LBE-5AC-GEN2-5 | CPE | LiteBeam 5AC, 5GHz, MIMO, 1x RJ45 1000Mb/s, 23dBi, 5-pack

CODE: LBE-5AC-GEN2-5-EU / EAN: 0817882022248
364,33 GBP without VAT (net)
Out of stock
Number of LAN ports: 1x 10/100/1000BaseTX (RJ45)
Operating frequency: Dual Band (2.4GHz, 5GHz)
Antenna gain: 21dBi - 30dBi
Antenna gain level (max): 23
Show more parameters
Numbers of pieces in the package:
1-pack
5-pack

About product

Wi-Fi management

LiteBeam® AC integrates a separate Wi-Fi radio for quick and easy setup with a mobile device.

ubiquiti LBE-5AC-GEN2-5 LITEBEAM

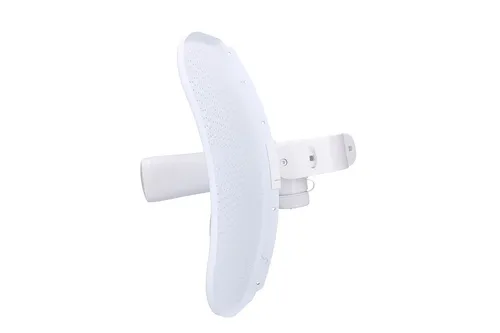

Improved installation and surge protection

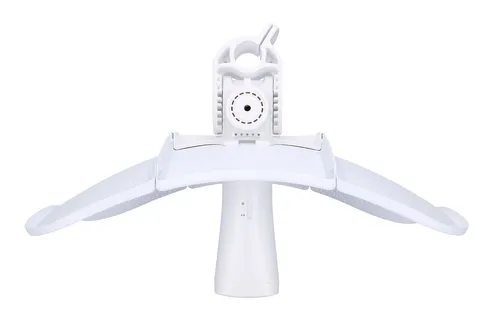

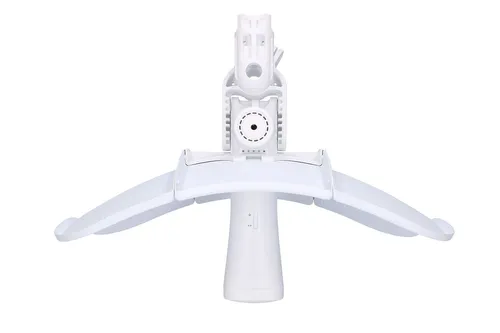

Equipped with enhanced ESD protection, LiteBeam® AC offers a more robust mounting with separate azimuth and height adjustments.

ubiquiti LBE-5AC-GEN2-5 LITEBEAM

Now with airOS8 and airView

airOS®8 offers advanced features including support for airMAX ac protocol, real-time signal analysis and a completely new design for enhanced functionality.

ubiquiti LITEBEAM 5AC 5GHZ 23DBI

Powerful 2x2 MIMO directional antenna

LiteBeam® AC provides 23 dBi gain for long-distance connections and is noise resistant.

ubiquiti LBE-5AC-GEN2-5 LITEBEAM

A breakthrough in design

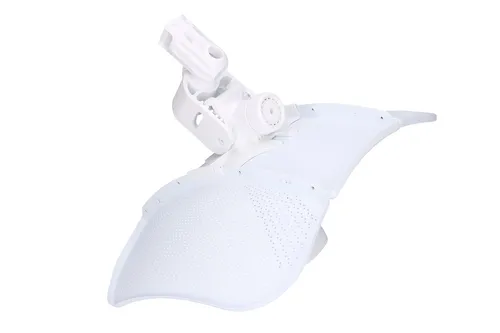

LiteBeam® AC can be freely set in three axes, so that the assembly is done in a matter of seconds, no special tools are needed.

ubiquiti 5GHZ 23DBI

Specification

Features / filters
Number of LAN ports 1x 10/100/1000BaseTX (RJ45)
Operating frequency Dual Band (2.4GHz, 5GHz)
Antenna gain 21dBi - 30dBi
Antenna gain level (max) 23
Certification CE, FCC, IC
DC input voltage 24
Device type Client device
Dimensions (WxDxH) 358 x 271.9 x 272.5
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Frequency band 5.150 - 5.875
Internal memory 64
LED indicators LAN, Power
Material Plastic
Maximum data transfer rate 450
Numbers of pieces in the package 5-pack
Operating relative humidity (H-H) 5 - 95
Operating temperature (T-T) -40 - 70, -40 - 158,
Power consumption (24V) 300
Power consumption (max) 7
Power source type PoE
Processor model MIPS 74Kc
Product colour White
Product type Network bridge
RAM memory 64MB
Security algorithms WPA2
Type of device power supply Passive PoE
Web-based management Yes
Weight 980

Basic technical parameters
Dimensions 358 × 271,95 × 272,5 mm
Weight without assembly 800 g
Weight with assembly 980 g

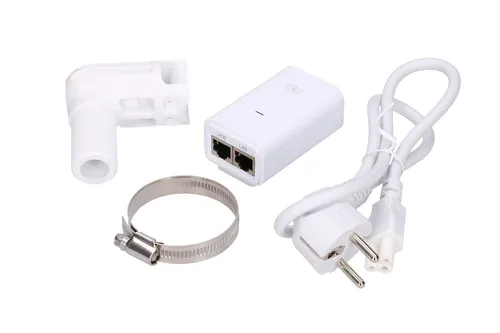

Power supply 24 V, 0.3A Gigabit PoE Adapter (included)
Maximum power consumption 7W
Power supply method Passive PoE (pairs 4, 5+; 7, 8 return)
Voltage range supported 24 V ± 10%
Gain 23 dBi
Network interface (1) 10/100/1000 Ethernet port
CPU specification MIPS 74Kc
Memory 64 MB DDR2
LEDs Power supply,
Ethernet
Channel size PtP mode 10/20/30/40/50/60/80 MHz
PtMP mode 10/20/30/40 MHz
Enclosure characteristics Headlamp (SGCC 0.6T) / plastic

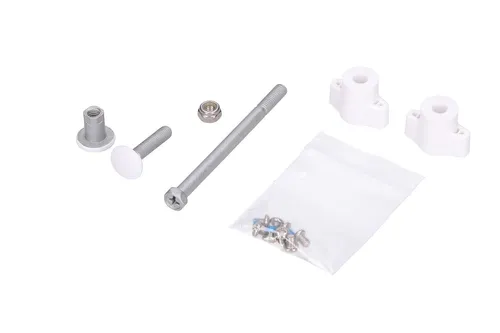

Mounting kit Pole mounting (supplied)
Wind load 275 N at 200 km/h
Wind survivability 200 km/h
ESD/EMP protection ± 24 kV Contact / air
Operating temperature -40 to 70° C
Operating humidity 5 to 95%
Certificates CE, FCC, IC
Operating frequency (MHz) 5150 - 5875
Management Radio (MHz) 2412 - 2472

Support

Software Download
Quick start guide Download
Datasheet Download

Faq

How to access airOS via Wi-Fi?

Metoda jest dostępna przez 15 minut natychmiast po włączeniu zasilania urządzenia. W razie potrzeby możesz włączyć ponownie zasilanie LiteBeam AC.


1. Download the UNMS app from the App Store (iOS) or Google Play™ (Android).

ubiquiti unms

2. Connect your device’s Wi-Fi to the LiteBeam AC SSID named: LBE-5AC-Gen2:MAC_Address


Note: Ensure that DHCP is enabled on your Wi‑Fi adapter.

3. Launch the app.

4. Tap the LiteBeam 5AC on the Connections screen.


ubiquiti unms

5. Tap Connect on the Login screen.

ubiquiti unms

6. . Select your Country and tap Done.

ubiquiti unms

7. Under Configuration, customize your settings as needed.

ubiquiti unms

What is the frequency of operation ?

Operating frequency: Dual Band (2.4GHz, 5GHz)

What are the methods of power supply ?

Device power type: Passive PoE
