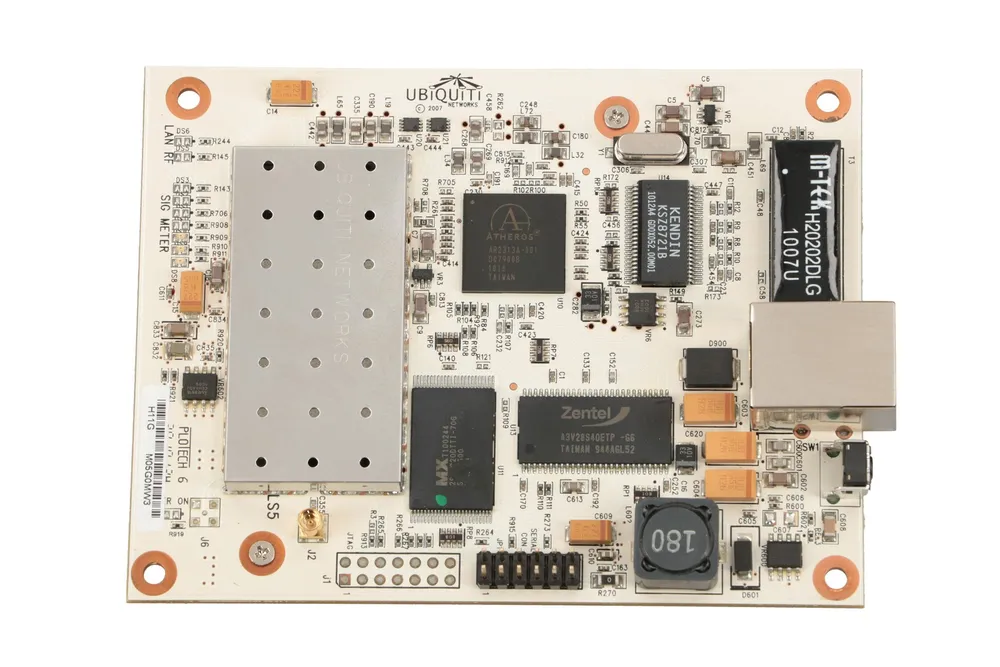

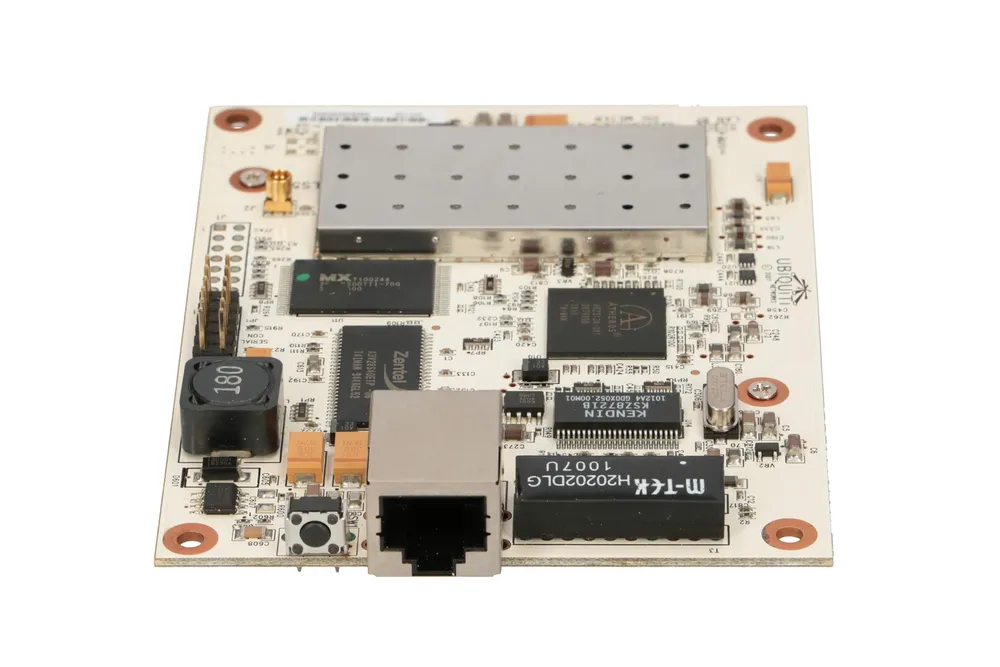

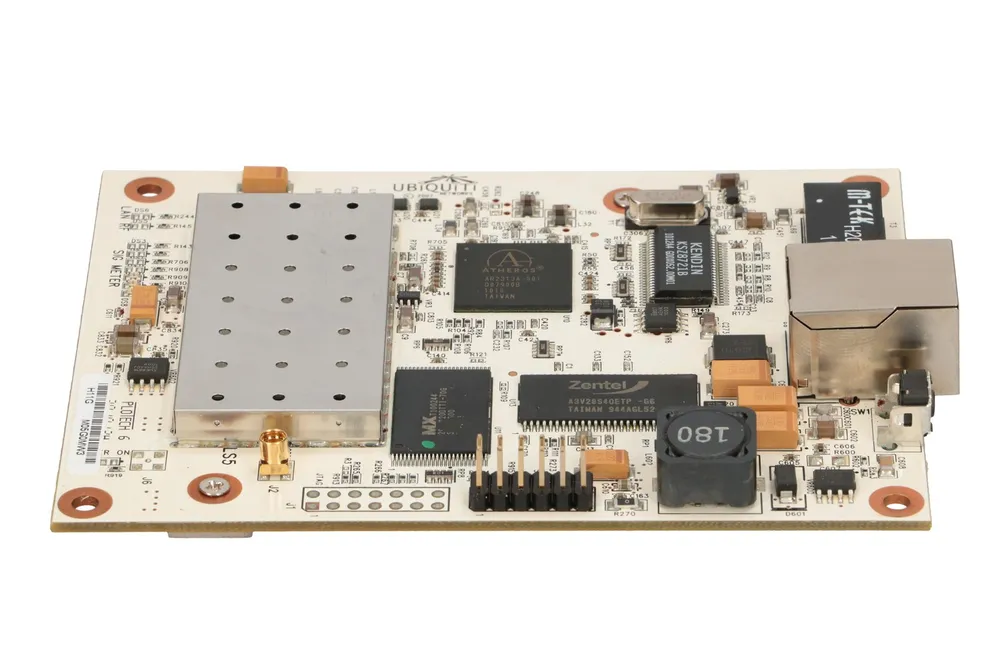

Ubiquiti LiteStation5 is a motherboard integrated with 802.11a Atheros radio module, 400mW with MMCX external antenna output. The board can be powered by PoE (up to 18V). There is 16 MB SDRAM and 4 MB flash memory on board. On the board can be installed AirOS system from Ubiquiti (SDK is also available) as well as OpenWRT and Ikarus. In case of IkarusOS level 2 system the board works with Mikrotik RouterOS in modes: WDS, AP Client, Station.
Combined with the intuitive LiteStation LS5 operating system, it becomes a simple, reliable and efficient bridge solution for clients. Additional features include signal strength LEDs and a custom heat sink for extended temperature ranges in compact enclosures. LiteStationOS software has a user-friendly, intuitive interface, making the whole product a simple, reliable and efficient solution AP / CPE.
Basic technical parameters: | |
CPU | Atheros AR5312 SOC, MIPS 4KC, 180MHz |
Memory information: | 16 MB SDRAM, 4 MB parallel flash memory |
Serial interface: | 10-pin (5x2) header available for RS232 / DB9 |
Network interface: | Ethernet 2 X 10/100 BASE-TX interface (Cat 5, RJ-45) |
Wireless approvals: | FCC Part 15.247, IC RS210, CE ETSI EN301 489-17 / 893 |
RoHS compliant: | YES |
Support for TX channel width: | 5 MHz / 10 MHz / 20 MHz / 40 MHz |
Maximum energy consumption: | 7.0 watts |
Power method: | Passive Power over Ethernet (4.5+ pairs; 7.8 return) |
Rated DC voltage: | 5-24 V (18 V max recommended) |
ESD / EMP protection: | Damping of transition voltage in the POE port |
Working temperature: | -40° C to 85° C (System plate optimized for low/high temperature) |
Modes: | Station, StationWDS, AP Bridge |
Services: | SNMP, DHCP, NAT |
Tools: | Antenna Alignment Tool, Discovery Utility |
Security: | WEP / WPA |
Technical Specification (ENG) | Download |
Operating temperature: -40°C to 85°C (System Plate optimized for low/high temperature)
Maximum energy consumption: 7.0 watts
Yes
