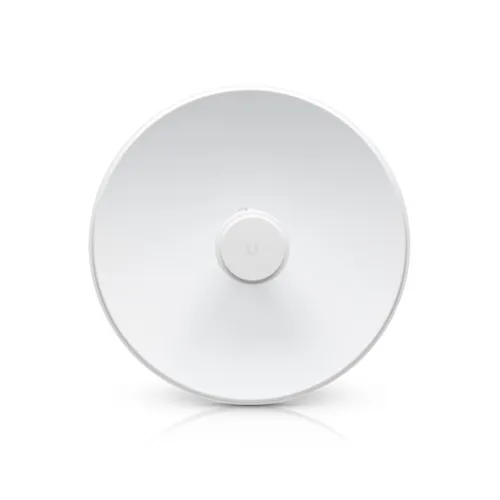

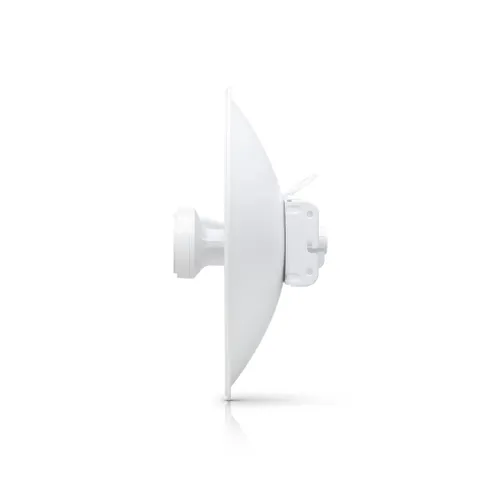

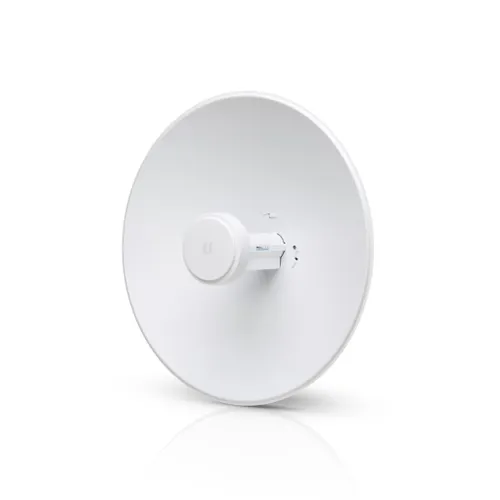

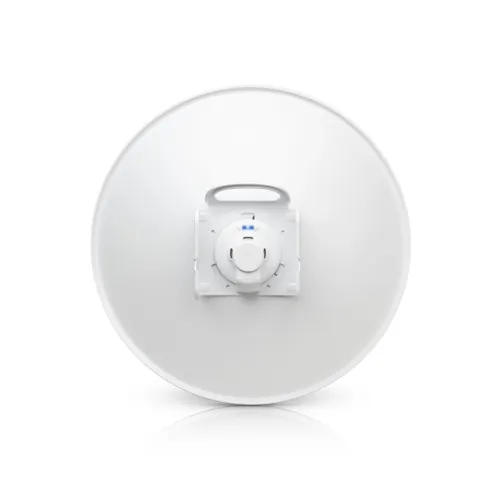

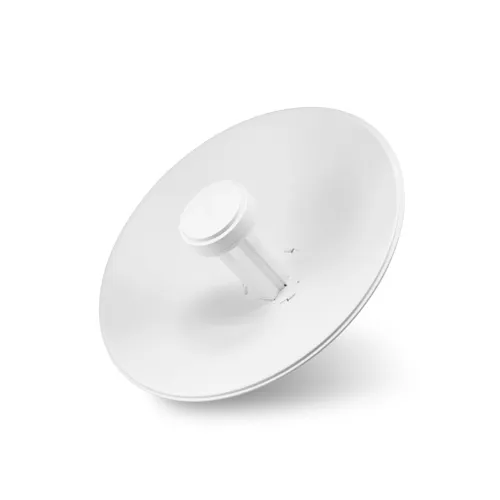

Ubiquiti's InnerFeed technology integrates the radio with the antenna tube, so there is no need for cables to connect the radio with the antenna. This improves performance by eliminating cable losses.
The PowerBeam does not require any tools to mount, only one wrench is needed for the pole.
The shape of the PowerBeam has the highest gain for its size. The excellent orientation of the PowerBeam beam provides the best performance in high noise environments.
Ubiquiti's airMAX technology has proven itself in millions of implementations worldwide, demonstrating exceptional performance in outdoor environments. The TDMA airMAX protocol enables unparalleled scalability, high throughput and low latency in unlicensed, multipoint networks.
The PBE-RAD-400 is a radio shield that protects the radio from the elements and is available as an optional accessory for the PowerBeam PBE-M2-400.
airOS is extremely intuitive and has been designed to require no user training. Behind the user interface there is a powerful, efficient user interface and the firmware architecture enables a efficient, multi-point external network.
Features / filters | |
LAN standard | Fast Ethernet 10/100Mb/s |
Number of LAN ports | 1x 10/100BaseTX (RJ45) |
Operating frequency | 2.4 GHz |
Antenna gain | 11dBi - 20dBi |
CPU frequency | 560 MHz |
Device type | Client device |
RAM memory | 64MB |
Type of device power supply | Passive PoE |
Basic technical parameters | |
Dimensions | 420 × 420 × 420 × 289 mm |
Weight | 1,795 kg |
Power supply | 24 V, 0.5 A PoE |
Maximum electricity consumption | 6W |
Operating frequency | 2405-2475 MHz |
Gain | 18 dBi |
Network interface | (1) 10/100 Ethernet port |
CPU specification | Atheros MIPS 74Kc, 560 MHz |
Memory | 64 MB DDR2, 8 MB Flash |
LEDs | (1) Power supply, (1) LAN, (4) WLAN |
LED signal | Programmable, adjustable to RSSI levels. |
Maximum VSWR | 1.5:1 |
Channel sizes | 5/8/10/20/30/40 MHz |
Polarisation | Dual line |
Case | UV-stabilised plastic |
Mounting | On a pole (kit included) |
Wind load | 278.4 N at 120 km/h |
Wind resistance | 120 km/h |
ESD/EMP protection | air ± 24 kV, contact ± 24 kV |
Operating temperature | -40 to 70° C |
Working humidity | 5 to 95% |
Wireless approvals | FCC, IC, CE |
RoHS compliance | Yes |
Corrosion resistance test | IEC 68-2-11 (ASTM B117), equivalent to: MIL-STD-810 G Method 509.5 |
Vibration test | IEC 68-2-6 |
Temperature shock test | IEC 68-2-14 |
UV test | IEC 68-2-5 at 40° C equivalent: ETS 300 019-1-4 |
Rain test | ETS 300 019-1-4, equivalent to: MIL-STD-810 G Method 506.5 |
1. Make sure that the host system is connected to the PowerBeam via Ethernet.
2. Configure the Ethernet adapter in the host system using a static IP address in the 192.168.1.x subnet.
3. Type the following address https://192.168.1.20 in your web browser
4. A loading screen will show. Put Unbt in the username and password fields. Choose your country and language. In order to use the device you have to agree to the terms of use. Click the Log in button.
5. Choose the size of the PowerBeam Dish
a. Click the Wireless tab
b. Choose the appropraite option from the drop-down menu
c. Click Save and OK
Operating frequency: 2.4 GHz
Operating temperature: -40 to 70° C
