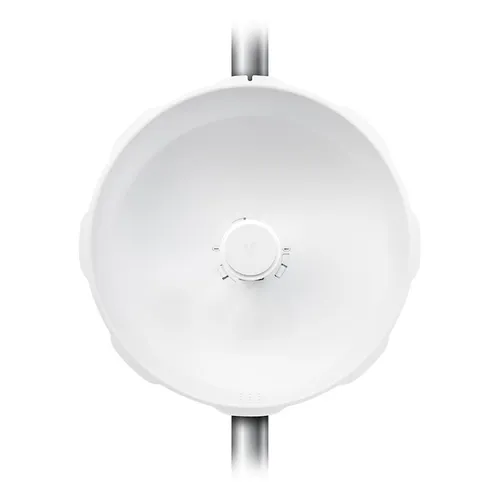

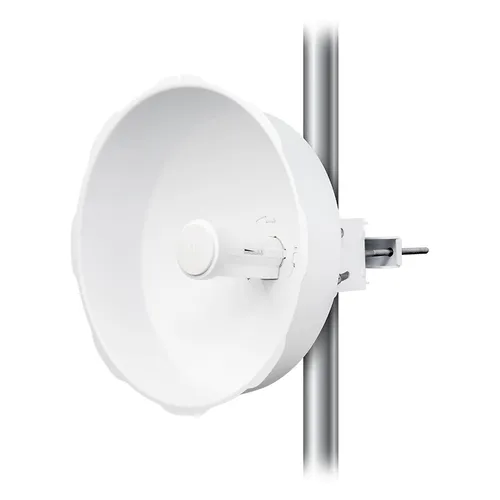

The InnerFeed technology integrates the radio into the antenna, so there is no need for cables, which improves performance by eliminating cable losses. PowerBeam ISO is extremely versatile, providing high performance and innovative design at low cost.
PowerBeam ISO directs the signal energy in a narrower beam width, and its design significantly improves RF isolation and more effectively filters out interference. This is especially important in places with a large accumulation of other radio signals of the same or similar frequency.
Unlike the standard Wi-Fi protocol, Time Division Multiple Access (TDMA) is an AirMax protocol that allows each client to send and receive data using pre-defined time slots scheduled by the intelligent AP controller. The time slot method eliminates hidden node collisions and maximizes antenna time efficiency, so AirMax technology provides enhanced performance, noise immunity and scalability compared to other systems.
airOS is also an advanced operating system built to provide an intuitive user interface.
airView software allows operators to identify noise signatures and analyze frequency usage and activity levels on site, so that new access points can be set up on the least used channels to optimize wireless performance.
airControl software monitors the server network and allows operators to centrally manage entire networks of Ubiquiti devices
Features / filters | |
LAN standard | Fast Ethernet 10/100Mb/s |
Number of LAN ports | 1x 10/100BaseTX (RJ45) |
Operating frequency | 5 GHz |
Antenna gain | 21dBi - 30dBi |
CPU frequency | 560 MHz |
Device type | Client device |
RAM memory | 64MB |
Type of device power supply | Passive PoE |
Basic technical parameters | |
Dimensions | 364 × 364 × 276 mm |
Weight | 2.55 kg |
Power supply | 24 V, 0.5A PoE |
Power supply method | Passive PoE (Pairs 4, 5+; 7, 8 return) |
Supported voltage range | 20-26VDC |
Maximum energy consumption | 6W |
Gain | 22 dBi |
Frequency of operation | 5170 - 5875 MHz |
Wind loading | 210 N @ 200 km/h |
Wind survivability | 200 km/h |
LED lights | (1) Power, (1) LAN, (4) WLAN |
Channel width | 5/8/10/20/30/40 MHz |
Polarisation | Linear Dual |
Installation | Splinter holder included |
ESD/EMP protection | Air ± 24 kV, Contact ± 24 kV |
Operating temperature | -40 to 70° C |
Operating humidity | 5 to 95% |
Test on the horn | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
Vibration resistance | IEC 68-2-6 |
Temperature shock test | IEC 68-2-14 |
UV test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
Rain and wind test | ETS 300 019-1-4, equivalent: MIL-STD-810 G Method 506.5 |
PBE-M5-300-ISO Antenna | |
Profit | 22 dBi |
Maximum VSWR | 1.5:1 |
Built-in mechanical Downtilt | ± 20° |
1. Make sure that your host machine is connected via Ethernet to the device.
2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet.
3. Launch your web browser and type https://192.168.1.20 in the address field. Press enter (PC) or return (Mac).
4. Enter ubnt in the Username and Password fields. Select your Country and Language. You must agree to the Terms of Use to use the product. Click Login.
5. Select the PowerBeam Dish Reflector size:
a. Click the Wireless tab.
b. From the Antenna drop-down list, select the appropriate option.
c. Click Change to save.
d. Click OK to confirm.
