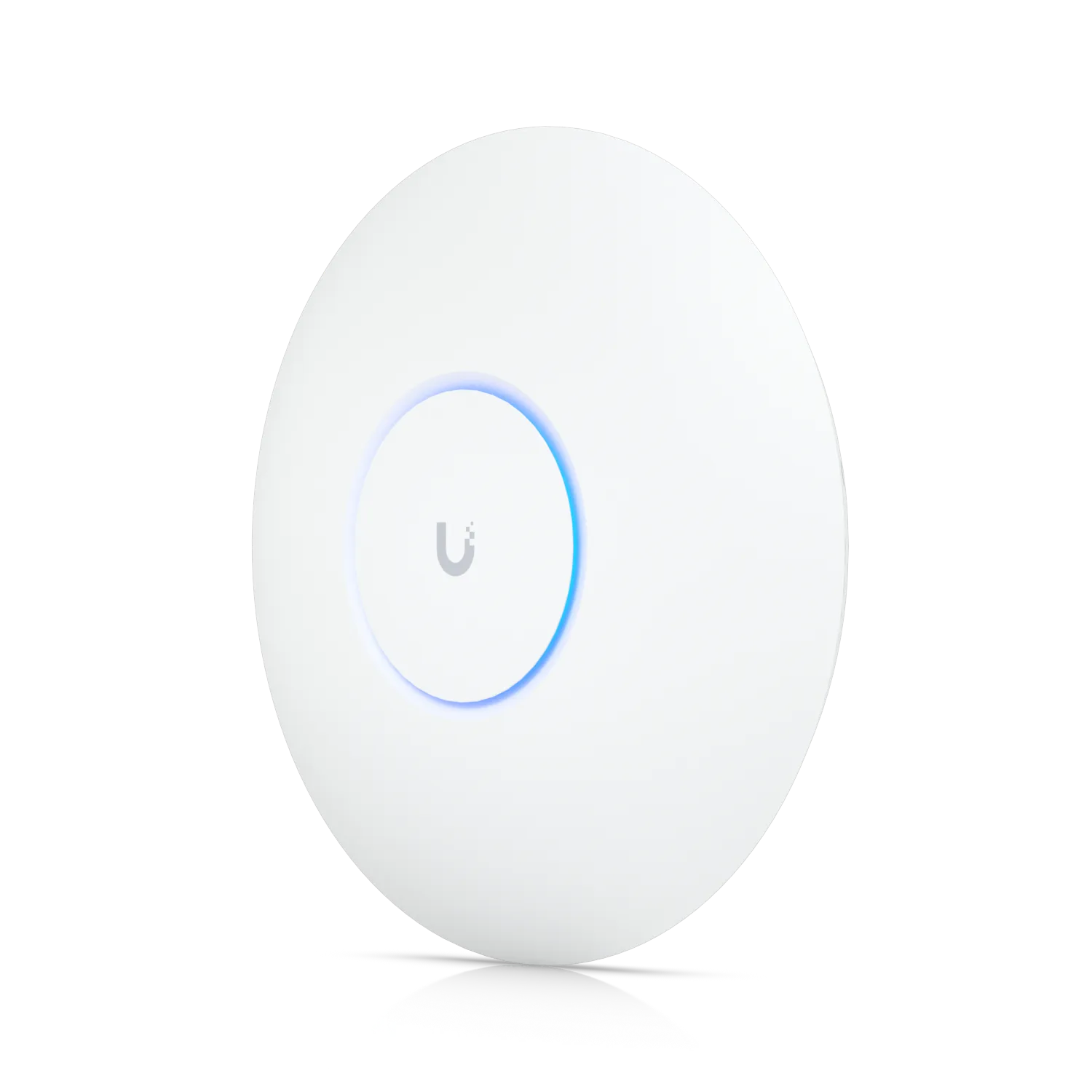

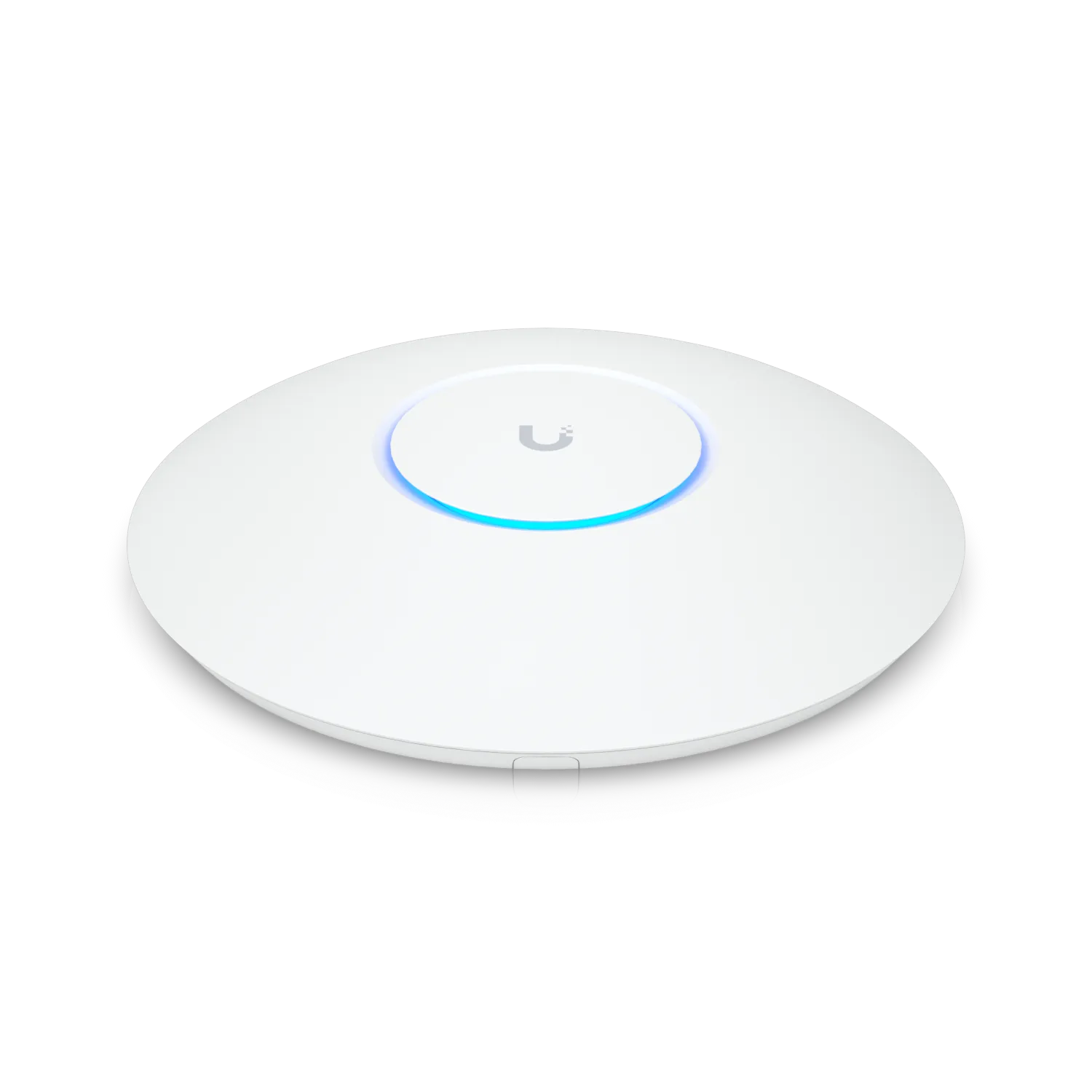

The UniFi6 Pro (U6 Pro) is a powerful dual-band Wi-Fi Access Point 6, ideal for home and office use. The U6 Pro is capable of achieving a combined throughput of up to 5.3 Gbps in the 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MU-MIMO and OFDMA) frequency bands, allowing it to support more than 300 simultaneously connected clients while maintaining a consistent, reliable wireless connection across the network.
To ensure reliable performance in the 2.4 and 5GHz bands, Ubiquiti has equipped the access point with built-in MIMO antennas. The antennas have 4 dBi and 6 dBi gain for the 2.4 and 5 GHz bands, respectively. The new Unifi 6 Pro access point is backward compatible with previous standards. This means there will be no need to replace all devices in the network. In addition, 802.11ac devices paired with Unifi 6 Pro will be able to demonstrate a whole new level of data transfer speeds. In such cases, speeds of up to 3.4 Gbit/s can be achieved, as the channel width increases to 160 MHz.
The U6-PRO access point supports power from 44 to 57 V DC, supplied by PoE over a standard Ethernet cable. A number of features, including guest traffic isolation and WPA3, are responsible for data transmission security.
Features / filters | |
LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
Maximum wireless transmission speed | 5400 Mb/s |
Number of LAN ports | 1x 10/100/1000BaseTX (RJ45) |
Operating frequency | Dual Band (2.4GHz, 5GHz) |
Wireless network standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11n, |
2.4 GHz | Yes |
5 GHz | Yes |
Antenna gain | Under 10dbi |
Antenna gain level (max) | 6 |
Antenna type | Integrated, Internal, |
Application | Indoor |
Bluetooth | Yes |
Certification | CE, FCC, IC |
Depth | 197 |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 1000 |
Harmonized System (HS) code | 85176990 |
Height | 35 |
Housing material | Plastic |
International Protection (IP) code | IP54 |
Maximum data transfer rate | 4800 |
Maximum data transfer rate (2.4 GHz) | 573.5 |
Maximum data transfer rate (5 GHz) | 4800 |
MIMO | Yes |
MIMO type | Multi User MIMO |
MIMO Type | MU-MIMO 2x2, MU-MIMO 4x4, |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at |
Numbers of pieces in the package | 1-pack |
Operating relative humidity (H-H) | 5 - 95 |
Operating temperature (T-T) | -30 - 60 |
Placement | Ceiling, Wall |
Power consumption (typical) | 13 |
Power over Ethernet (PoE) | Yes |
Product colour | White |
Quality of Service (QoS) support | Yes |
Rate limiting | Yes |
Reset button | Yes |
Security algorithms | WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
Throughput data rate | 5300 |
Type of device power supply | PoE 802.3af/at |
VLAN support | Yes |
Weight | 600 |
Width | 197 |
Technical data | |
Dimensions | 197 x 35 mm |
Weight | 460 g (without mount) 600 g (with mount) |
Housing material | Plastic |
Assembly material | SGCC steel |
Degree of protection | IP54 |
Equipment | |
Management interfaces | Ethernet Bluetooth |
Network interface | 1 x GbE RJ45 port |
Button | Factory reset |
LED indicator | White/blue |
Power method | PoE |
Power supply | UniFi PoE switch PoE adapter 48V, 0.5A (not included) |
Supported voltage range | 44-57V DC |
Max power consumption | 13W |
Max. TX power | 2.4 GHz: 22 dBm 5 GHz: 26 dBm |
MIMO | 2.4 GHz: 2 x 2 (UL MU-MIMO) 5 GHz: 4 x 4 (DL/UL MU-MIMO) |
Capacity | 2.4 GHz: 573.5 Mbps 5 GHz: 4.8 Gbps |
Antenna amplification | 2.4 GHz: 4 dBi 5 GHz: 6 dBi |

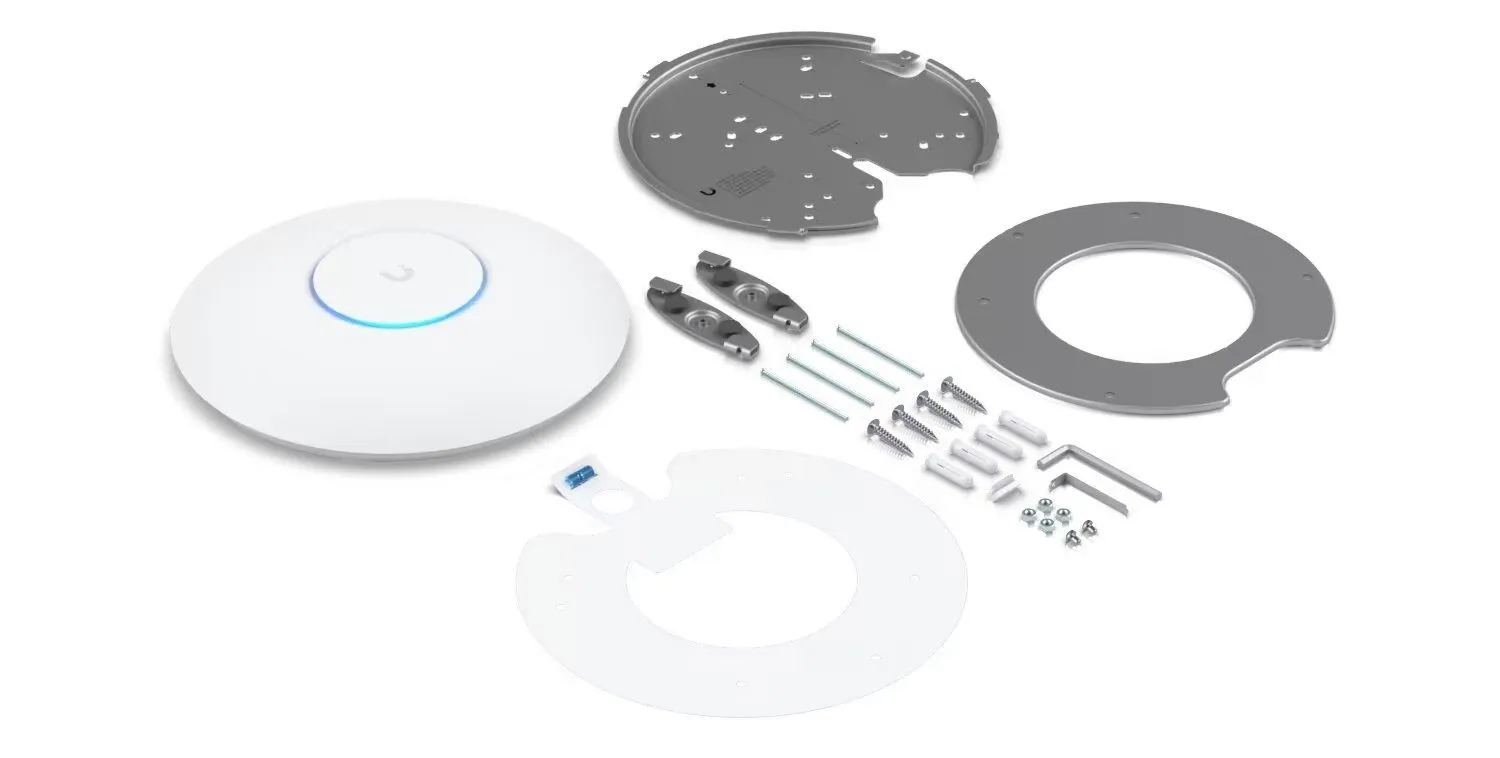

Assembly | Wall/ceiling (included) |
Operating temperature | -30 to 60° C |
Operating humidity | 5 to 95% non-condensing |
Certificates | CE, FCC, IC |
Software | |
WiFi standards | 802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
Wireless network security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
BSSID | 8 per radio |
VLAN | 802.1Q |
Advanced QoS | Speed limitation for each user |
Isolation of visitor traffic | Supported site |
Concurrent customers | 300 |
DFS with zero waiting time | Yes |
Supported data transfer speeds | |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11b | 1, 2, 5.5, 11 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40). |
802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160). |
802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160). |
