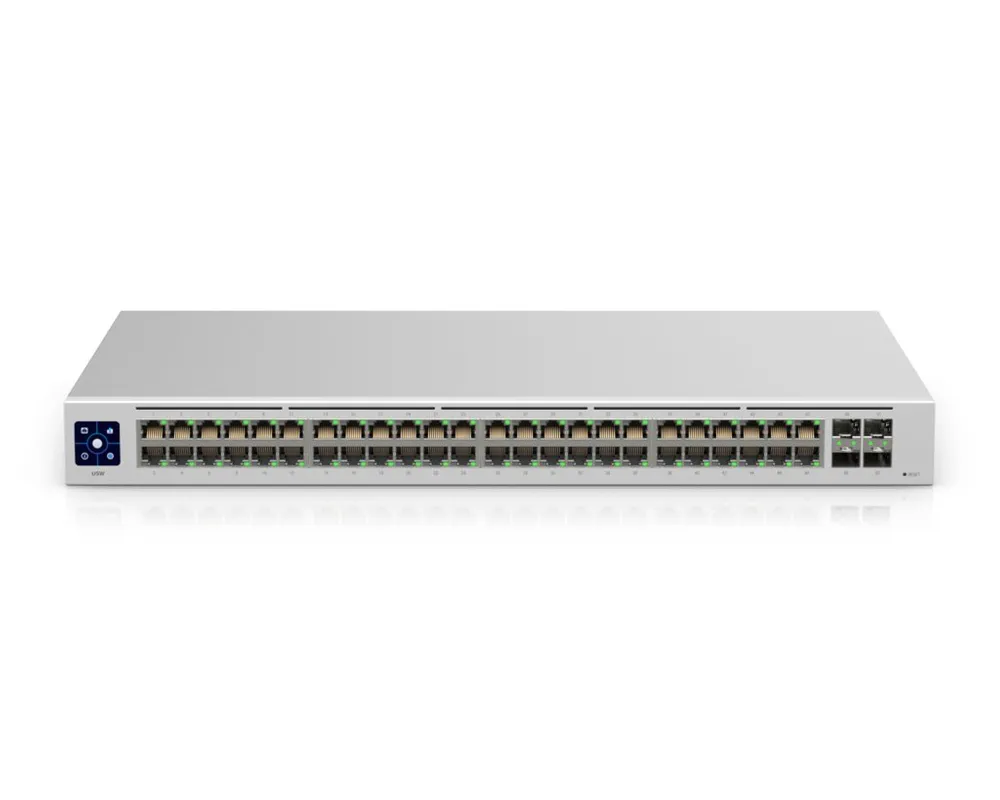

Switch 48 (USW 48) is a fully managed, fanless switch with 48 GbE RJ45 ports and 4 1G SFP ports. The versatile USW 48 provides gigabit connectivity to network devices, as well as gigabit fiber uplink options suitable for the enterprise network.
The switch also offers a rich set of Layer 2 switching protocols, including port-specific modes of operation (switching, mirroring or aggregation), as well as a 1.3-inch color LCM touchscreen that succinctly displays key system and connection information.
The Ubiquiti USW-48 switch can also be monitored or configured from anywhere using the powerful, intuitive UniFi Network web app and mobile app.
|Basic technical parameters|
|Dimensions||442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72").|
|Weight||Without attachment: 3.9 kg (8.6 lb)|
|With handle:||3.99 kg (8.8 lb)|
|Housing characteristics||SGCC steel|
|Total link speed without blocking||52 Gbps|
|Max power consumption||40W|
|Data rate||77,376 Mpps|
|Power method||Universal AC input: 100-240VAC, 50/60 Hz|
|Power supply||AC/DC, internal, 60W|
|Supported voltage range||100 - 240VAC|
|Network interfaces||(48) 10/100/1000 Mbps Ethernet RJ45 ports
(4) 1 Gbps SFP ports
|Management interface||Ethernet In-Band|
|Modes||SMB Layer 2 Gigabit Ethernet Switch|
|Operating temperature||-15 to 40° C (5 to 104° F).|
|Operating humidity||10-90% non-condensing|
|Certificates||CE, FCC, IC|
