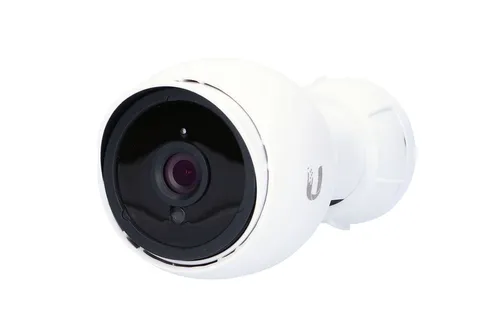

Ubiquiti UVC-G3-AF is a wireless camera with a 3.6mm lens that records in Full HD 1080p resolution. The monitoring system is equipped with a microphone that records sound and LED IR LEDs with automatic IR filter, thanks to which it is able to work both day and night. The device has a flexible three-axis adjustment and is able to work both indoors and outdoors. UVC-G3-AF is a new generation of Ubiquiti monitoring offering an amazing experience and extremely easy operation.
UniFi G3 using a 3.6mm f/1.8 EFL lens for excellent visibility is able to record an image of Full HD 1080 in both daylight and night. In addition, an optional infrared range extension (sold separately) significantly increases the night vision range to 25 m (82 ft). In addition, the device has a motion detection based on the camera, so you can quickly find out if unwanted visitors appear in the square or at home.
The UniFi Video camera offers incredible flexibility and can be quickly mounted on a wall, ceiling or pole. In addition, UVC-G3-AF can be powered via PoE 802.3af or passive PoE 24 V DC.
Mobile application UniFi Video guarantees easy management of the camera. Additionally, we have the possibility of streaming live video with the possibility of viewing it both through a web browser and on smartphones or tablets with the system iOS and Android. Moreover, thanks to the advanced UniFi Video program we can create a map of the distribution of devices, setting the recording of events or viewing statistics.
Hybrid cloud technology combines the best of local and cloud management: secure local storage and convenient remote access.
| Features / filters | |
| Resolution | Full HD 1080p |
| Type of camera | IP |
| Application | Universal |
| Matrix size | 4 Mpix |
| Numbers of pieces in the package | 1-pack |
| Equipment features | |
| Dimensions | Ø 75 x 140 mm |
| Weight | 300 g |
| Case | Polycarbonate, Aluminium |

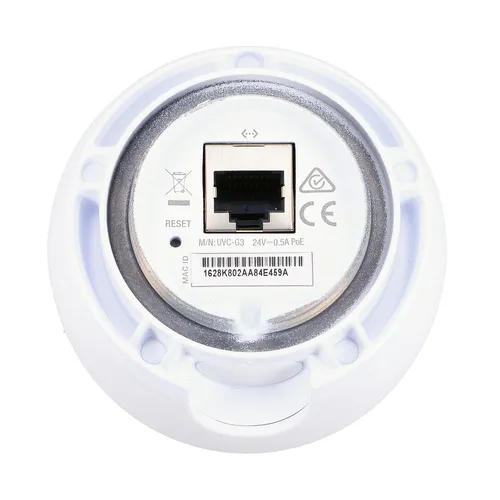

| Network interface | (1) 10/100 Ethernet Port |
| Sensor | 1/3" 4-Megapixel HDR Sensor |
| Lens | EFL 3.6 mm, f/1.8 |
| Night mode | IR LEDs with Mechanical IR Cut Filter |
| Microphone | Yes |
| Buttons | Reset |
| Type of power supply | 802.3af PoE or 24V Passive PoE |

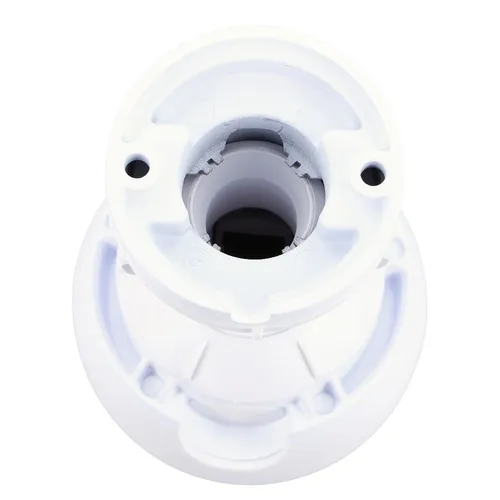

| Installation | Wall/ Ceiling/Post |
| Operating temperature | -20 to 50° C (-4 to 122° F) |
| Humidity during operation | 20 - 90% Non-condensing |
| Video | |
| Video compression | H.264 |
| Resolution | 1080p Full HD (1920x1080) |
| Maximum number of cages | 30 FPS |
| Image settings | Brightness, contrast, sharpness, saturation, noise reduction, 50/60 Hz |
| General | |
| Viewing angle before lens correction | 85° (H), 44.8° (V), 98.1° (D) |
| Viewing angle after lens correction | 72° (H), 42.9° (V), 80.4° (D) |
| Supported UniFi Video version | UniFi Video 3.8 (or higher) |
| System requirements | 64-bit Microsoft Windows 10/8/7, Ubuntu 14.04 or 16.04, or Debian 7.0 System with an Intel or Compatible 1.86 GHz (or Above) Processor and a Minimum of 4 GB RAM |
Operating temperature: -20 to 50° C (-4 to 122° F)
Matrix size: 4 Mpix
Maximum number of cages: 30 FPS
