Ubiquiti UVC-G4-DOME | IP Camera | Unifi Video Camera, 1512P, 24 fps, 1x RJ45 1000Mb/s

CODE: UVC-G4-DOME / EAN: 0810010073013

Ubiquiti UVC-G4-DOME | IP Camera | Unifi Video Camera, 1512P, 24 fps, 1x RJ45 1000Mb/s

CODE: UVC-G4-DOME / EAN: 0810010073013
233,15 GBP without VAT (net)
Number of LAN ports: 1x 10/100/1000BaseTX (RJ45)
Resolution: 1512p
Type of camera: IP
Application: Indoor
Show more parameters

About product

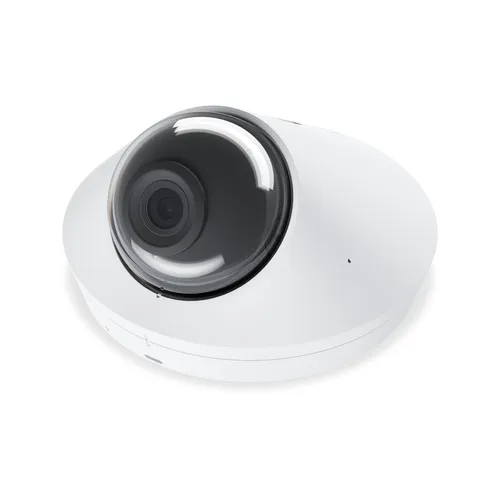

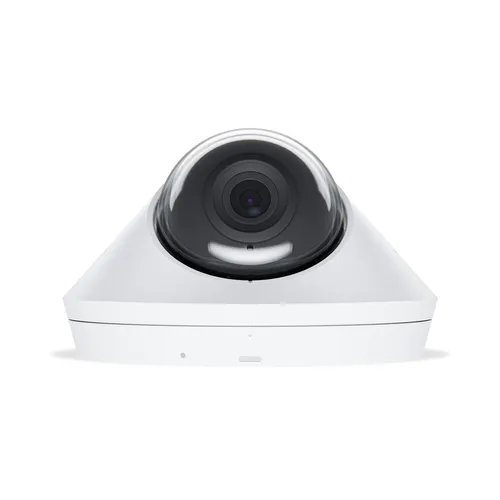

UniFi Protect G4 Dome Camera

UniFiProtect G4 D ome Camera is a new surveillance dome camera that has received many improvements. UniFi Protect G4 Dome is a versatile camera designed for installation in video surveillance systems in offices, warehouses, residential premises, educational institutions. The compact, four-megapixel UniFi Protect G4 Dome provides clearer images than the previously available UniFi Protect G3 Dome, which was limited to a maximum resolution of Full HD (1080p).


High quality video, even in the dark

High-quality video recordings from the UniFi Protect G4 Dome are extremely detailed in daylight and low-light conditions, and every detail is clearly visible even in the dark thanks to integrated infrared LED lighting. Television frame rate makes surveillance footage comfortable to the human eye, with no stuttering or "slideshow" effect, even with a rapidly changing scene in the frame. Motion detection adds the ability to configure scenarios to automatically process events in the frame. Compared to the UniFi Protect G3, the UniFi Protect G4 dome camera image is softer but has a wider dynamic range, with much better detail in shadows.


High-quality wide-angle lens and PoE power supply

The wide angle lens with large field of view provides higher quality images than the previous model. Only one Ethernet cable is required to connect the UniFi Protect G4 Dome, 802.3af PoE power to the camera is provided along with the video stream. The camera housing has also been updated to protect the UniFi Protect G4 Dome from environmental influences, it is made of metal and is more compact than the UniFi Protect G3 Dome.


Good protection and easy handling

The vandal resistant housing of the UniFi Protect G4 Dome can withstand an impact energy of 5 joules and is splash resistant (IPx4). The microphone and speaker are installed inside the UniFi Protect G4 Dome housing. The UniFi Protect G4 Dome requires the UniFI Protect software to fully access its features, so it is recommended to use the camera in conjunction with UniFi Dream Machine Pro, UniFi Protect Network Video Recorder or UniFi Cloud Key Plus.


Specification

Features / filters
Number of LAN ports 1x 10/100/1000BaseTX (RJ45)
Resolution 1512p
Type of camera IP
Application Indoor
Built-in HDD No
Built-in speaker(s) Yes
Connectivity technology Wired
Diameter 10.9
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Form factor Dome
Harmonized System (HS) code 85258900
Height 64.5
IK code IK08
International Protection (IP) code IPX4
IP Rating IPX4
LED indicators Yes
Matrix size 5 Mpix
Maximum resolution 2688 x 1512
Mounting type Ceiling
Night vision Yes
Number of cameras 1
Number of sensors 5
Numbers of pieces in the package 1-pack
Operating relative humidity (H-H) 0 - 90
Operating temperature (T-T) -20 - 40
Placement supported Indoor & outdoor
Power consumption (max) 5
Power source type DC, PoE
Product colour White
Sensor type CMOS
Total megapixels 5
Type IP security camera
Type of device power supply PoE 802.3af
Video formats supported H.264
Weatherproof Yes
Weight 370
Weight (with stand) 390

Mechanical specifications
Dimensions Ø109.2 x 64.5 mm (Ø4.3 x 2.5")
Weight without attachment 370 g (13.05 oz)
Weight with mount: 390 g (13.76 oz)
Housing material Aluminium alloy, polycarbonate, hard coated dome
Assembly materials Polycarbonate, stainless steel
Weather resistance IPX4
Resistance IK08
Optical system
Sensor 5 MP CMOS
Lens Fixed focal length
Viewing angle H: 86°, V: 60°, D: 111°
Night mode Built-in light sensor
Built-in light sensor IR LED illumination and IR filter
Video
Video compression H.264
Resolution 2688 x 1512 (16:9)
Maximum refresh rate 24 FPS
Image settings Brightness, contrast, sharpness, saturation, noise reduction, 50/60 Hz
System
Processor Specifications Ambarella Advanced Imaging SoC
Memory information 512 MB
Management interface UniFi Protect
Network interface RJ45, 10/100/1000 Mbps Ethernet
Memory support Flash 256 MB
Max. power consumption 5W
Power supply method 802.3af PoE, 44-57VDC, 0.114-0.088A
Supported voltage range 44-57VDC
Link/Activity LED Yes
Button Factory reset
Operating temperature -20 to 40° C (-4 to 104° F)
Operating humidity 0 to 90% non-condensing
Certificates FCC, IC, CE
Audio
Microphone Yes (can be disabled in software)
Speaker Yes
Software
Controller software UniFi Protect
Mobile applications UniFi Protect iOS and Android

Support

Downloads:

Datasheet: Download
Quick Installation Guide Download

Faq

Is there a PoE power supply included?

Yes

What is the maximum frame rate?

Maximum frame rate: 24 FPS

How can the ambient temperature be?

Ambient temperature range -20 to 40° C (-4 to 104° F)
