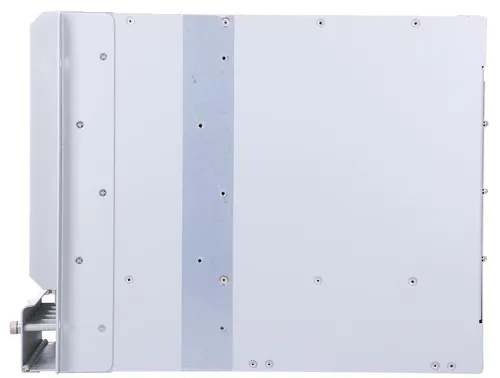

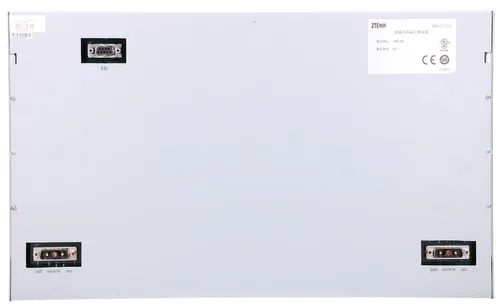

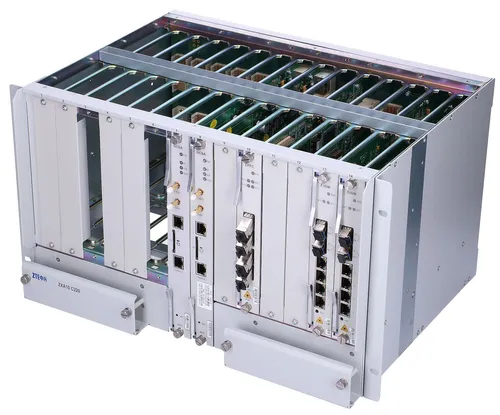

ZTE C220 | OLT | GPON, 2x EIG, 2x GCSA, 1x EPFC
CODE: ZTE C220 OLT V5
Contact
Account
Favorite
Cart
The ZTE C220 platform provides uniform FTTx network access to a wide range of applications such as VoIP, IPTV, Internet and many more, along with QoS capabilities for stable and secure network operation.
The way the expansion cards are mounted in C220 provides quick access and the batch configuration will make it unnecessary to carry out ONT side configurations. ONT's signal tracking support and performance monitor will help you locate network faults efficiently.
Monitoring of transmission status in the C220 platform and detection of inactivity will switch the optical module into power saving mode. This will help to reduce platform operating costs.

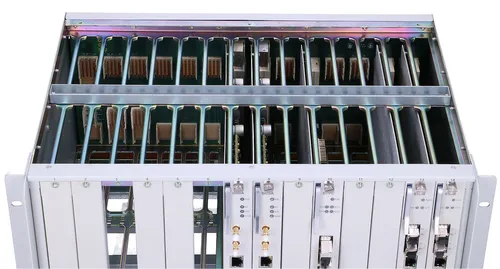

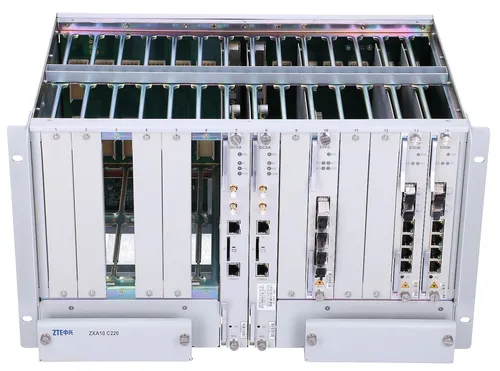

Prezentowana platforma ZTE C220 posiada następujące karty rozszerzeń:
2 x Karta EIG
2 x Karta GCSA
1 x Karta EPFC

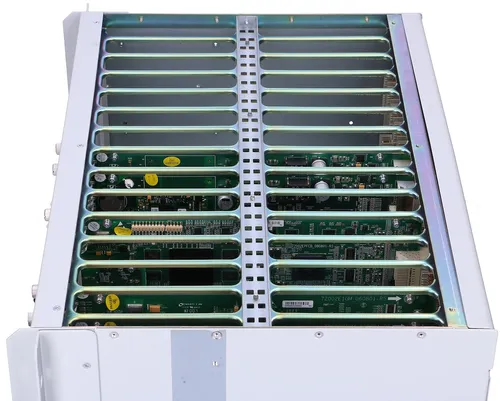

Thanks to the large number of expansion card slots, the C220 platform can be freely adapted with modules to create the required network layout. Operation in the selected application will be even more efficient with the technologies used in extension cards.
| Wavelengths | Reception (RX): 1310 Dispatch (TX): 1490 |
| Optical power | From 2 to 7 dBm |
| Sensitivity of reception | -27 dBm |
| Maximum range | 20 km |
| Maximum partition coefficient | 1:32 |
| Capacity | 8 x PON 256 x ONU |
| MAC | 8K per single OLT card 16K for the whole platform |
| Shipment port | 8 x Port 10/100/1000 Ethernet RJ-45 |
| PON Port | 8 x SC optical port |
| Control port | RJ45 / RS232 for debugging the device |
| MTBF | 100,000 hours |
| Protocols supported | Support for IEEE802.3, IEEE802.3u, IEEE802.3ab Support for IEEE802.Q VLAN IEEE802.1P QoS support |
| Protocols supported | Support for SNMP-based GUI management Support for local serial management interface and Telnet GUI based on CLI |
| Other functions | Support of IGMPv1/v2 protocol report, checking and leaving messages DHCP Snooping support Support for IPv4 recognition based on DHCP Snooping ARP Snooping, QoS support |
| GEON features | IEEE802.3ah support DBA support with a minimum transfer rate of 1 Kb/s with adjustable grain size Support for symmetrical 1 Gb/s upload and download link Support AES-128 encryption on each logical link identifier Support for OAM functions, Implementation of telnet management, Management and updating |
| Expansion card specifications | 2 x EIG 2 x GCSA 1 x EPFC |
A maximum of ZTE C220 platform can be fitted with 14 expansion cards.
