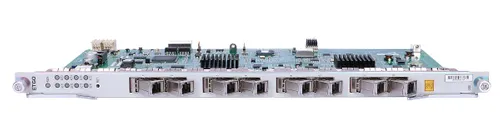

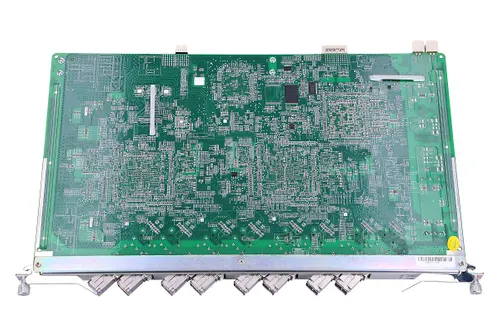

ZTE ETGO Ver. D | EPON Card | dedicated for C300
CODE: ZTE CARD ETGO VER.D / EAN: 5905090332336
Contact
Account
Favorite
Cart
The EPON ETGO subscriber card offers 8 EPON connectors with a 1:64 split ratio.
GPON OLT ZTE ETGO ver.D expansion card, together with ONU, allows to build a network with high availability.
Supported maximum distance between two ONUs is 20 km, which makes network building easier.
Intelligent management channel makes it easy to control the ZTE ETGO card. Real-time detection of unwanted ONUs and their isolation, variable OMCI length, detection of faulty connection and fast fault finding are the guarantee of stable operation and the possibility of expanding the network without interruption.
| Product specification ZTE ETGO | |
| Brand | ZTE |
| Model | ETGO Ver.D |
| GPON port | 8-Port EPON |
| Operational wavelength | Tx: 1490 nm Rx: 1310 nm |
| Type of encapsulation | PX20 |
| Port speed | Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s |
| Optical Connector Type | SC/PC |
| Fiber optic type | Single mode |
| Reach | 20.00 km |
| Extinction coefficient | 8.2 dB |
| Additional parameters | Received signal strength detection and indication (RSSI) and controlled optical signal transmission in the module ONU-based shaping Optical Performance Monitoring (OPM) Automatic shutdown when high temperature is reached FEC download/send support IPv6 Detection of unwanted ONTs ONU CAR Access support - up to 512 users Jumbo frames: 9,216 Level 4 QoS |
| Weight | 1 kg |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
ZTE ETGO card is designed for ZTE OLT C300 platform.
