The ZTE F412 terminal provides high-quality "triple-play" services, including IPTV, VoIP and high-speed Internet access.
ZTE F412 is an energy-efficient compact size device in a minimalist style. TR069 and OAM protocols allow remote management and diagnostics, which reduces maintenance costs.
The EPON optical port on the F412 terminal allows you to maintain a high-speed connection to the Internet.

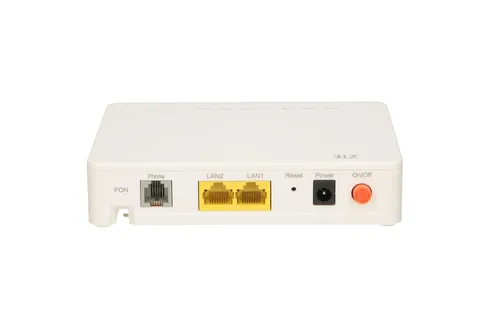

A Gigabit Ethernet connector and a Fast Ethernet connector allow you to connect devices to the network via cable, which is a guarantee of a stable and efficient connection.
Additionally, a POTS RJ-11 connector allows the ZTE F412 terminal to make phone calls.
Features / filters | |
Number of LAN ports | 1x 10/100/1000BaseTX (RJ45), 1x 10/100BaseTX (RJ45), |
PON standard | EPON |
VoIP ports | 1x POTS |
Basic technical data | |
Manufacturer | ZTE |
Model | ZXHN F412 |
EPON interface | 1 x EPON SC/UPC Transmission speed: - Upload: 1.244 Gb/s - Download: 2.448 Gb/s Wavelength: - Transmission: 1290-1330 nm - Receive: 1480-1500 nm Sensitivity: -28 dBm |
Other interfaces | 1 x Gigabit Ethernet port 1 x Fast Ethernet port 1 x POTS (RJ-11) |
Operating modes | Bridge Router |
Working conditions | Temperature: 0°C to 40°C Humidity: 5% to 95% |
GPON features | 8 x T-CONT 32 x GEM port |
Network characteristics | VLAN (802.1Q, 802.1P, 802.1ad) Multicast QoS DHCP server/client NAT Dual stack IPv6 |
Management | Local via Web OMCI TR069 |
Power supply | Input voltage: 12 V DC Maximum power consumption: up to 6 W |
The Gigabit Ethernet standard supported by one Gigabit Ethernet port on the ZTE F412 terminal allows you to connect a wired device to the network and transmit data at speeds up to 1 Gbps.
