MikroTik cAP ac | Access point | RBcAPGi-5acD2nD, Dual Band, 2x RJ45 1000Mb/s

EAN: 4752224003416

Reference: RBCAPGI-5ACD2ND

288.42 zł gross gross / meter 234,49 zł netto gross / piece

Availability No product

Payments methods

przelewy.jpg google-pay.jpg apple-pay.jpg mastercard.jpg visa.jpg blik.jpg mbank.jpg paypo.jpg payu.jpg

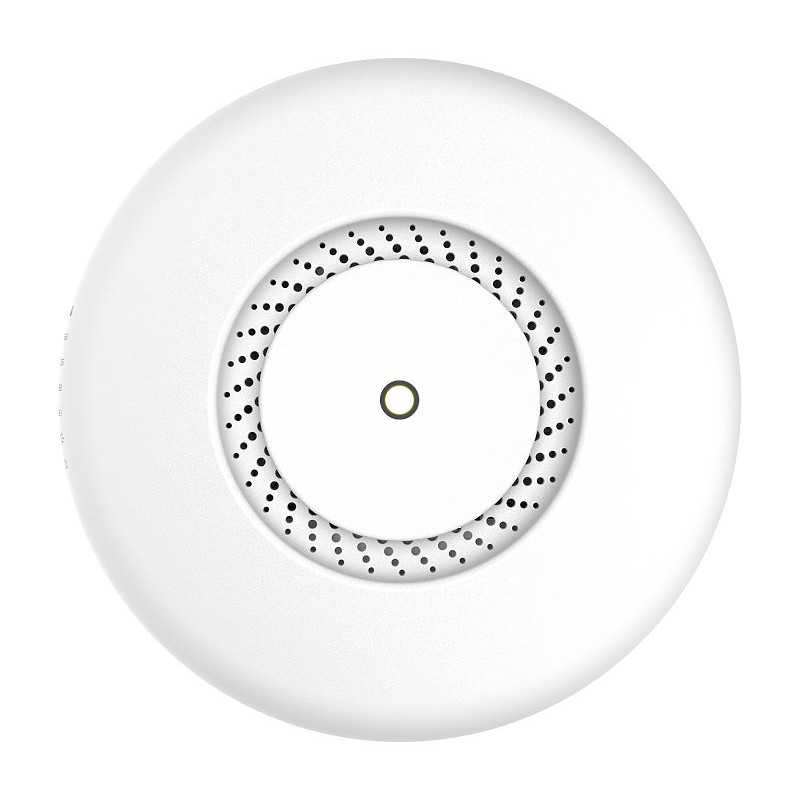

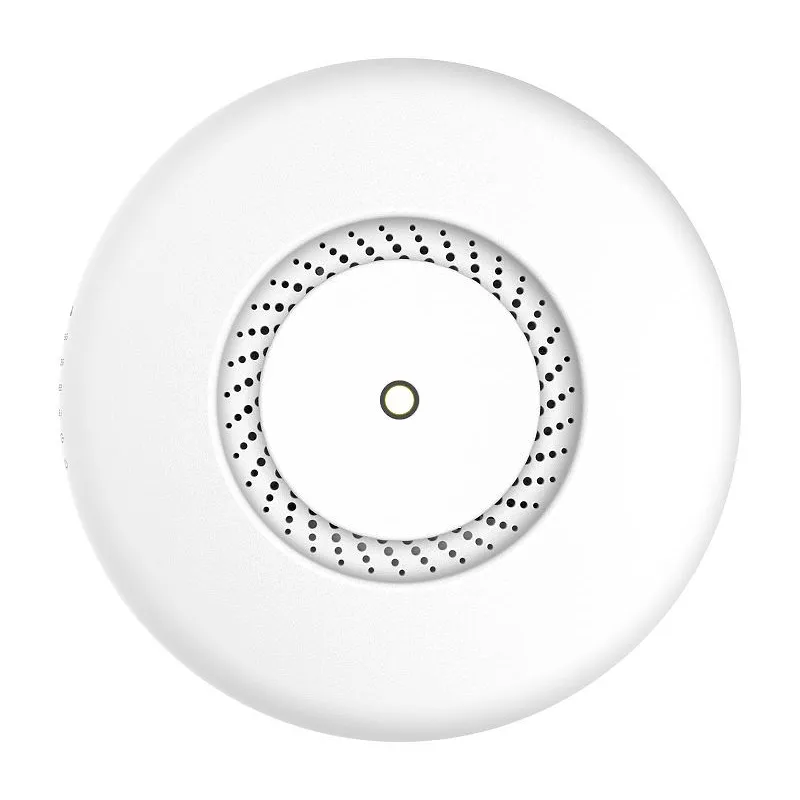

Mikrotik RBcAPGi 5acD2nD Access Point - wireless access point

Mikrotik RBcAPGi 5acD2nD CAP Capsman AC is a very efficient wireless AP access point for indoor applications. Its aesthetic and original design makes it look beautiful on both walls and ceilings. It has a two-band wireless radio connection, which supports two frequency bands: 2 GHz and 5 GHz, in 802.11ac and older. It provides a 360 degree range. The device is equipped with Mikrotik RouterOS Level 4 license operating system.

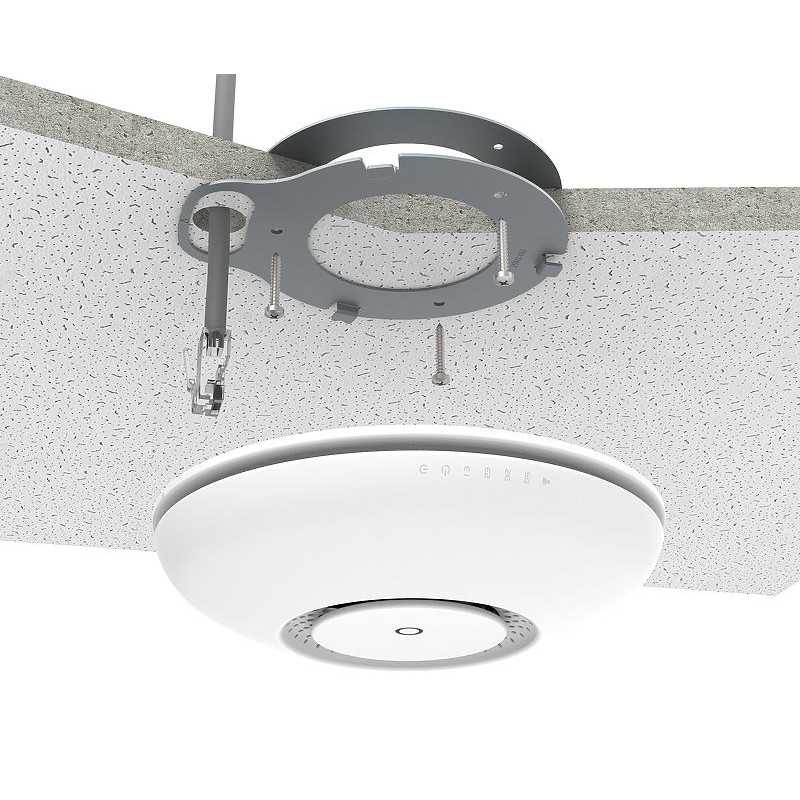

Microtik RBcAPGi 5acD2nD CAP Capsman, AP access point, wall or ceiling mounted,

Extendability of the network

When the radio supports repeater mode, the two Ethernet ports give you the ability to expand your network with cables even if a PoE power supply is required, because cAP ac supports 802.3af/at PoE input on the first port and passive PoE output on the second port. The device also provides support for IPsec hardware acceleration.

Radio module , MIKROTIK CAP AC RBCAPGI-5ACD2ND ACCESS POINT

The cAP ac frequency range

The MikroTik cAP ac (international) wireless access point supports the 2412-2484 MHz and 5150-5875 MHz bands. The specific frequency range may be limited by national regulations.

MICROTIK CAP AC RBCAPGI-5ACD2ND ACCESS POINT

Main features:

  • Operating temperature from -40°C to 50°C
  • 2.4 GHz and 5 GHz wireless network
  • Number of processor cores 4
Regulatory Approvals CE, FCC, IC, EAC, ROHS
Height 136 mm
Output voltage 57 V
Antenna type Internal
LED indicators Yes
Receiver sensitivity 2.4GHz: 1/11/6/54Mbps: -100/-94/-96/-78dBm @26/26/26/23dBm Tx; MCS0/7: -96/-73dBm @26/22dBm Tx
5GHz: 6/54Mbps: -96/-80dBm @26/21dBm Tx; MCS0/7/9: -96/-75/-70dBm @26/20/18dBm Tx
Width 136 mm
Depth 30 mm
Mounting kit Yes
Maximum data transfer rate 867 Mb/s
Power consumption (max) 13 W
Harmonized System (HS) code 85176990
Networking standards IEEE 802.11a
Ethernet LAN (RJ-45) ports 2
Antenna gain level (max) 2.5 gain
DC voltage range 17 V
Flash memory 16 MB
Operating temperature (T-T) -40 - 50 °C
AC adapter included Yes
Processor frequency 716 MHz
Operating system installed RouterOS
Power over Ethernet (PoE) Yes
Internal memory 128 MB
PoE adapter included Yes
Placement Ceiling
Processor model IPQ4018
Built-in processor Yes
Power over Ethernet (PoE) type supported Active PoE
Antennas quantity 4
Antenna features Integrated antenna
Product colour White
Maximum data transfer rate (5 GHz) 867 Mb/s
Maximum data transfer rate (2.4 GHz) 300
Internal No
5 GHz Yes
2.4 GHz Yes
