Aerial flat fiber optic cable 1F | S-NOTKSP, single mode, 1J, G.657A1, 0,6kN, 5,2mm | Fiberhome

Fiber optic overhead cable 1F S-NOTKSP

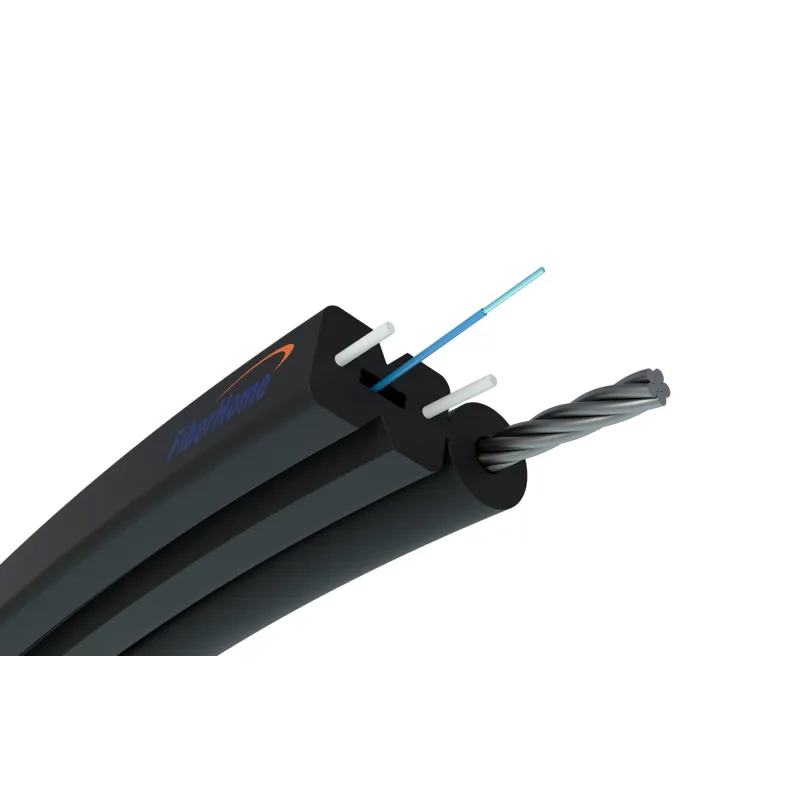

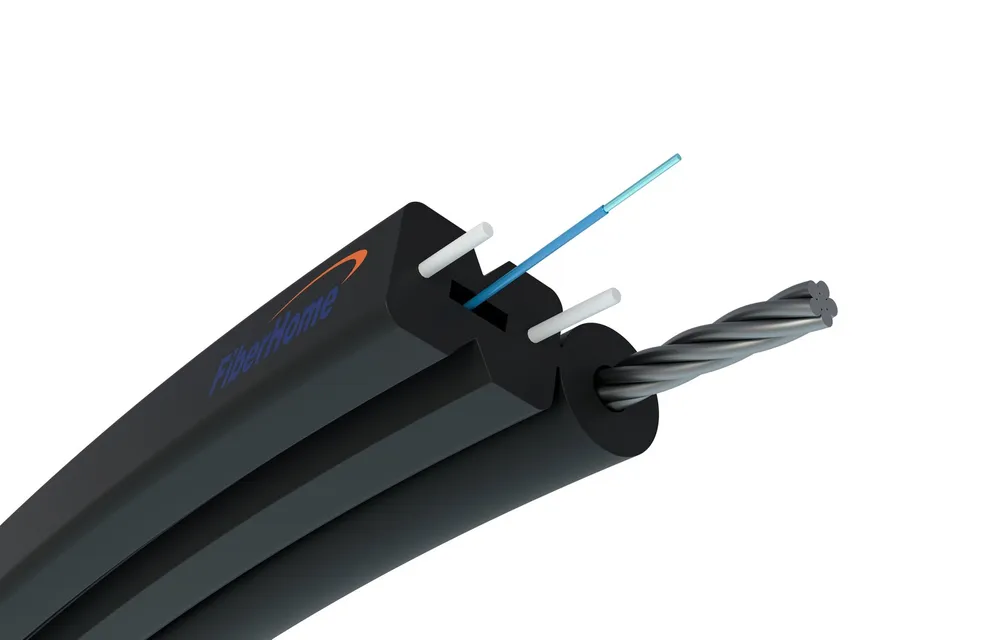

The 1F S-NOTKSP overhead fiber optic cable is a fiber optic cable designed mainly for overhead installations for use in short distances. It is constructed using one G.657A1 fibre, directly in the sheath. Two aramid yarn FRP rods embedded in the outer sheath are a reinforcing element, providing the required tensile strength of the cable.

The supporting element is a steel rod. The external LSZH sheath which protects the cable against external aggressions is UV resistant and halogen free.

Key features

Key features

• G.657A1 fibre
• Tensile strength 600 N
• Outer sheath LSZH
• Two FRP reinforcing bars
• Diameter ~ 5.2 mm (± 5%) * (2.0 mm * 3.0 mm (± 5%))
• Flat cable
