Aerial flat fiber optic cable 4F | S-NOTKSP, single mode, 4J, G.657A1, 0,6kN, 5,2mm | Fiberhome

Fiber optic overhead cable 4F S-NOTKSP

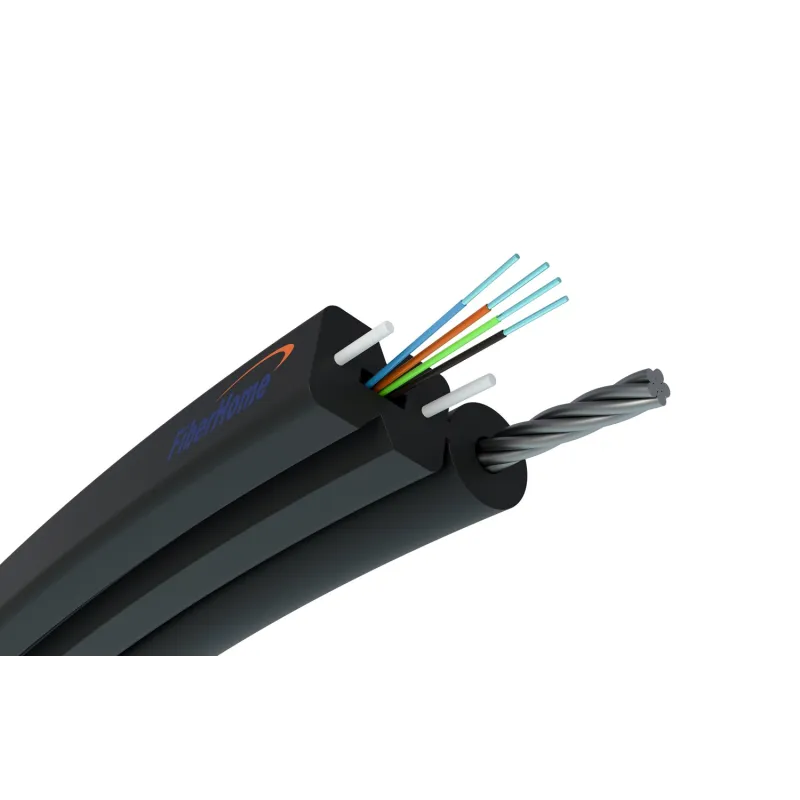

The 4F S-NOTKSP overhead fiber optic cable is a fiber optic cable designed primarily for overhead installations for use over short distances. It is constructed using 4 G.657A1 fibers, directly in the sheath. Two aramid yarn FRP rods embedded in outer jacket are reinforcing element which provides required cable tensile strength.

The supporting element is a steel rod. The external LSZH sheath which protects the cable against external aggressions is UV resistant and halogen free.

Key features

• G.657A1 fibre
• Tensile strength 600 N
• Outer sheath LSZH
• Two FRP reinforcing bars
• Diameter ~ 5.2 mm (± 5%) * (2.0 mm * 3.0 mm (± 5%))
• Flat cable
