Direct buried fiber optic cable 12F | DAC Z-XOTKTCD, single mode, 12J, G652D, 1,2kN, 5.3mm | Fiberhome

FIBERHOME 12J DAC - DIRECT BURIED CABLE, fiber G652D

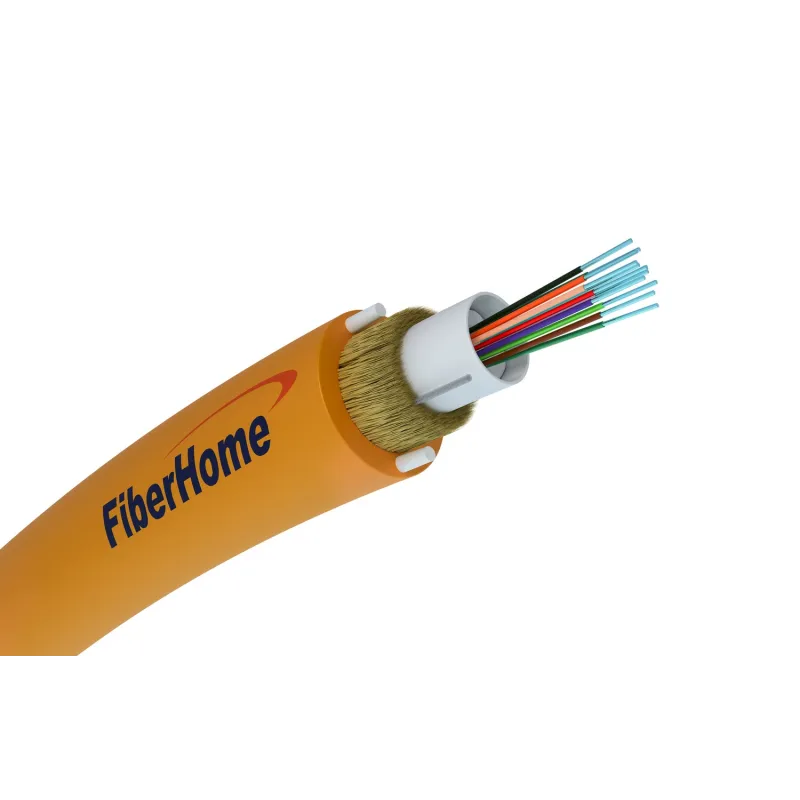

DAC fiber optic cable is designed for direct burial in the ground. Single mode fibers were used for its construction. G652D fiber has been placed in the central tube. Two FRP rods made of aramid yarn are reinforcing elements providing required pulling force. Outer HDPE sheath protects cable from external environment.

In comparison with ordinary aramid cables, the presented cable is distinguished by thicker FRP rods and thicker outer sheath.

Key features

• Fiber type - single mode sm G652D fibers
• Tensile strength - 1.2 kN
• 1.2 mm thick HDPE outer shell
• Reinforcing elements - two 0.8 mm diameter FRP rods
• Cable diameter - 5.3 mm
• Number of fibers - 2
