2F DAC Z-XOTKTCD fiber optic cable

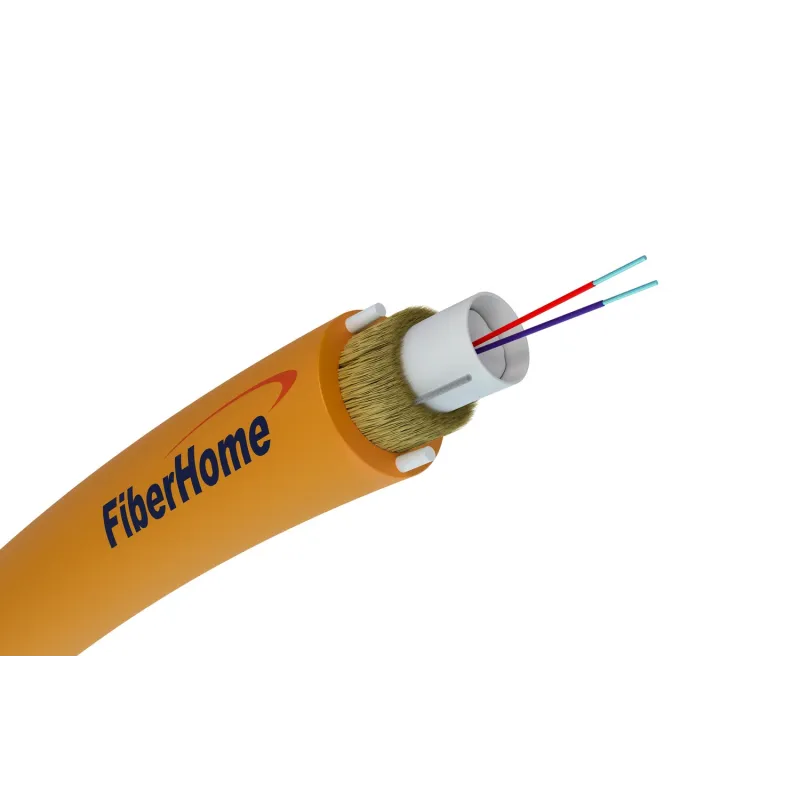

The 2F DAC Z-XOTKTCD terrestrial fiber optic cable is a direct buried fiber optic cable. For its construction 2 fibers type G.652D are used which are placed in the central tube. Strengthening element, besides peripheral strength elements, are two FRP rods from aramid yarn embedded in outer jacket, which provide required cable tensile strength. The HDPE outer sheath protects the cable from the external environment.

Compared to ordinary aramid cables, it has thicker FRP rods and a thicker outer sheath.

Key features

• Fibre G.652.D
• Tensile strength 1,2 kN
• 1.2 mm thick HDPE outer shell
• Two 0,8 mm diameter FRP reinforcing rods
• Diameter 5.3 mm
