Direct buried fiber optic cable 8F | DAC Z-XOTKTCD, single mode, 8J, G652D, 1,2kN, 5.3mm | Fiberhome

8F DAC Z-XOTKTCD fiber optic cable

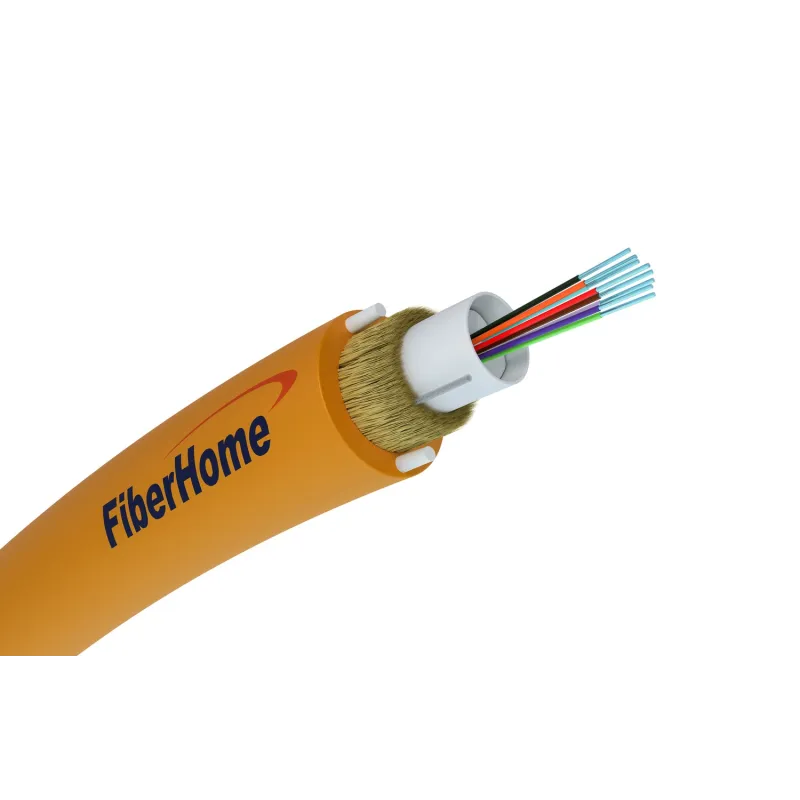

8F DAC Z-XOTKTCD fibre optic cable is a buried fibre optic cable designed for direct underground installation. For its construction 8 G.652D fibers are used which are placed in the central tube. Strengthening element, in addition to perimeter strength elements, are two FRP rods from aramid yarn embedded in outer jacket, which provide required cable tensile strength. The HDPE outer sheath protects the cable from the external environment.

Compared to ordinary aramid cables, it has thicker FRP rods and a thicker outer sheath.

Key features

• Fibre G.652.D
• Tensile strength 1,2 kN
• 1.2 mm thick HDPE outer shell
• Two 0,8 mm diameter FRP reinforcing rods
• Diameter 5.3 mm
