Fiberhome XOTKtsdD 12F | Fiber optic cable | ADSS, 2,7kN FRP, 12J, G652D, 10,2mm, aerial

Overhead fiber optic cable ADSS 12F

Extralink SM Aerial Cable is an overhead fiber optic cable. It is constructed with 12 G.652D fibers placed in 1 loose tube twisted around a central FRP rod, which is the reinforcing element. Cable is covered with HDPE sheath.

Key features

• G.652D fibre
• 1 loose tube + 5 fillers
• Outer sheath HDPE
• FRP reinforcing rod
• Tensile strength 2,7 kN
• Diameter 10.2 mm
• For overhead installations

Overhead fiber optic cable - high resistance to harsh environmental conditions

Self-supporting optical fiber is characterized by resistance to severe weather conditions and temperature differences. Its construction is reinforced by fiber reinforced plastic (FRP). Outer sheath made of polyethylene is resistant to solar radiation.

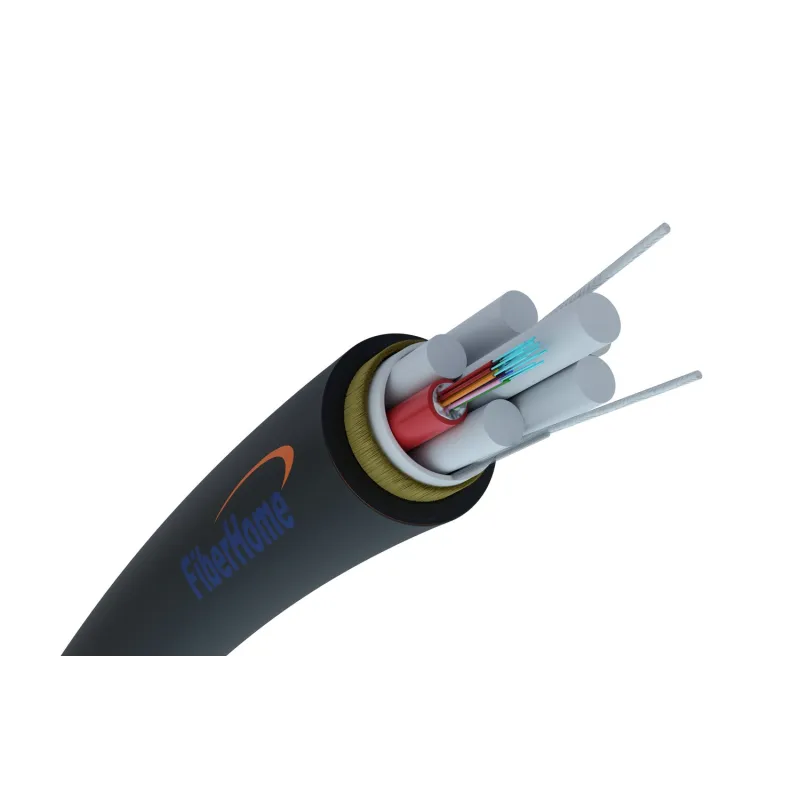

Cable structure

• Robust FRP centre piece
• Optical fibres ITU-T G.652D
• Loose tubes filled with gel
• Filler element made of low-density polyethylene
• Fastening winding made of synthetic yarn and bands
• Durable peripheral element - glass fibre yarn
• Outer jacket - black medium density polyethylene
