Fiberhome XOTKtsdD 24F | Fiber optic cable | ADSS, 4kN FRP, 24J, G652D, 10,8mm, aerial

FiberHome ADSS 24J overhead fiber optic cable - G.652D fiber, 4000N

Fiberhome Unitube SM G.652D is an overhead fiber optic cable. It uses 24 single mode G.652D optical fibers. The fibers are placed in a loose tube twisted around a centrally located FRP rod, which is the reinforcing element. Cable is covered with HDPE sheath .

Key features

• Fiber type - single-mode G.652D
• Number of fibers - 24 fibers
• 2 loose tubes + 4 fillers
• Outer shell - HDPE (high density polyethylene)
• FRP (fiber reinforced plastic) reinforcing bar
• Pulling force - 4000 N
• Cable diameter - 10.8 mm
• Application - Overhead installations

Overhead fiber optic cables - high resistance to harsh environmental conditions

Self-supporting fiber optic cables are characterized by high resistance to severe weather conditions and large temperature differences. Their construction is reinforced by fiber reinforced plastic (FRP) and the outer sheath is made of solar resistant polyethylene.

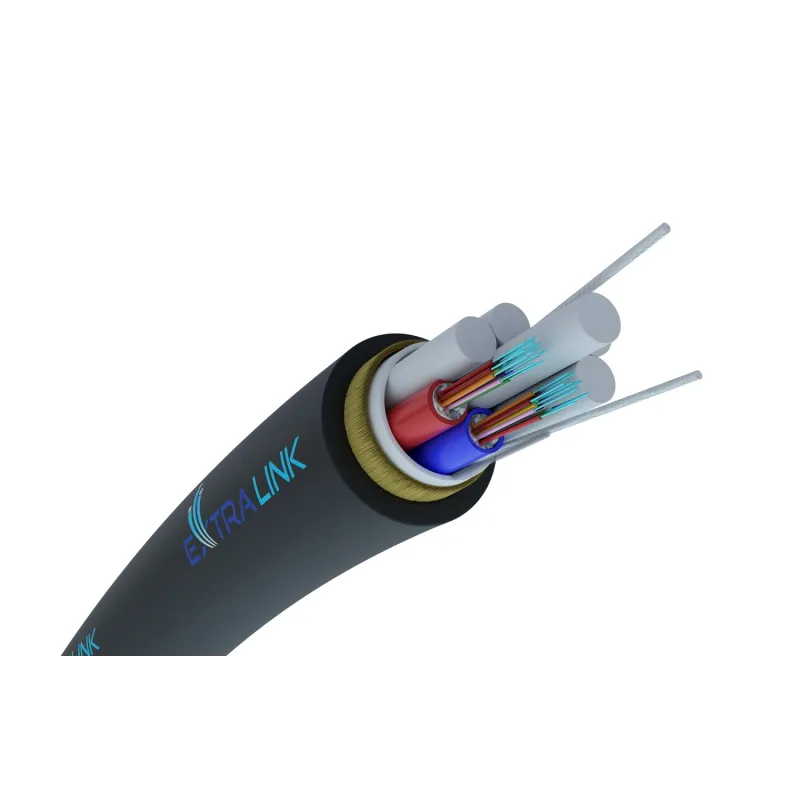

Cable structure

• Number of fibers - 24 fibers
• Loose tubes filled with gel
• Filler - low density polyethylene
• Fastening windings - synthetic yarns and tapes
• Durable perimeter element - glass fiber yarn
• Outer jacket - black medium density polyethylene
