Mantar RSZ-125/18/6 | Outdoor cabinet | FTTH 15J, depth 60 mm

Mantar outdoor cabinet RSZ-125/18/6 - FTTH 15J

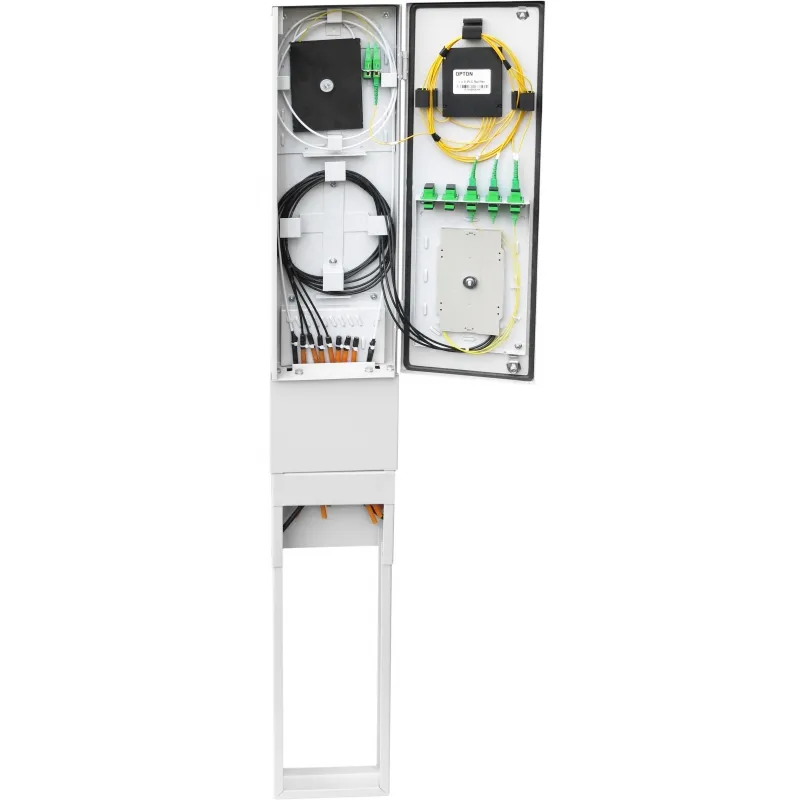

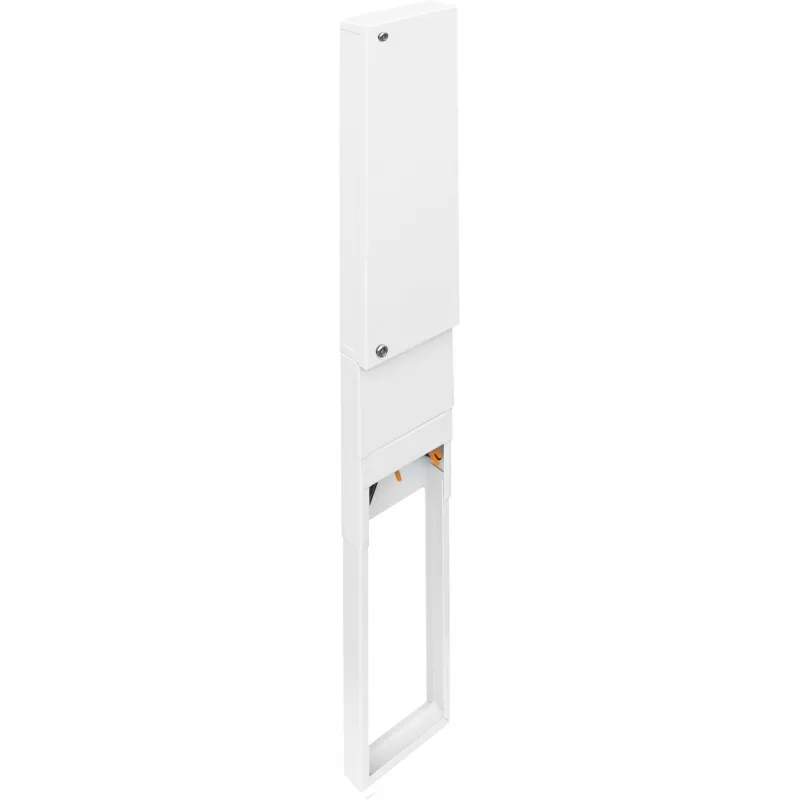

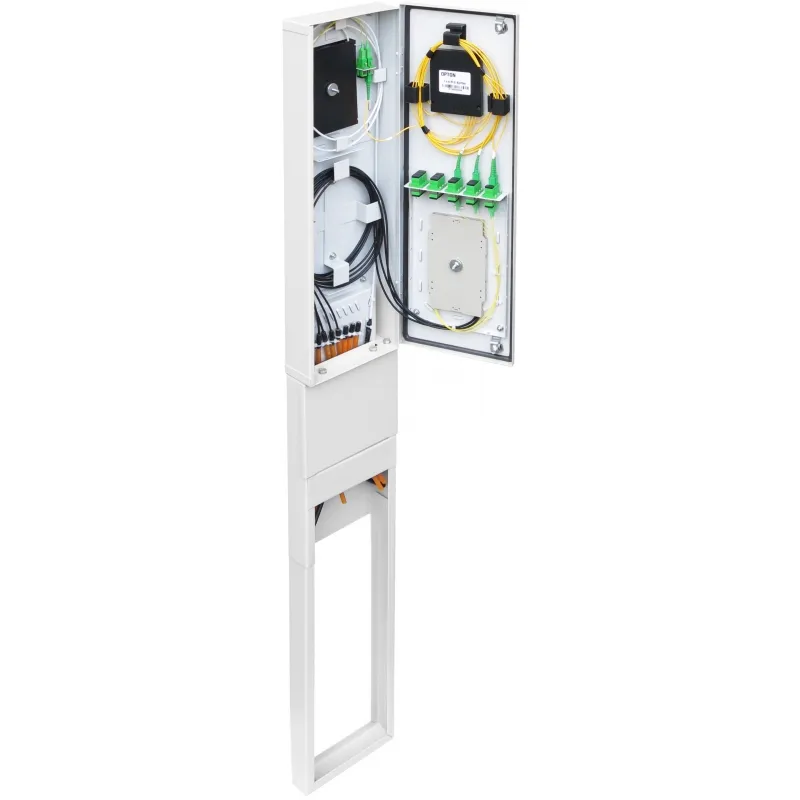

Mantar, outdoor cabinet RSZ-125/18/6 - FTTH 15J is designed for outdoor installation for FTTx networks. The body, powder coated, is made of sheet metal with Magnelis coating gr.1.0mm, and the pedestal is made of sheet metal with Magnelis coating gr.1.5mm. It was designed for installation by digging into the ground to a depth of 60cm. The door is closed with 2 hermetic cylinder locks (dedicated key code). In the upper part of the cabinet there is a separate space for a spare source cable with a 2J field and a welding tray. The upper part of the door is equipped with space for optical splitter and spare plastic handles. Note: Fibre optic accessories shown in the pictures are not part of the set! Possible accessories are welding trays and adapters.

Features:

• 15J commutation field (15 holes for SC Simplex adapters)
• At the bottom of the door dedicated space for a 12J welding cassette
• Separate space for the supply of client cables at the bottom of the cabinet
• The total height of the cabinet after the pedestal is about 65cm
• Colour: RAL7035 light grey, thick structure
• 5-year warranty on corrosion protection
