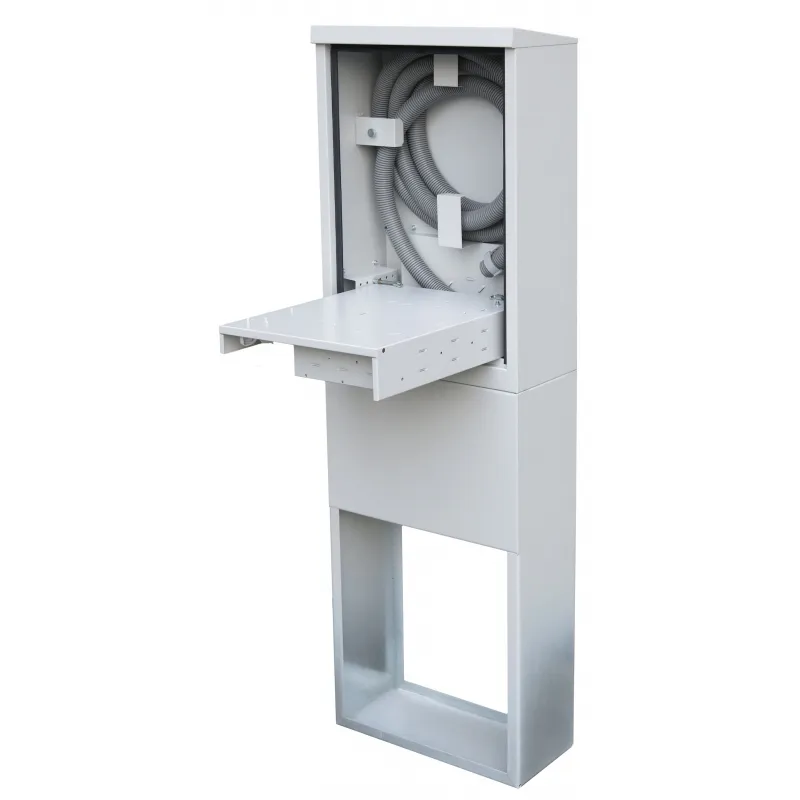

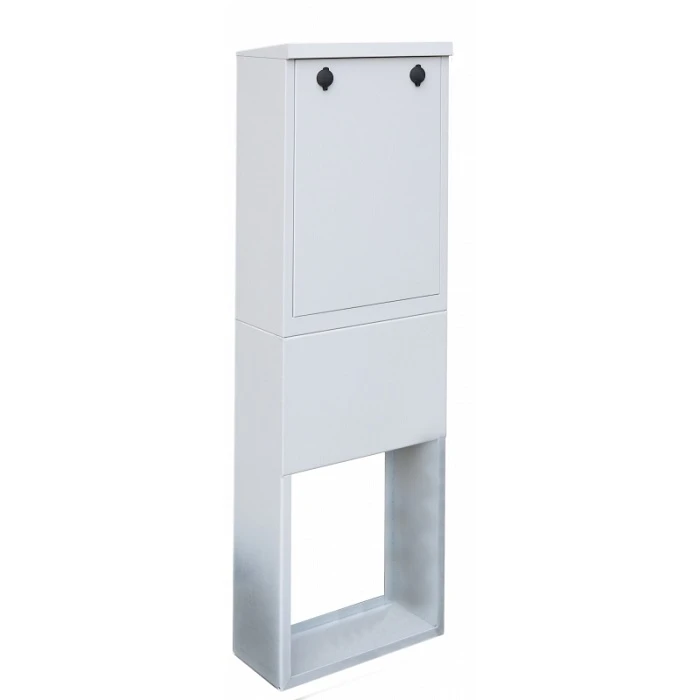

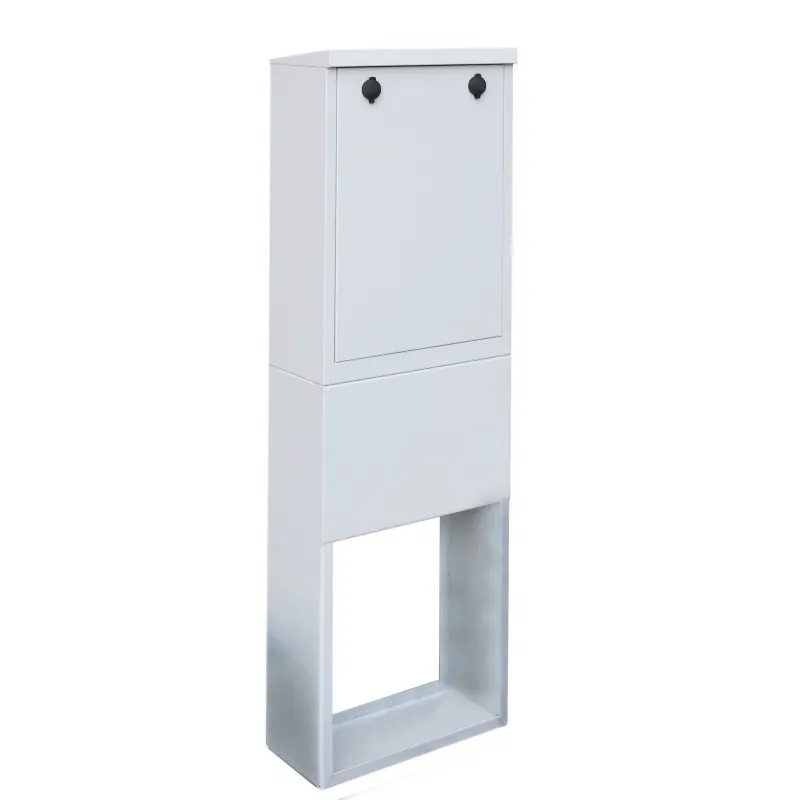

Mantar RSZ-140/44/20 | Outdoor cabinet | FTTH 72J, depth 200 mm

Mantar outdoor cabinet RSZ-140/44/20 - FTTH 72J

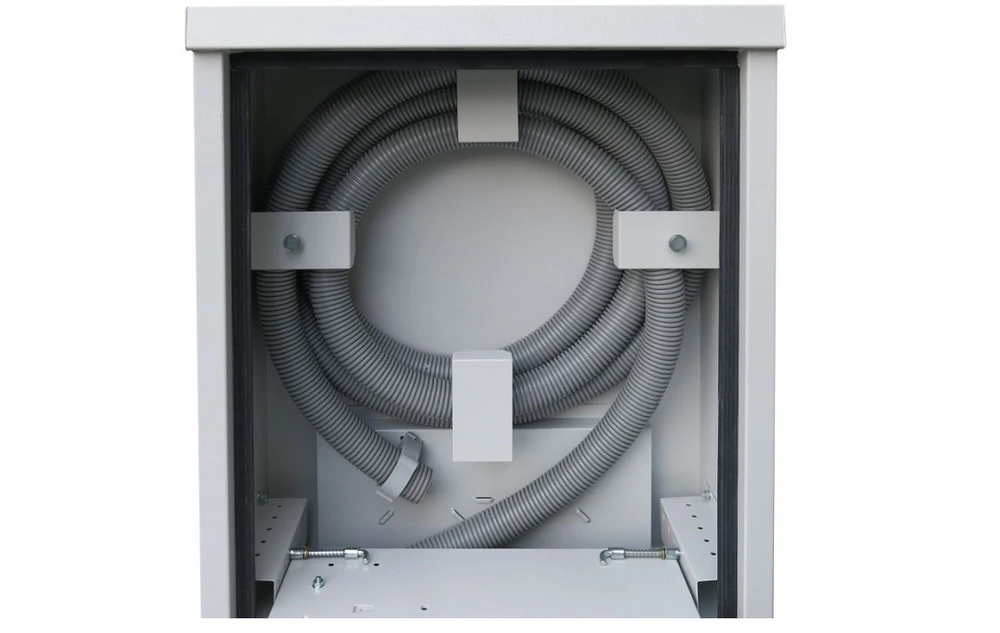

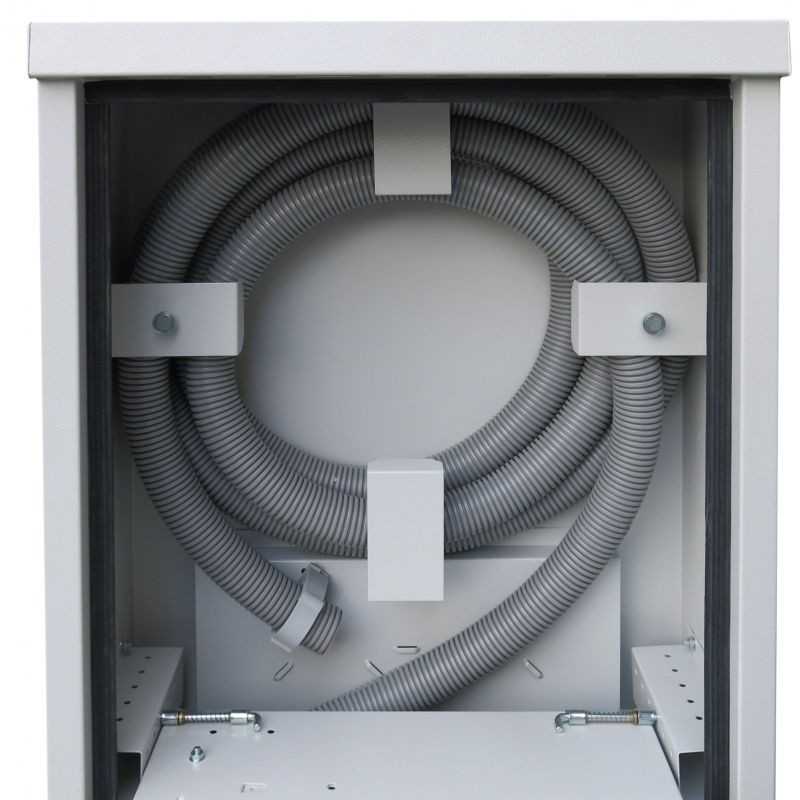

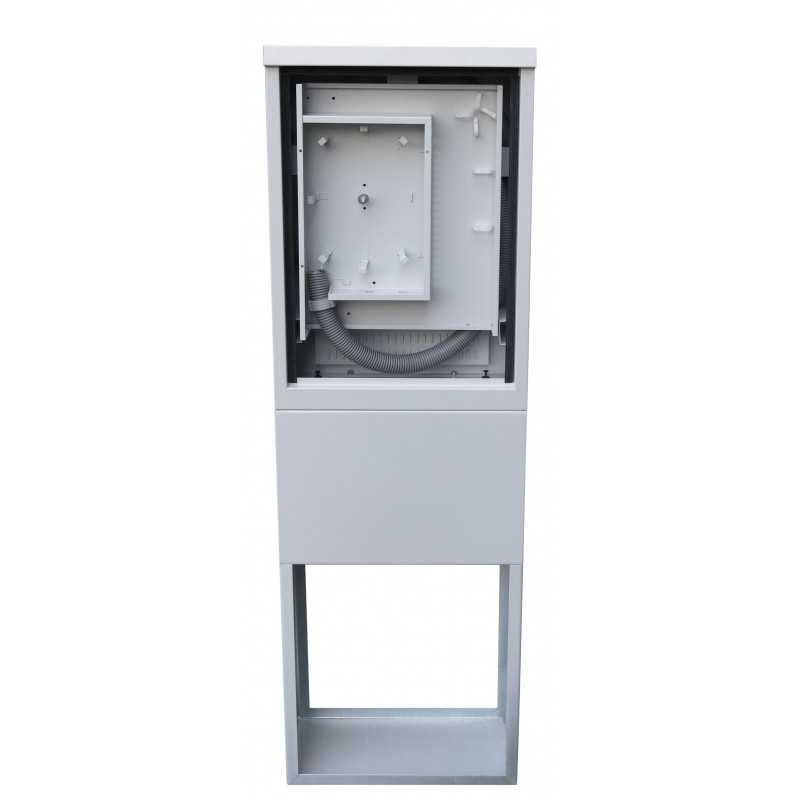

Mantar external cabinet RSZ-140/44/20 - FTTH 72J designed for outdoor installation, for FTTx network. It is equipped with a 72J commutation field (36 holes for SC Duplex adapters). The cabinet has additional field (3J) for signal source. Removable panel allows for comfortable welding up to 5m from the cabinet. Separate cable supply in the upper part of the cabinet with a 5m long fi37mm cable bush. It is equipped with organizers of pigtails and cable tubes, and a protective pendant for line and subscriber cables. The pedestal is made of sheet metal with Magnelis coating gr.2.0mm. Note: Fiber optic accessories shown in the pictures are not part of the set!

Features:

Features:

• Doors with 2 hermetic cylinder locks
• Cabinet made in modular construction
• The pedestal is to be installed by digging 60cm deep into the ground.
• The total height of the cabinet after the pedestal is 80cm
• Body made of sheet metal with Magnelis coating 1.0m thick, powder coated
• Colour: RAL7035 light grey, thick structure
• 5-year warranty on corrosion protection

Additional equipment:

Additional equipment:

• weld trays
• adaptors
