Mantar SZK-12U 19'' 86/61/61 | Cabinet | for mounting on the drain SK-1

Mantar cabinet SZK-12U 19'' 86/61/61

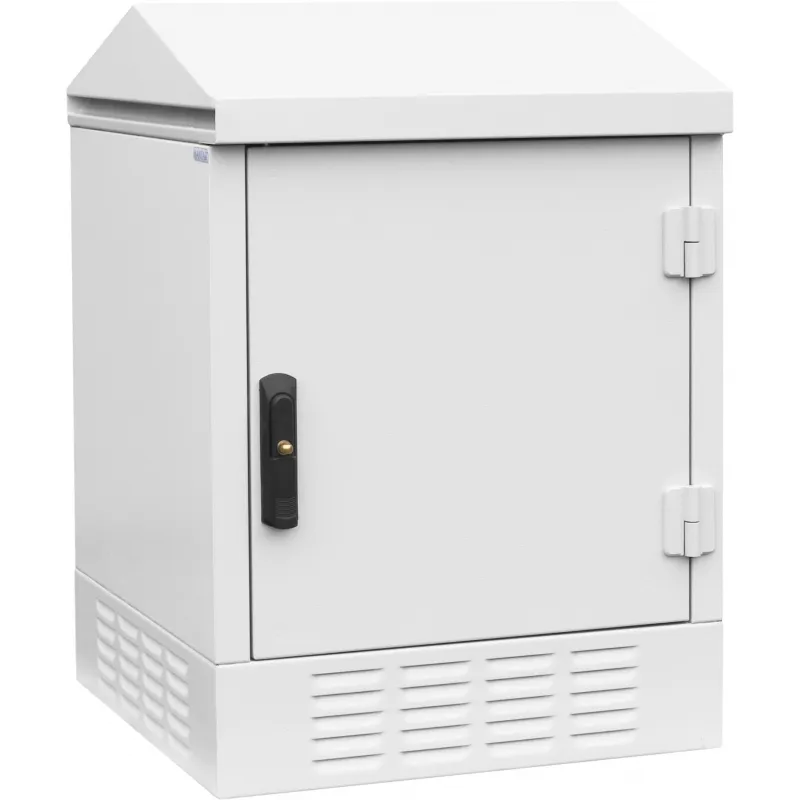

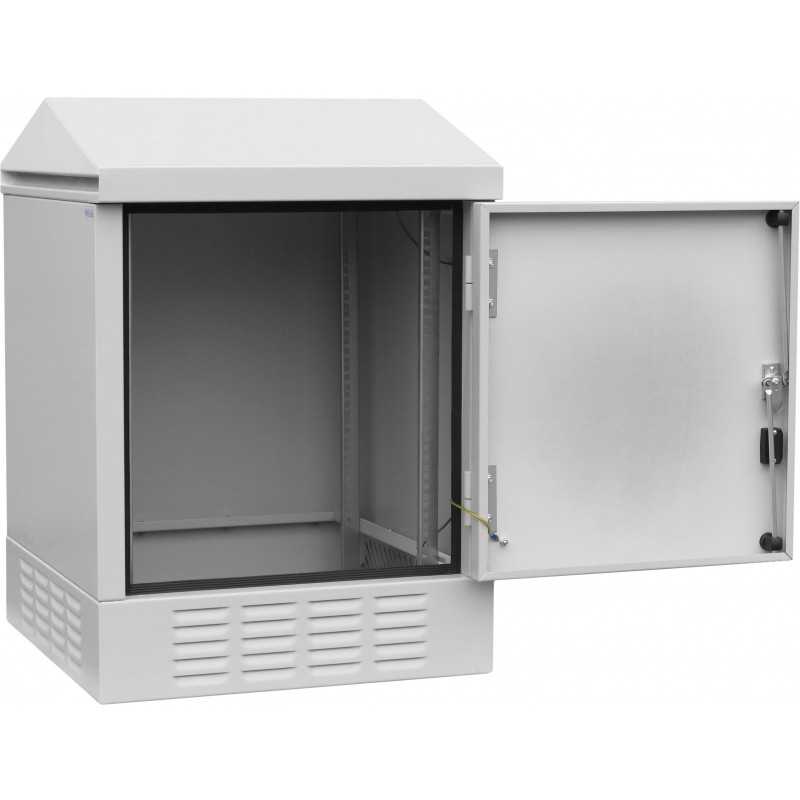

Mantar SZK-12U 19'' 86/61/61 is adapted for installation on the SK-1 channel sump. It is a mechanical shield for telecommunication equipment. Made of metal sheet with Magnelis® coating 1.5 mm thick, light grey colour.

Features:

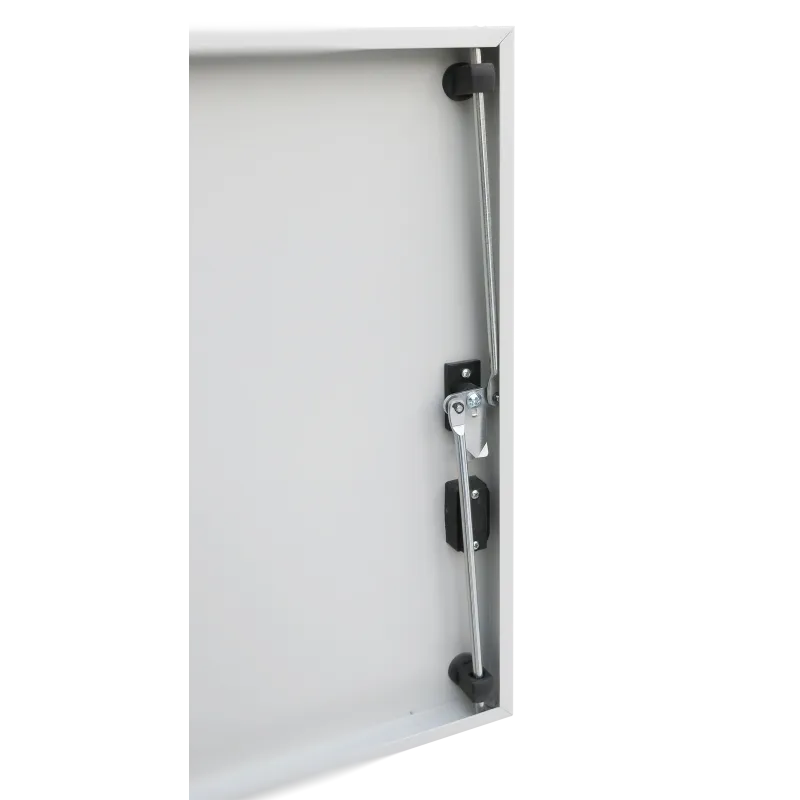

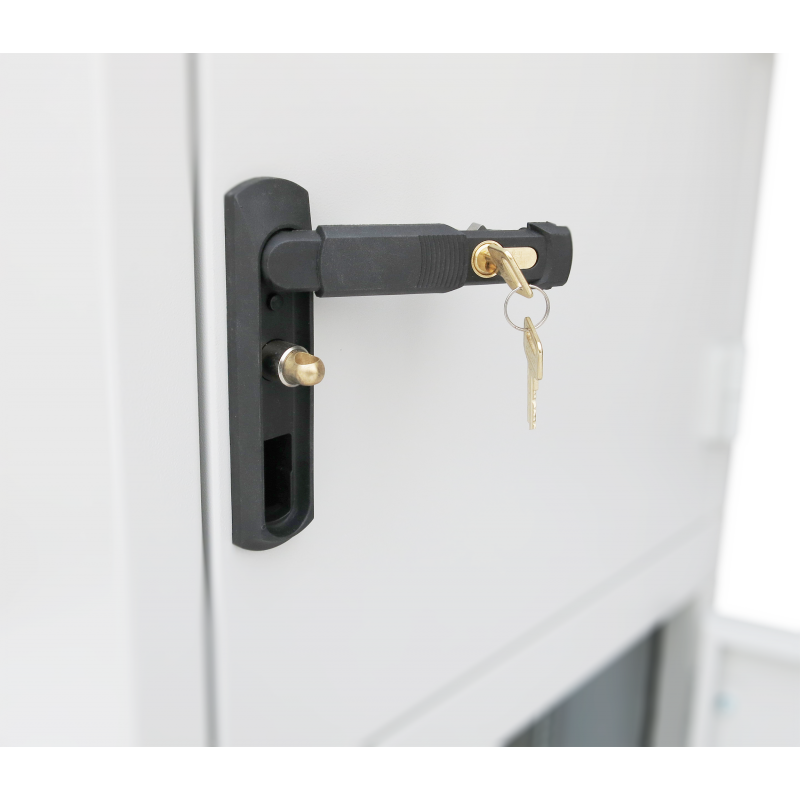

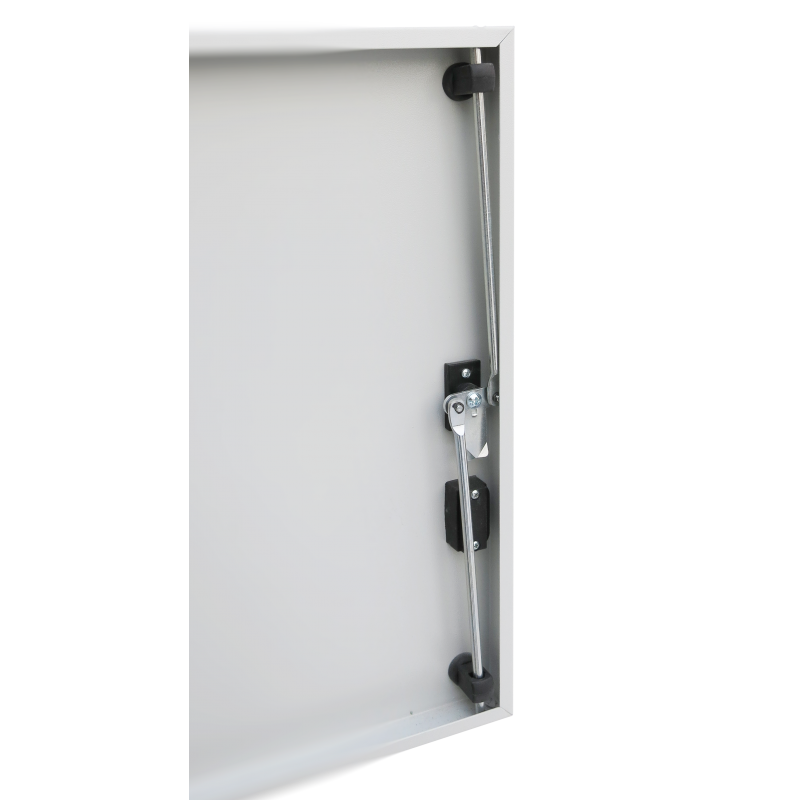

• 3-point locking with padlock bolt, swivel handle, lock cylinder insert

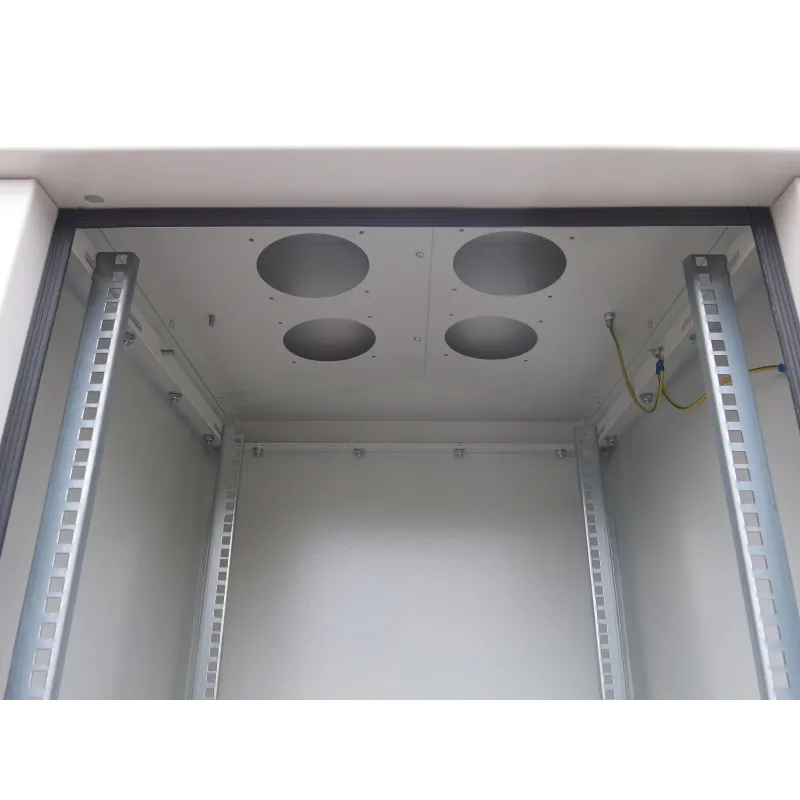

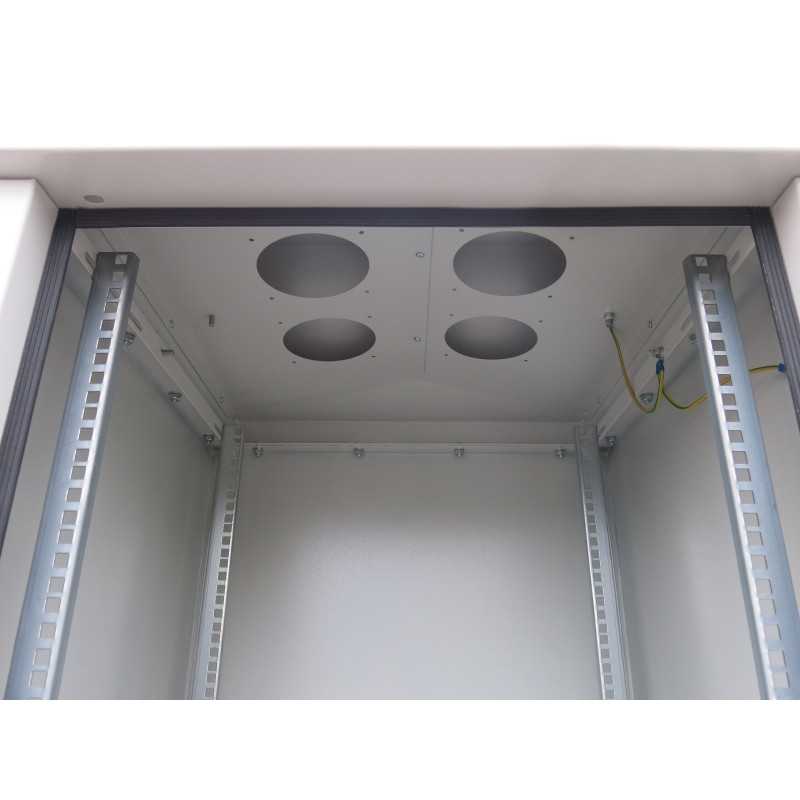

• 2 pairs of 19" racks - adjustable distance between the front and rear pairs from 260 mm to 430 mm
• Made of 1.5 mm thick Magnelis®-coated sheet metal
• Degree of protection IP53, mechanical resistance IK10
• Colour: RAL7035 - light grey, powder-coated, thick structure
• Plinth made of 2 mm thick sheet metal with Magnelis coating, height 150 mm, ventilation holes made

Additional equipment:

• PS 19" 1U SC Simplex / Duplex extension
• PS 19" 2U SC Duplex extension
• Shelf 19" 2U
• 3U voltage distribution panel

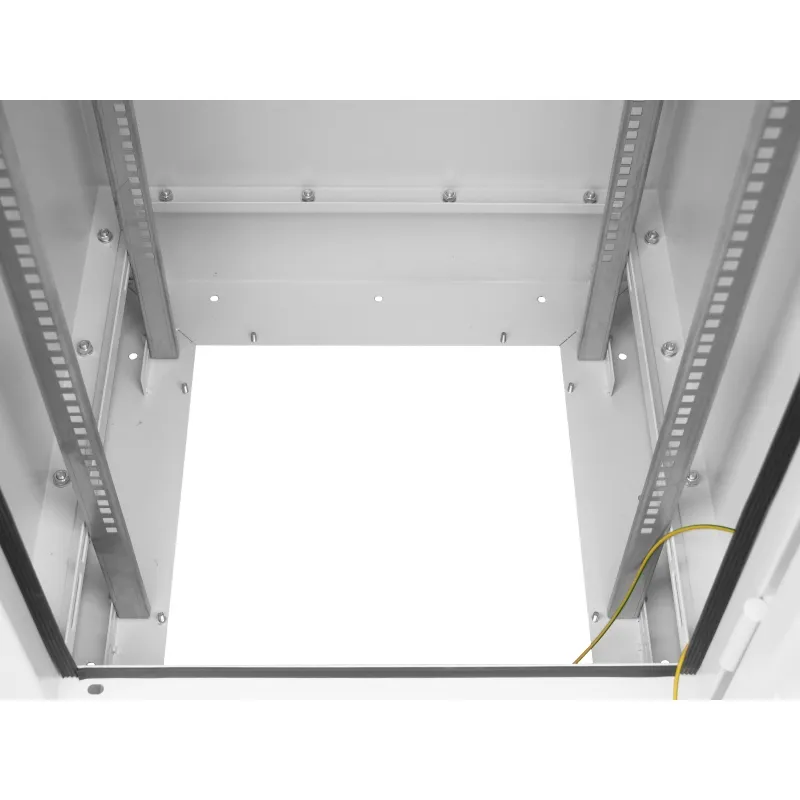

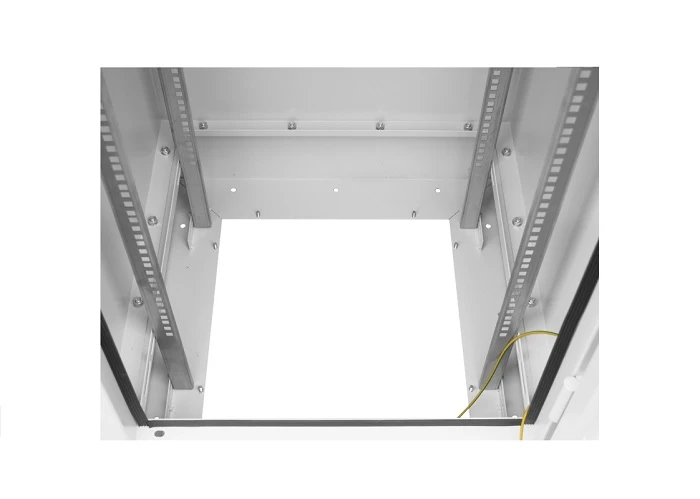

• Floor plate with cable holes
• Heating kit with thermostat
• Cabinet ventilation kit with thermostat
