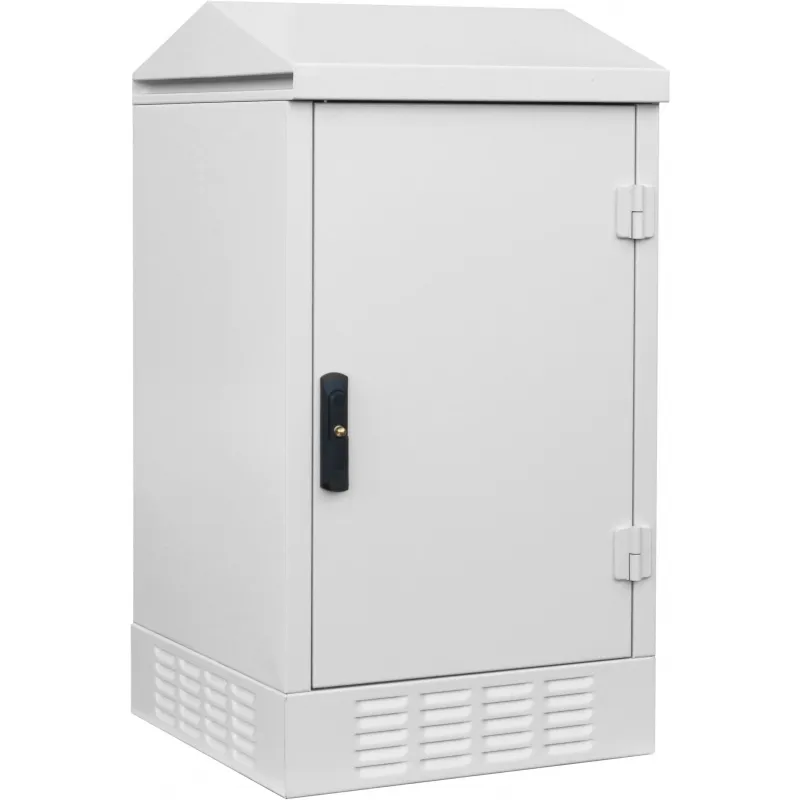

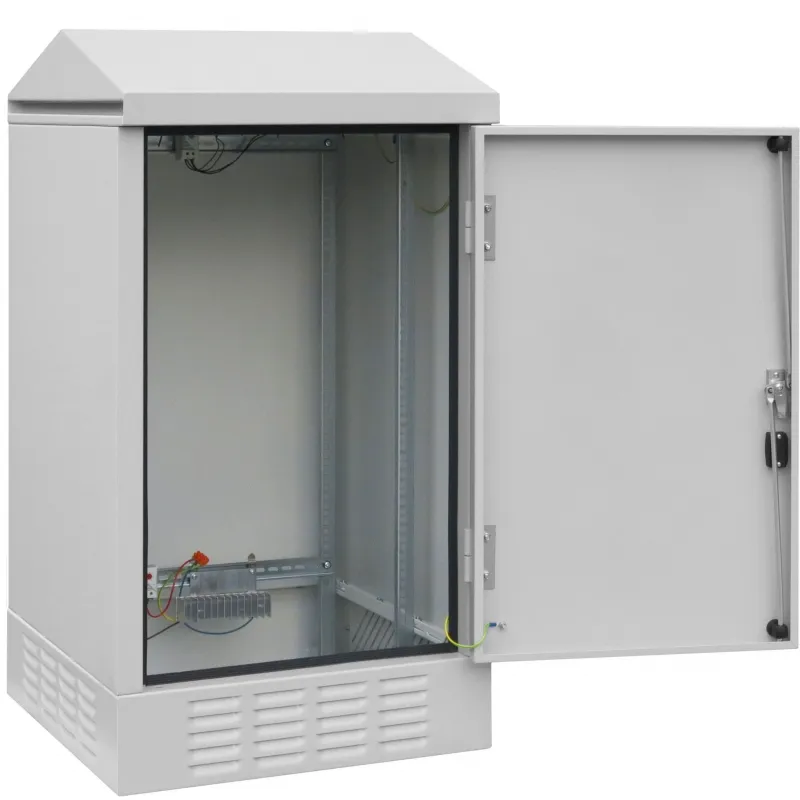

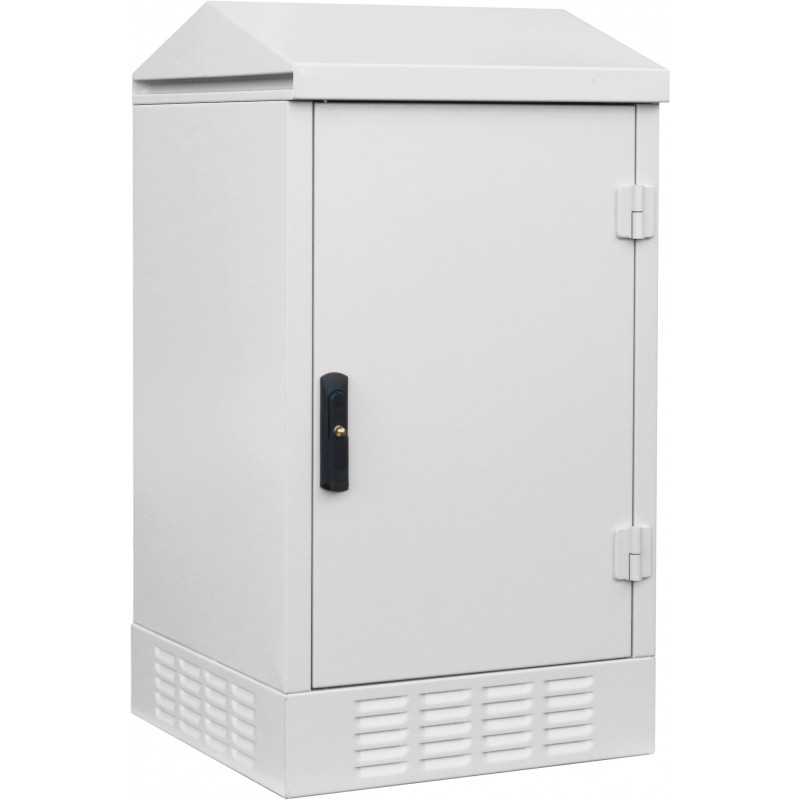

Mantar cabinet SZK-18U 19" 113/61/61

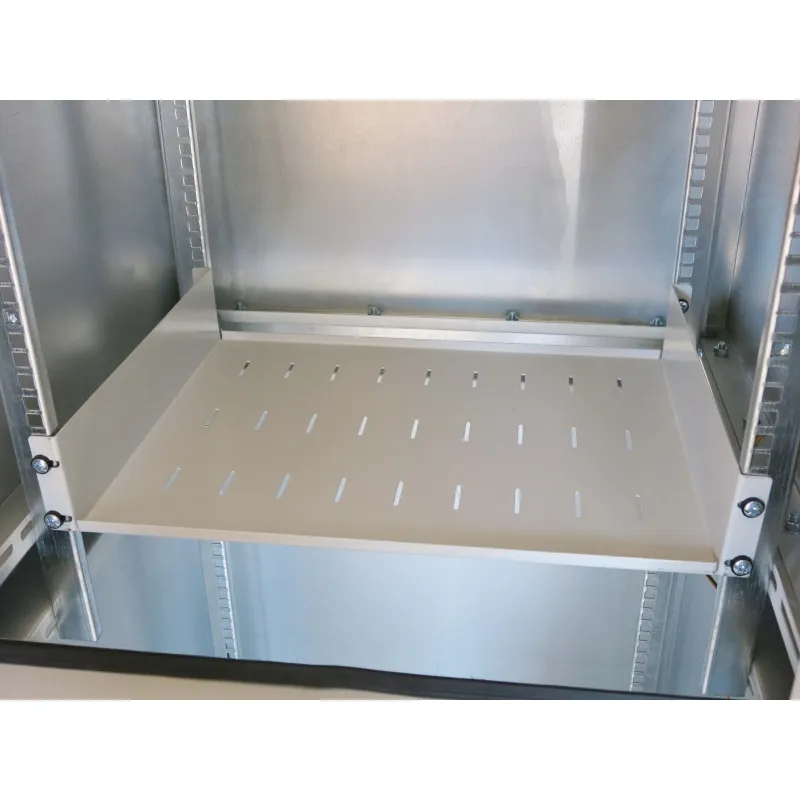

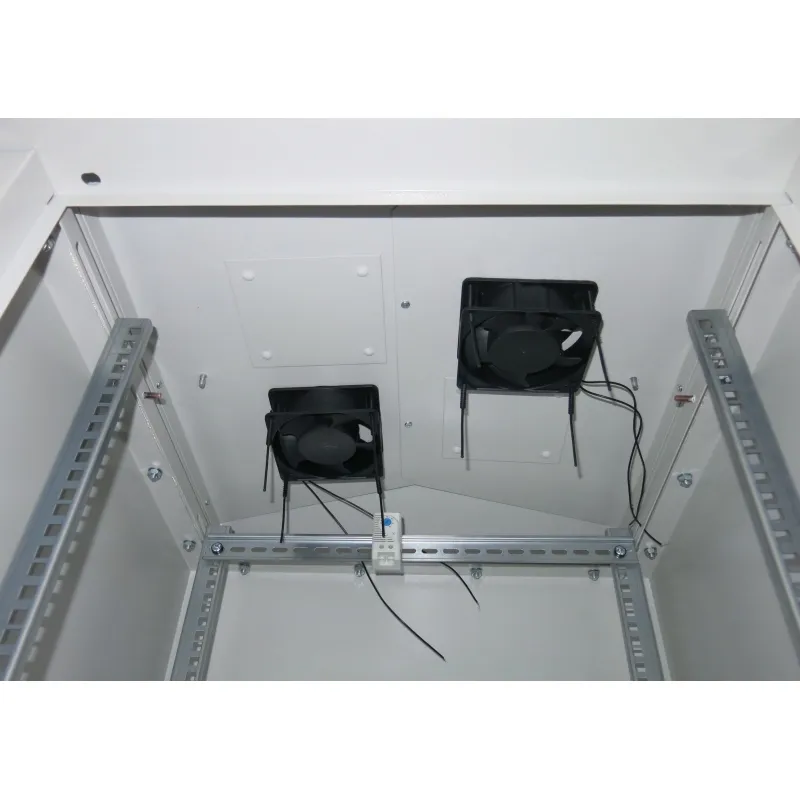

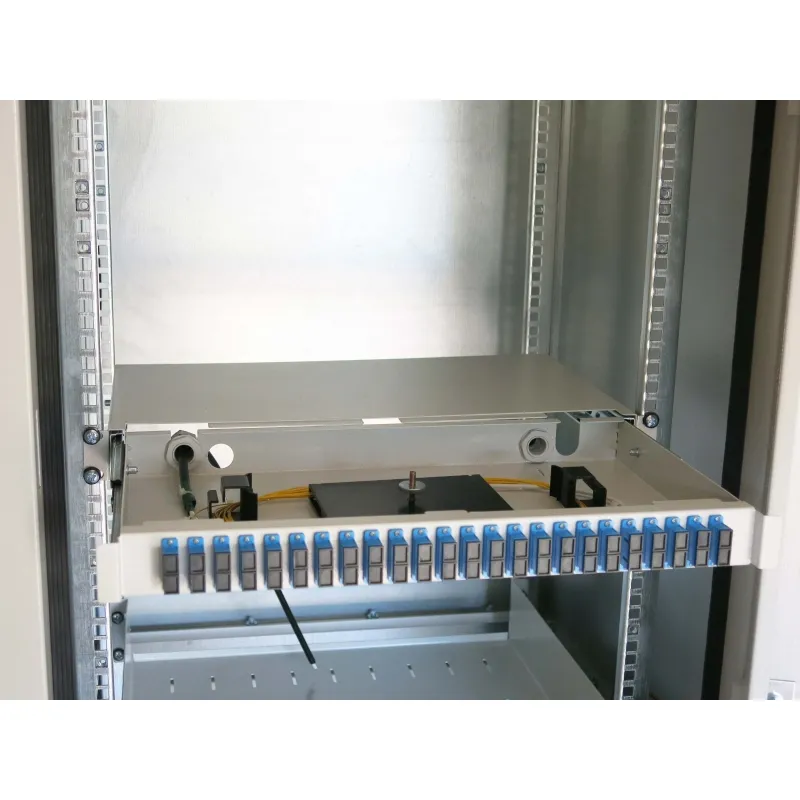

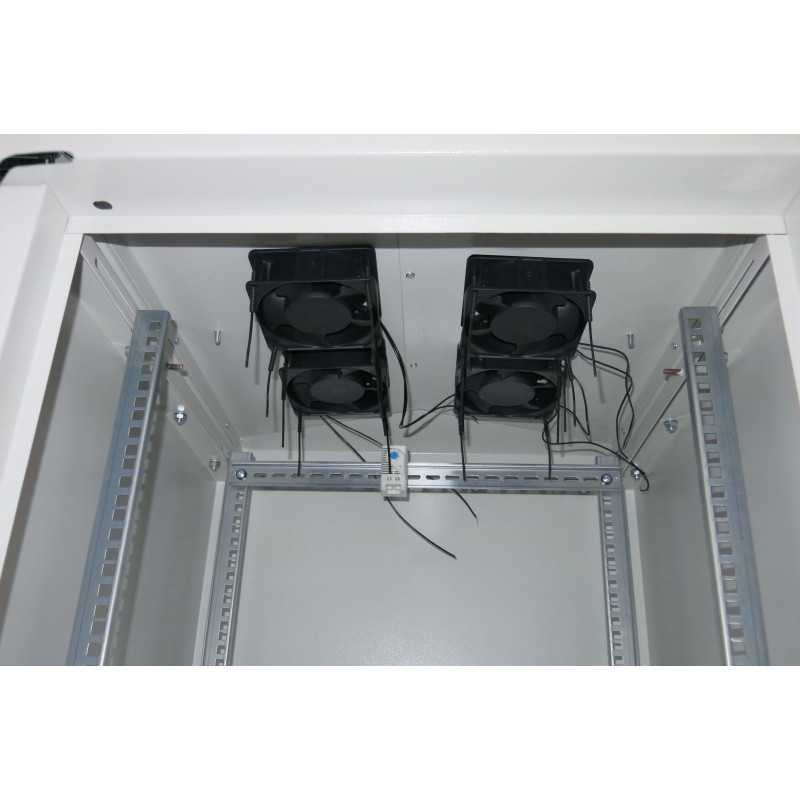

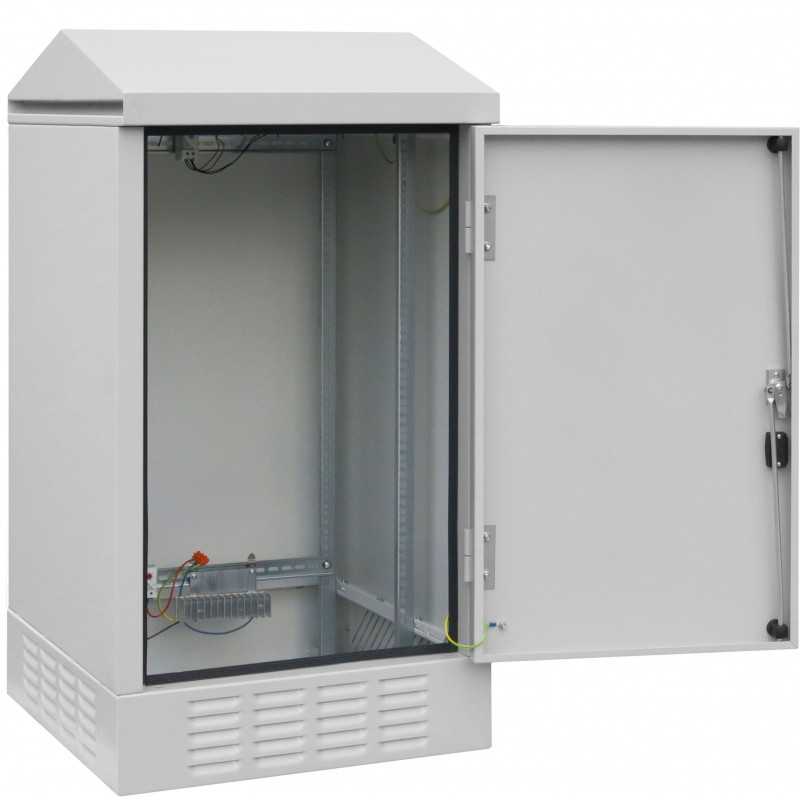

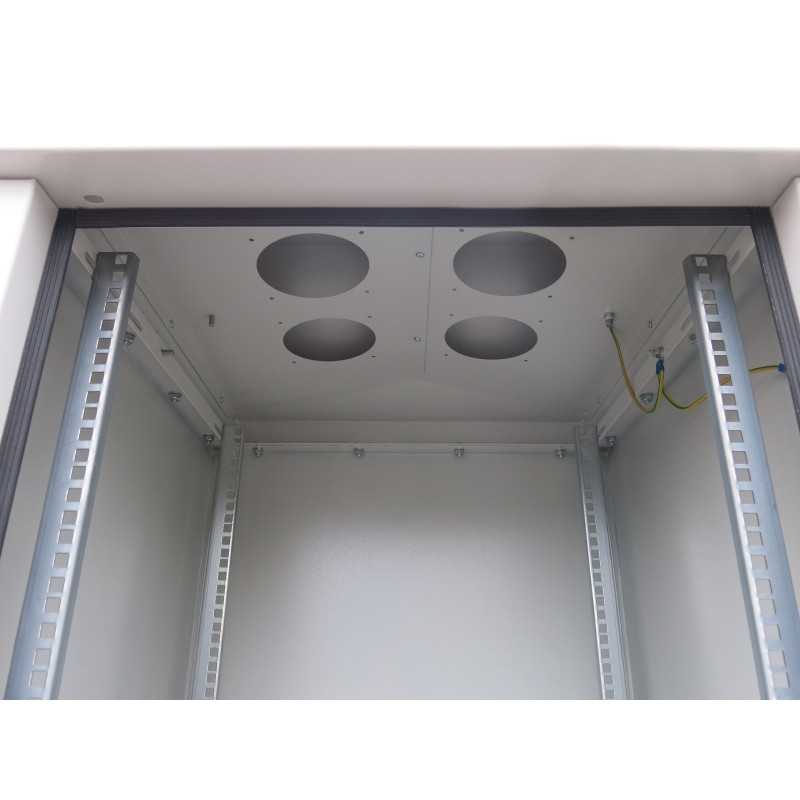

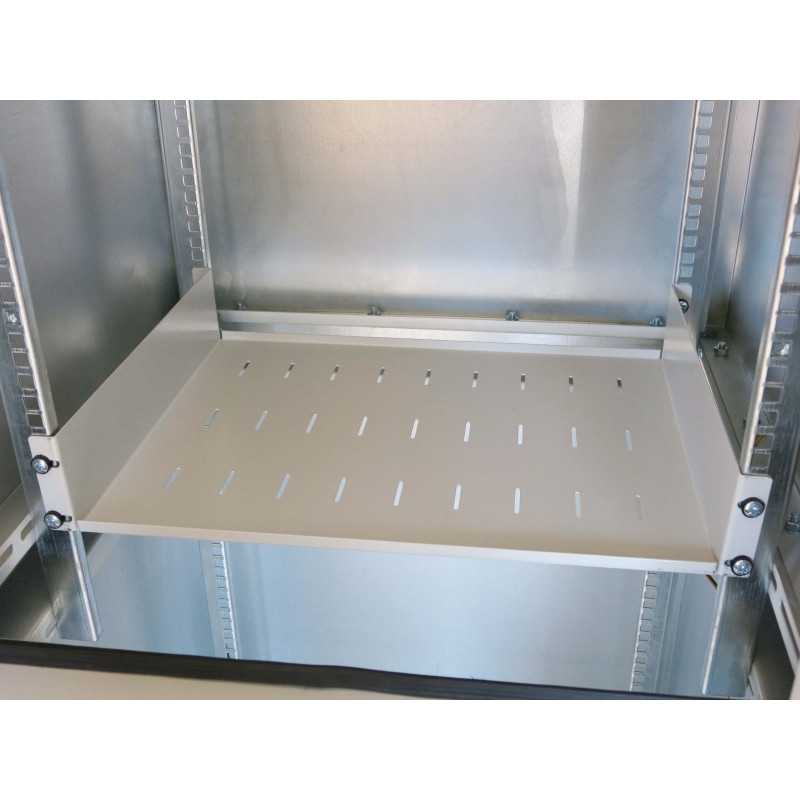

Mantar, SZK-18U 19" 113/61/61 cabinet adapted for installation on the SK- 1 channel sump. It constitutes a mechanical shield for telecommunication equipment. It has 2 pairs of 19" racks. - Adjustable distance between the front and rear pairs from 260 mm to 430 mm. Made of sheet metal with Magnelis® coating 1,5 mm thick. The cabinet can be additionally equipped with a 3U voltage distribution panel, heating set with a thermostat, cabinet ventilation set with a thermostat, floor panel with cable openings, and PS 19" 1U SC Simplex / Duplex and PS 19" 2U SC Duplex pull-out shelves.

Features:

Features:

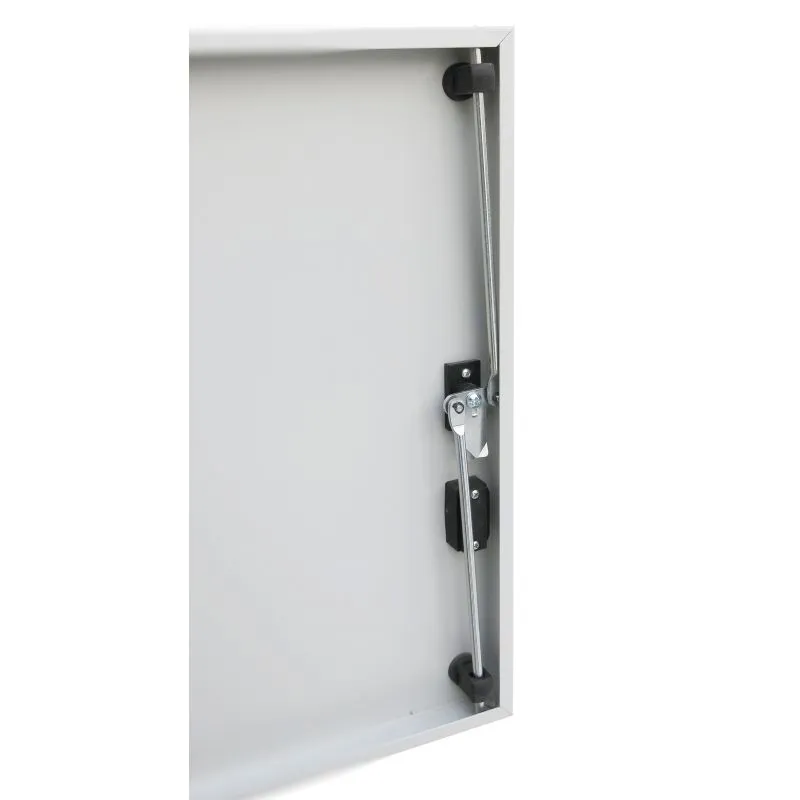

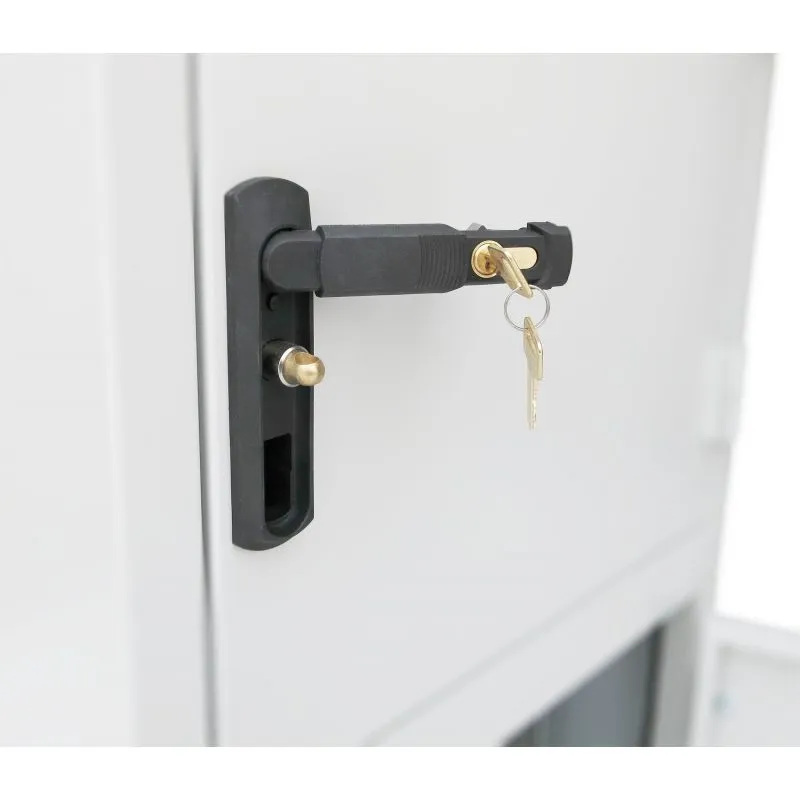

• 3-point locking with padlock bolt, swivel handle, lock cylinder insert
• Made of 1.5 mm thick Magnelis®-coated sheet metal
• Degree of protection IP53, mechanical resistance IK10
• Powder coated in colour: RAL7035 - light grey, thick structure
• Plinth made of 2 mm thick sheet metal with Magnelis coating, height 150 mm, ventilation holes made
