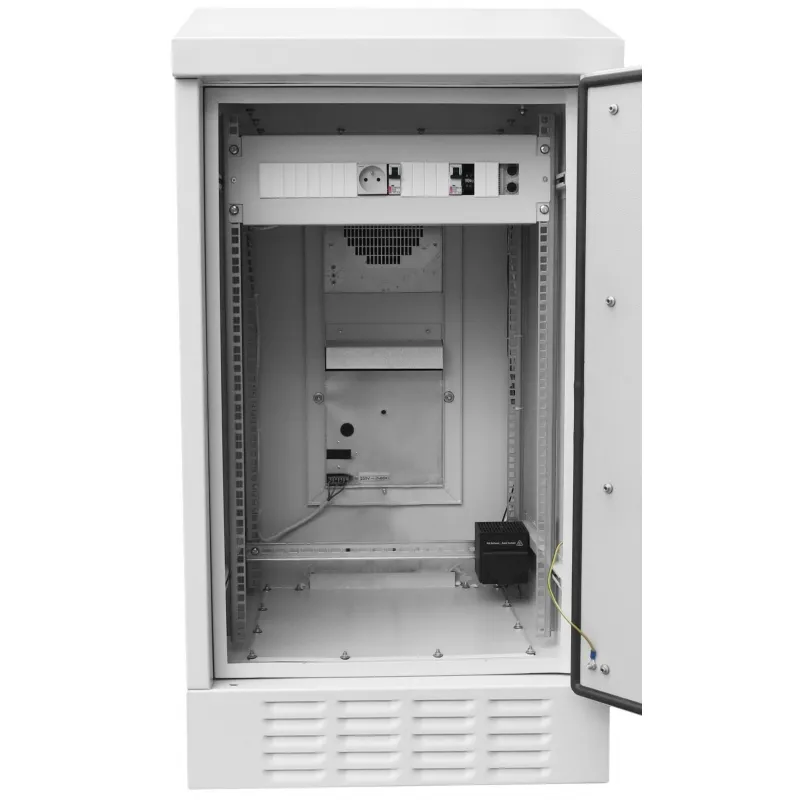

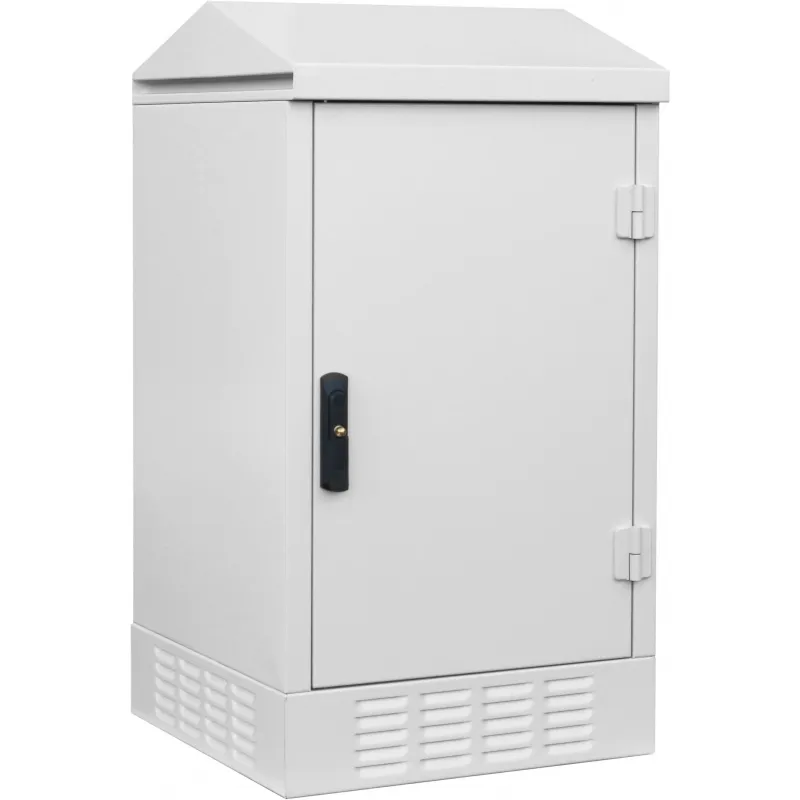

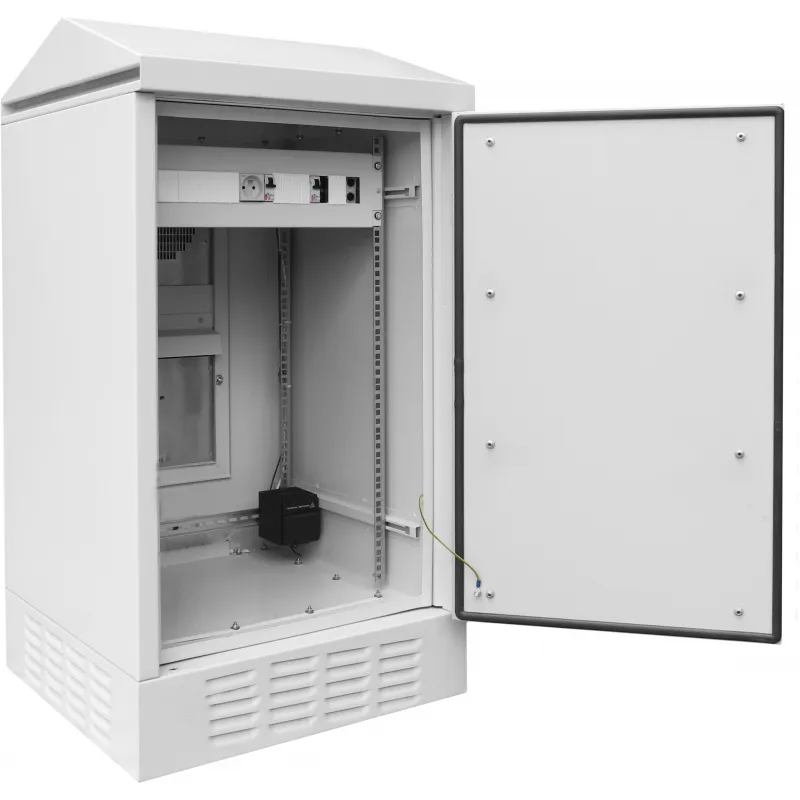

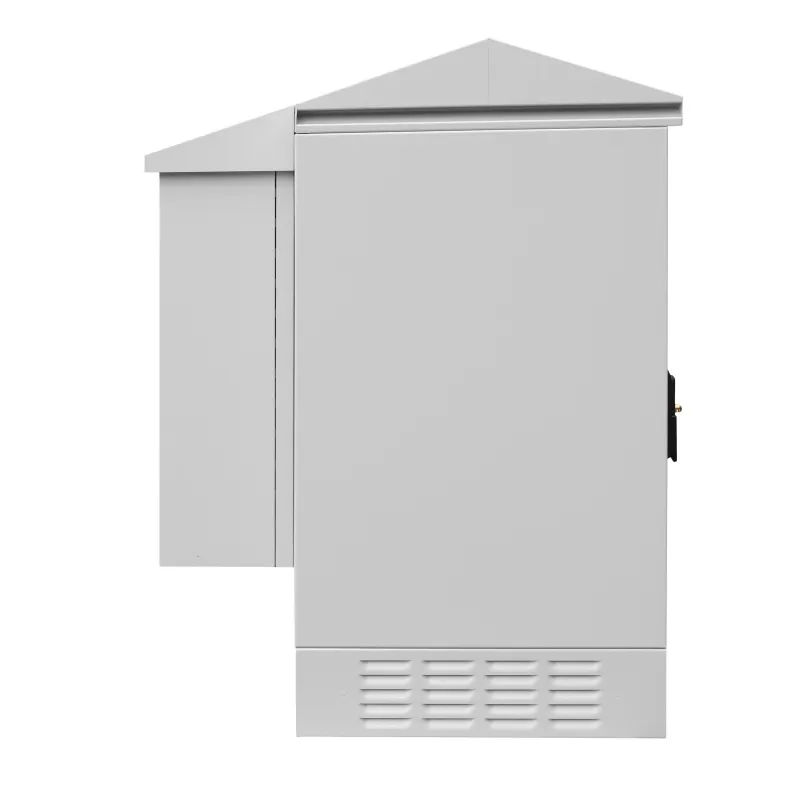

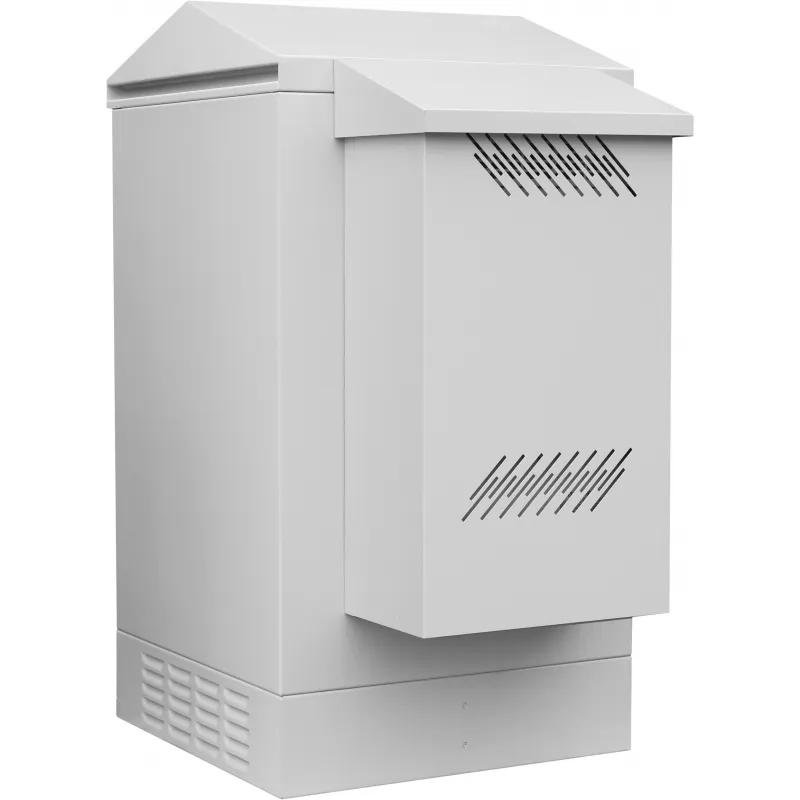

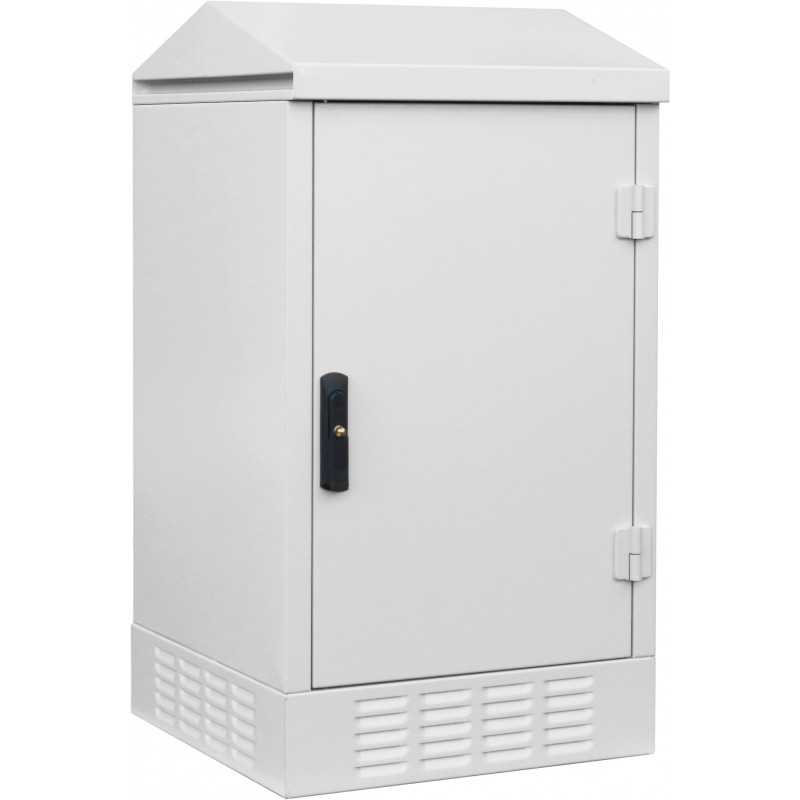

Mantar SZK-18U 19'' 113/61/89 AC | Cabinet | for mounting on the drain SK-1, with air conditioner

Mantar cabinet SZK-18U 19" 113/61/89 with air conditioner

Mantar SZK-18U 19" 113/61/89 cabinet with air conditioner is designed to be mounted on the SK-1 channel sump. The outdoor cabinet is equipped with air conditioner of 640W. It constitutes a mechanical cover for telecommunication equipment. It is made of metal sheet with Magnelis coating 1.5 mm thick, light grey colour.

Features:

• Adapted for installation on a sewer sump SK-
• Degree of protection IP65, mechanical resistance IK10
• The cabinet has a double sheath made of sheet metal - internal sheet metal wall with Magnelis coating 1 mm thick

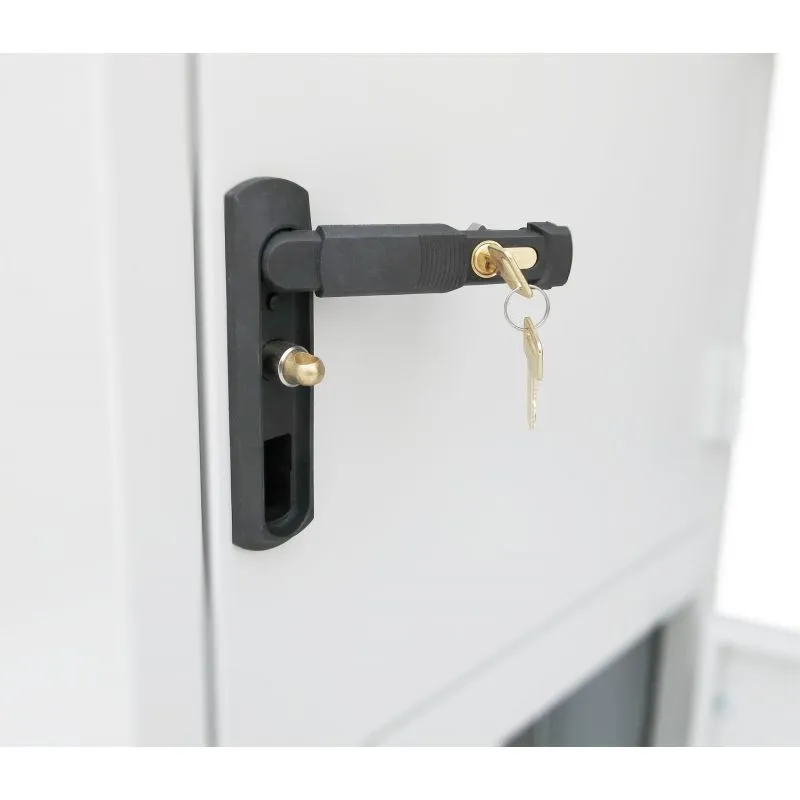

• Lockable with 3-point locking with padlock pin, tilt handle, lock insert
• Plinth made of 2 mm thick sheet metal with Magnelis coating 150 mm high, ventilation holes covered with filter mat on the sides
• Powder coated in colour: RAL7035 - light grey, thick structure
• 2 pairs of 19" rack handles - adjustable distance between front and rear pair from 290 mm to 420 mm, distance between the first pair of racks and the front of the door is from 55 mm to 125 mm

The cabinet is equipped as standard:

• 640W air conditioner (voltage: 230V) manufacturer: TEXA model: EMO06BM1B
• 3U voltage distribution panel
• heating set consisting of a semiconductor blower CSL028 250W controlled by means of an electronic hygrother ETF 012
• additional thermostat-controlled fans installed in the canopy

Additional equipment:

• Shelf 19" 2U
• PS 19" 1U 24xSC Simplex/Duplex extension slide
• PS 19" 2U 48xSC Duplex SC Duplex extension
