Mantar SZK-30U 19'' 168/61/61 | Modular cabinet | for mounting on the drain SK-1, depth 610 mm

Mantar modular cabinet SZK-30U 19'' 1686161

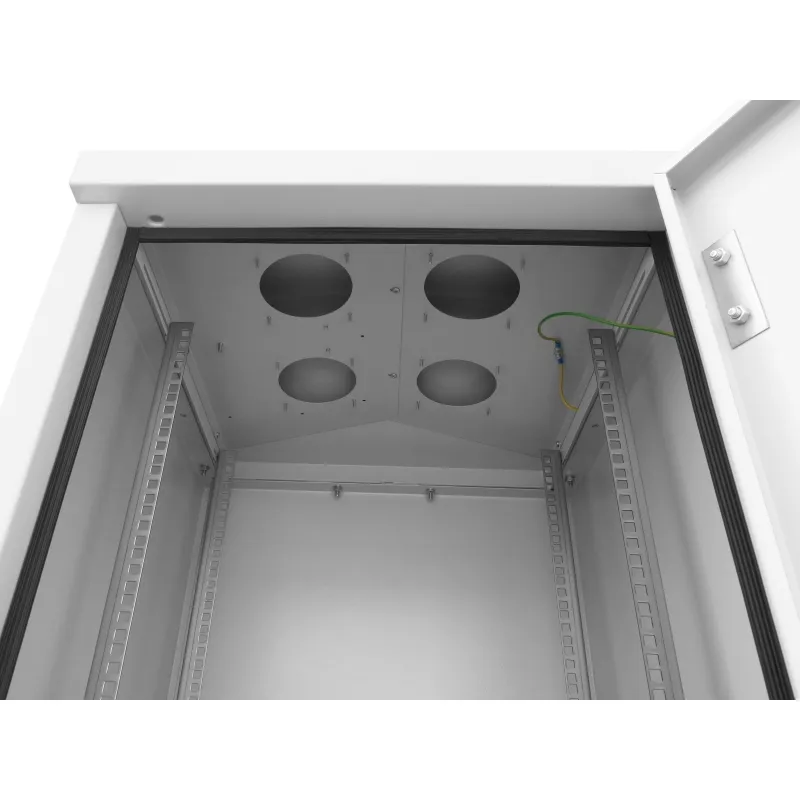

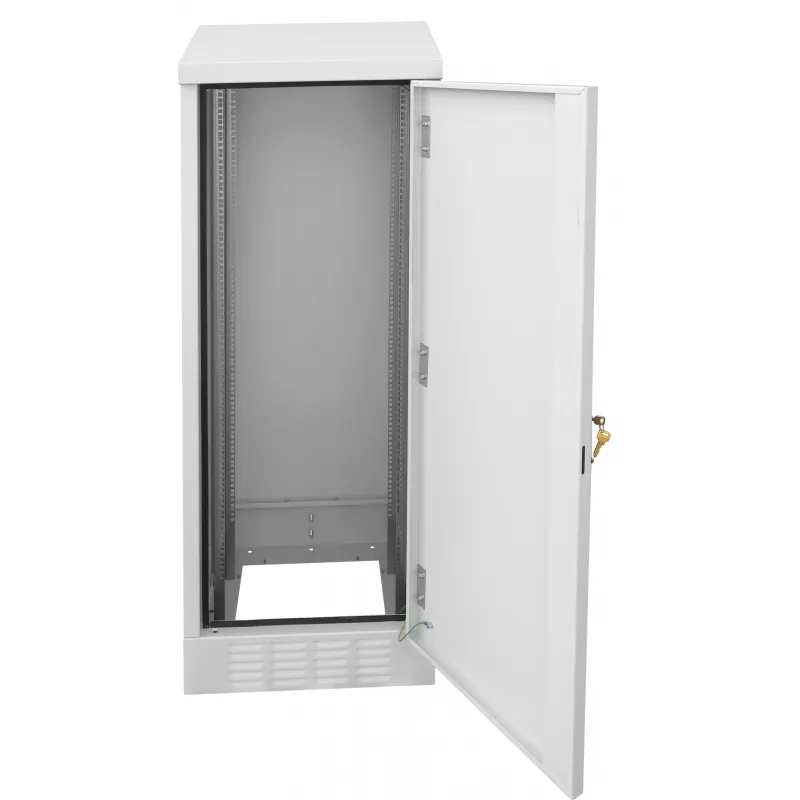

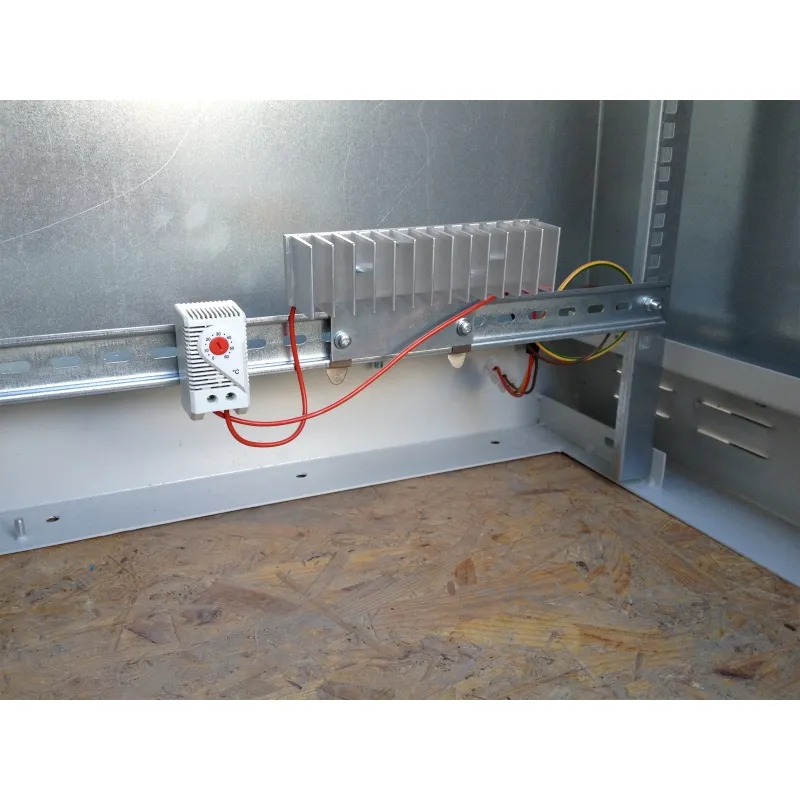

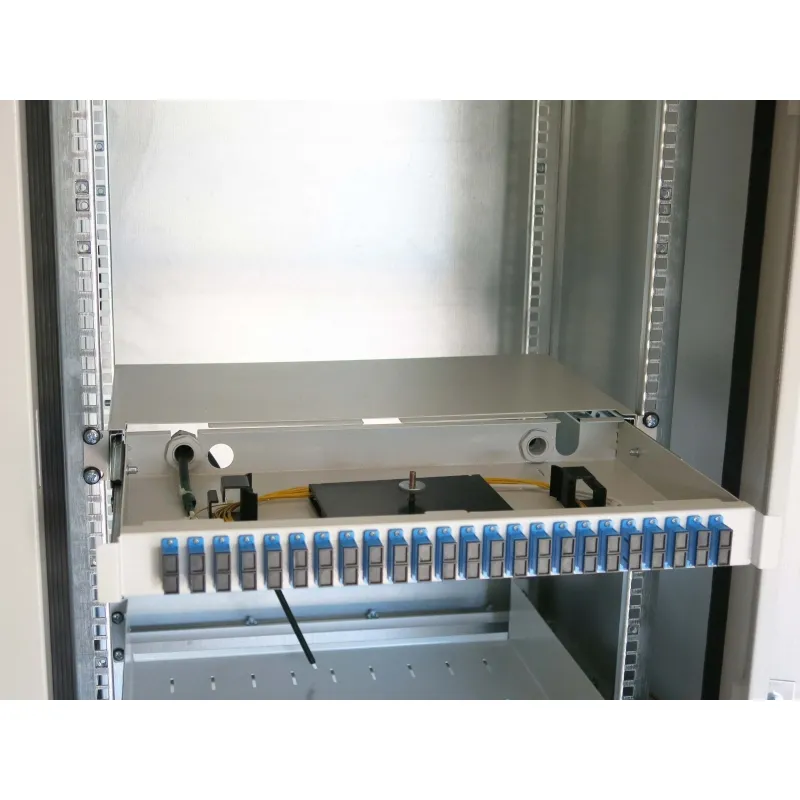

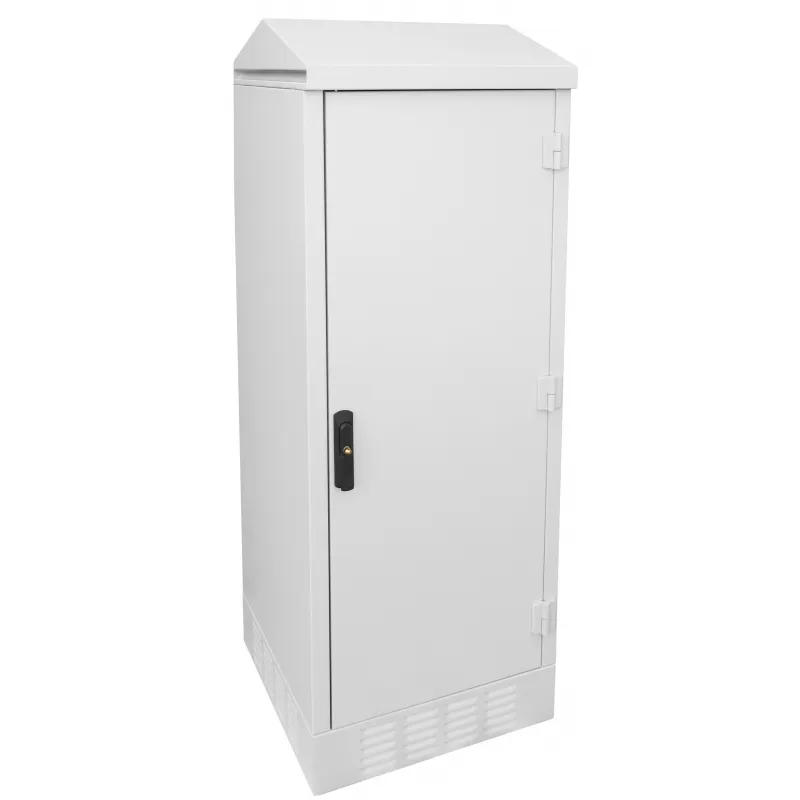

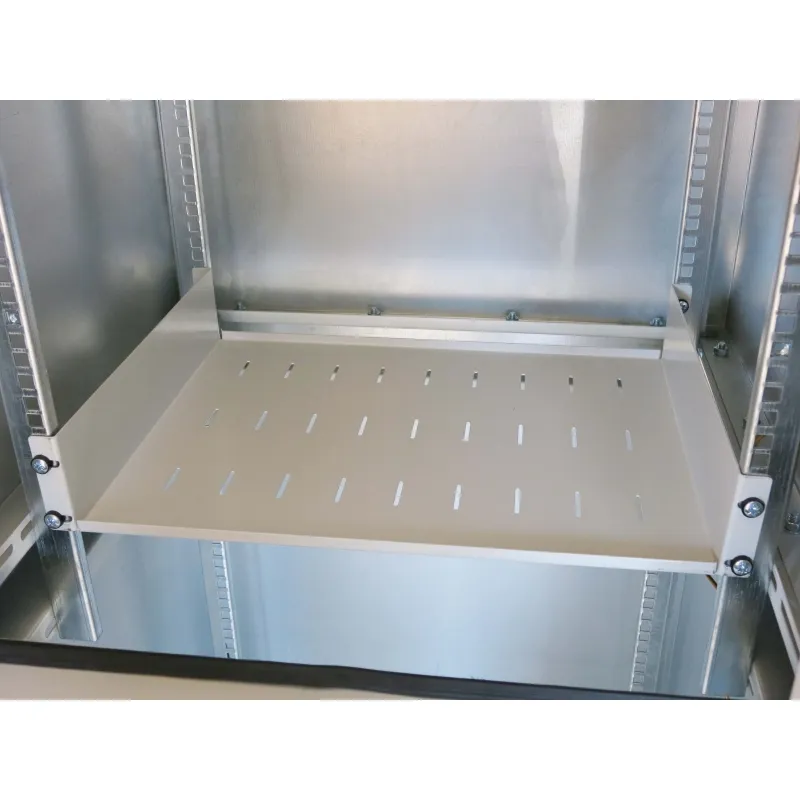

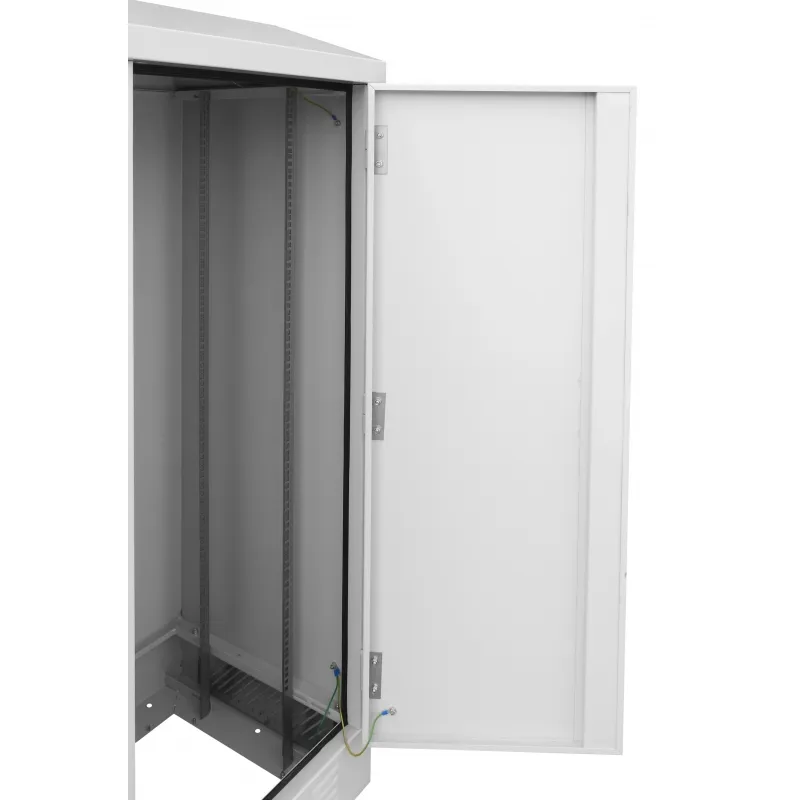

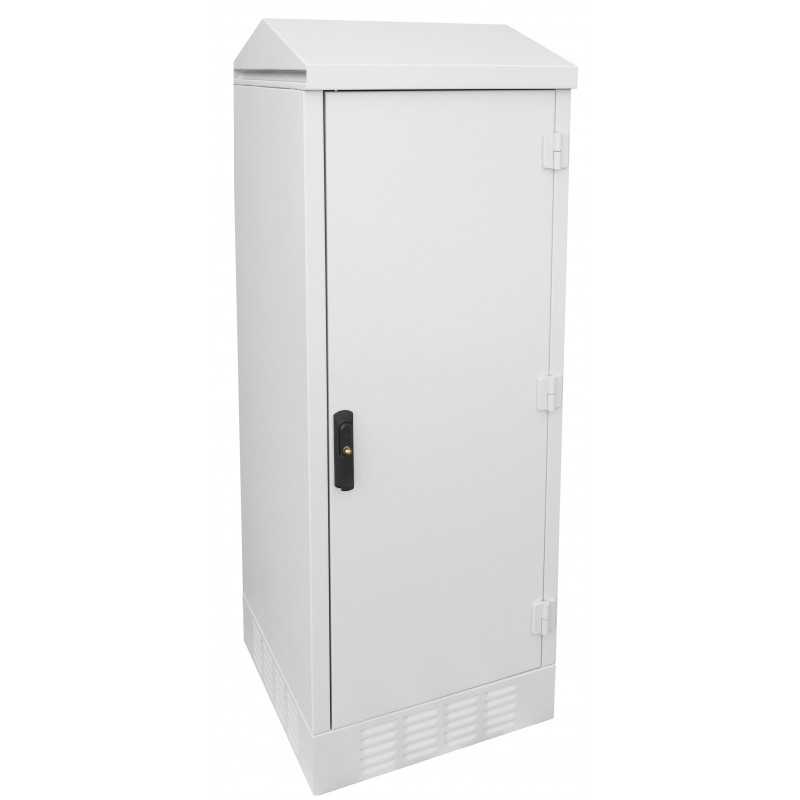

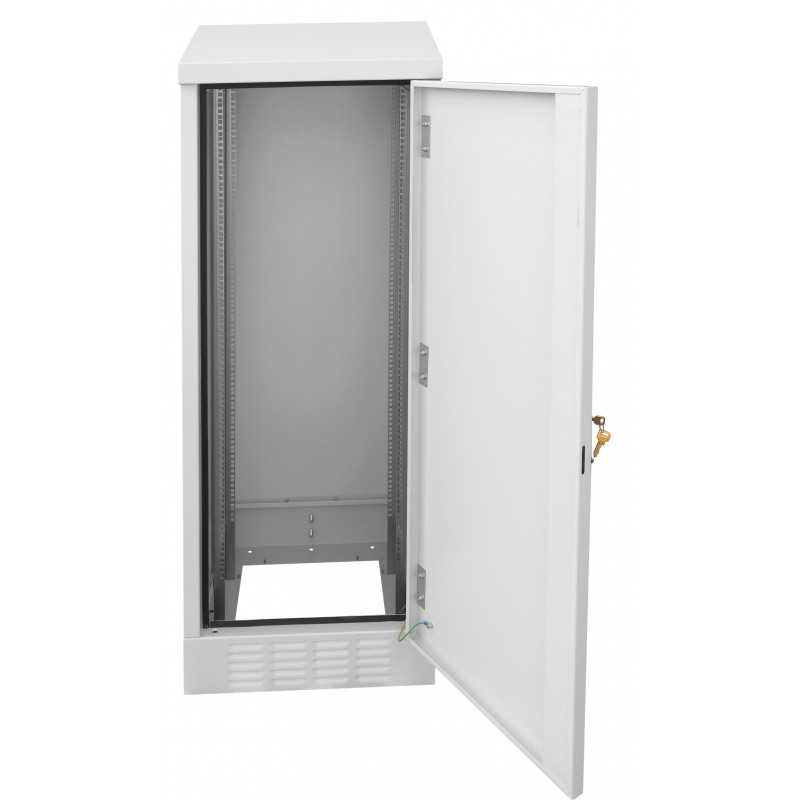

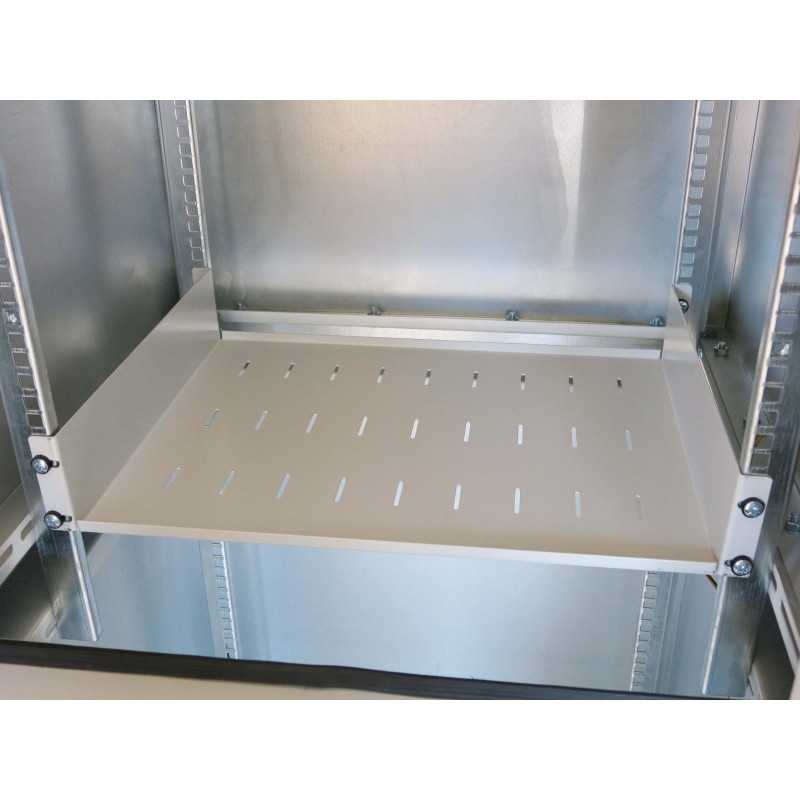

Mantar, modular cabinet SZK-30U 19'' 168/61/61, adapted for mounting on the SK- 1 channel sump, is a mechanical shield for telecommunication equipment. It has 2 pairs of 19'' racks. - to adjust the distance between the front and rear pairs from 260 mm to 430 mm. It is made of 1,5 mm thick Magnelis®-coated sheet metal. The cabinet can be additionally equipped with a 3U voltage distribution panel, heating set with a thermostat, cabinet ventilation set with a thermostat, floor panel with cable openings and PS 19" 1U SC Simplex / Duplex and PS 19" 2U SC Duplex pull-out shelves.

Features:

• 3-point locking with padlock bolt, swivel handle, lock cylinder insert
• Made of 1.5 mm thick Magnelis®-coated sheet metal
• Degree of protection IP53, mechanical resistance IK10
• Powder coated in colour: RAL7035 - light grey, thick structure
• Plinth made of 2 mm thick sheet metal with Magnelis coating with a height of 150 mm, made ventilation holes
