Extralink Sedir | Media converter | 1x SFP, 1x RJ45 1000Mb/s, MC220 replacement
EAN: 5902560363296
Reference: EX.3296
117.01 zł gross gross / meter 95,13 zł netto gross / piece
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods

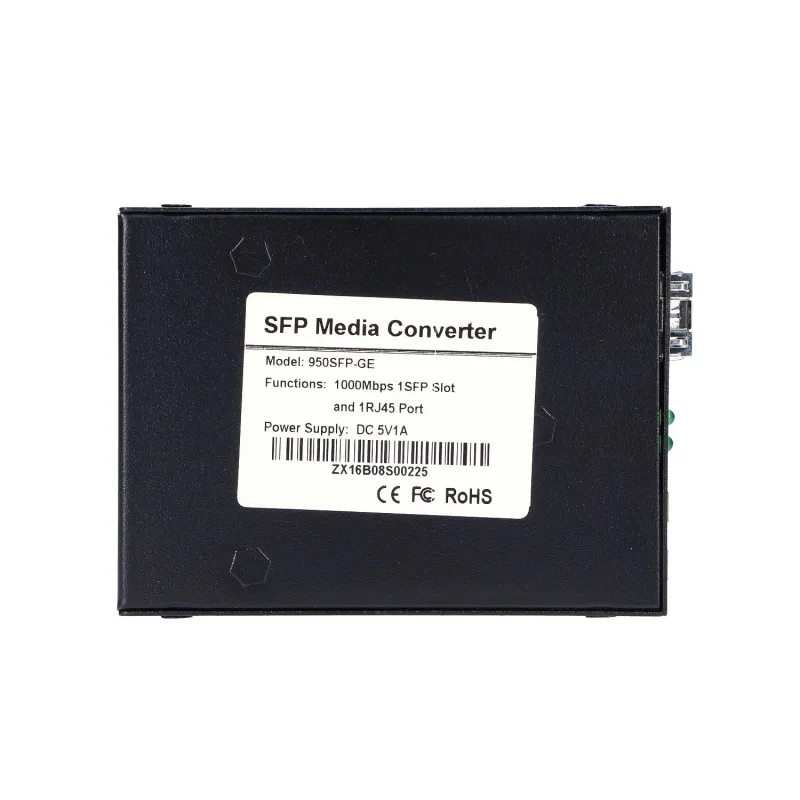

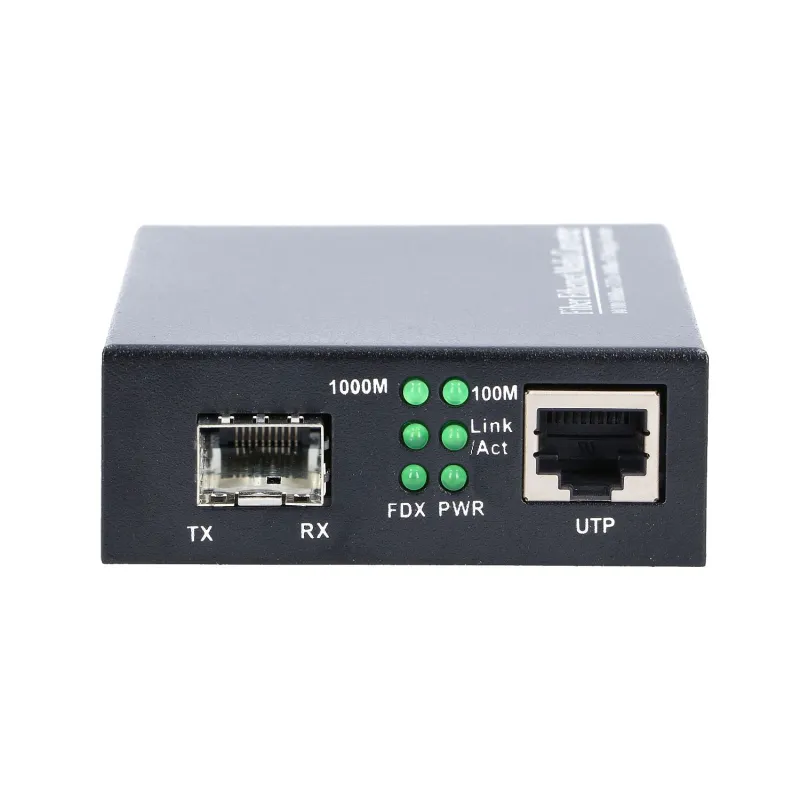

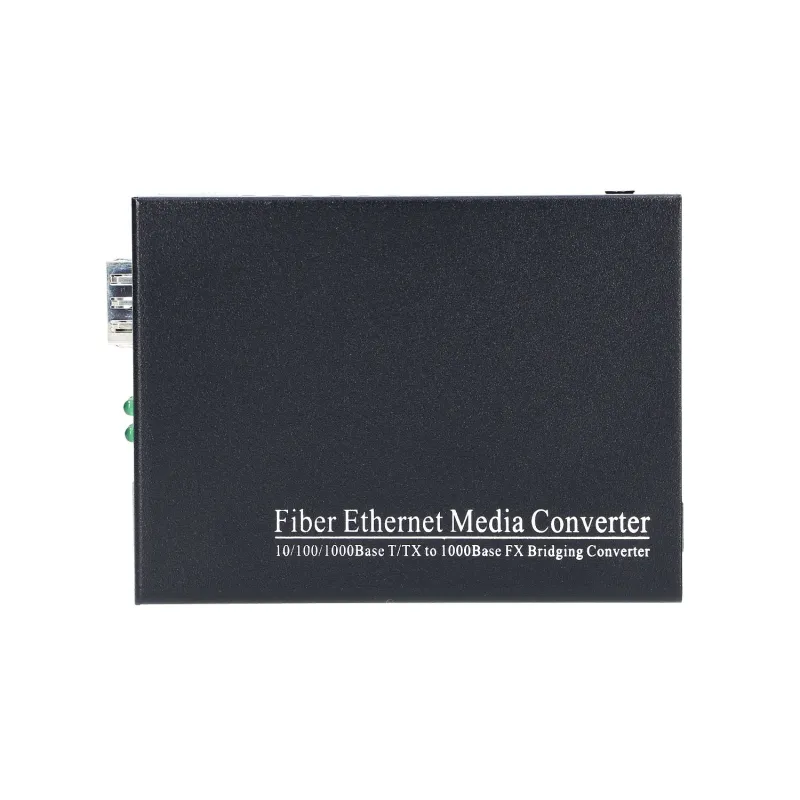

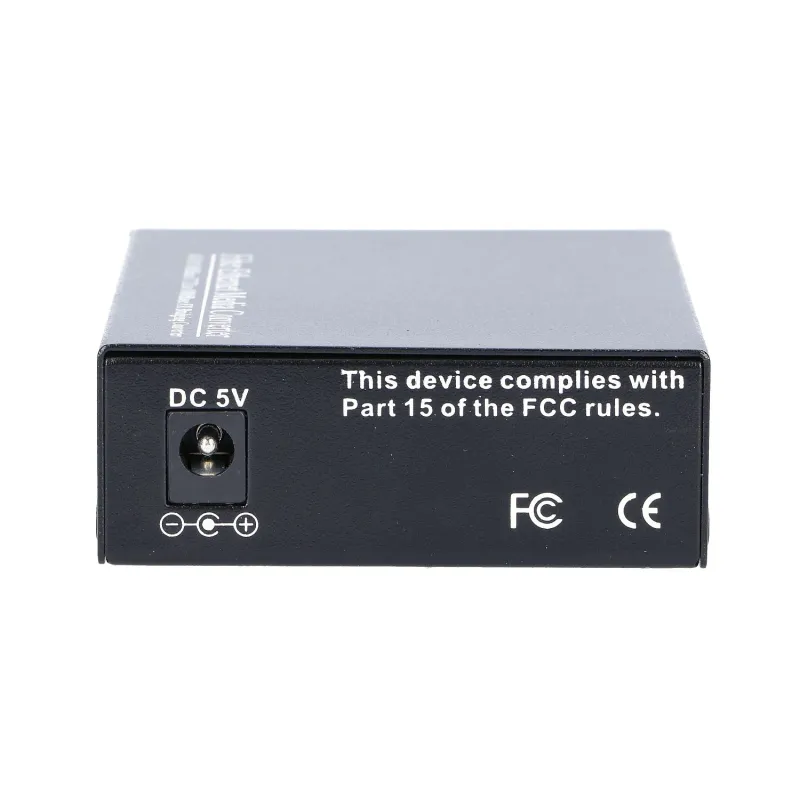

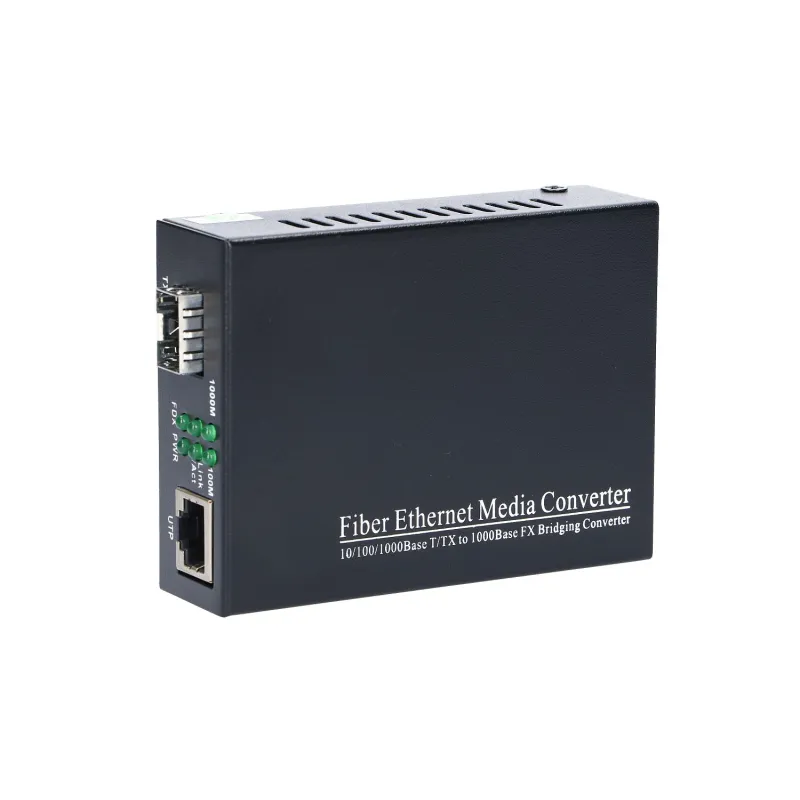

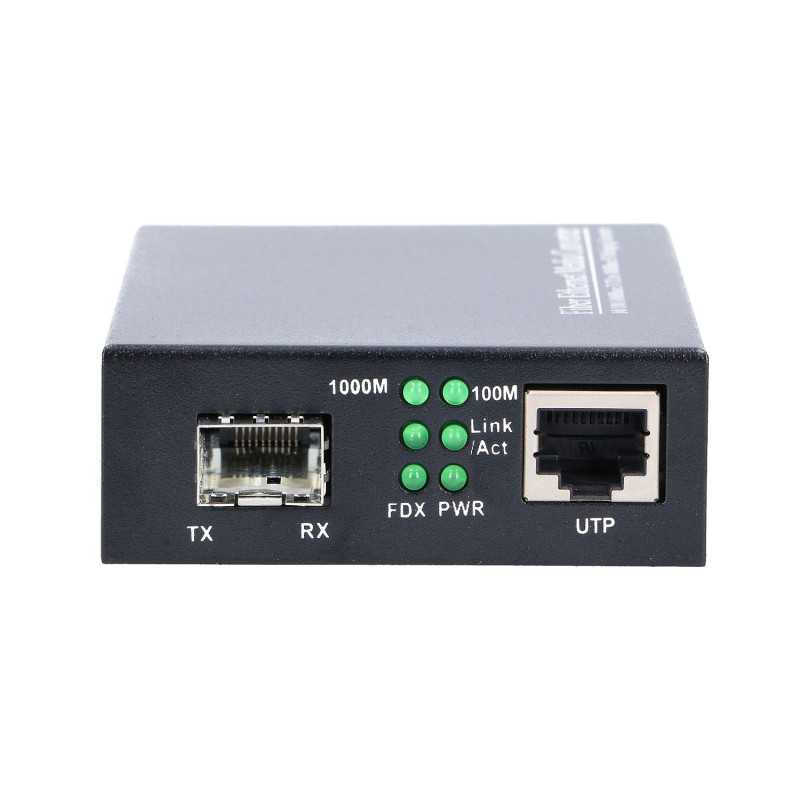

Extralink SEDIR media converter, optical fibre - Ethernet cable
Extralink Sedir is a media converter that converts the transmission of media between FTP/UTP copper cables and SFP (Small Form-Factor Pluggable) optical transmitter-receiver. The media converter from Extralink is designed to meet the huge needs of Ethernet deployment and allows it to be extended via fiber optic cable over a maximum distance of 80 km (depending on the SFP module used). Installation and operation procedures are very simple. The device status can be monitored locally by a set of diagnostic LEDs on the front panel.
Features:
- Easy installation and use
- Easy problem detection
- Plug-and-play
- Conversion from 100Base-TX/FX or 1000Base-T to 1000BASE-SX/LX
- Jumbo Frame support (64-9216 bytes)
- Conversion between different transmission speeds and types of transmission media
- Can be installed in a 2U 14/16 slot housing
- Ethernet port authentication (Half/Full Duplex)
- Auto MDI/MDI-X support
Extralink Sedir - a good price substitute
The Extralink Sedir model is a cheap substitute for TP-LINK MC220L media converter.
Height 26.5 mm
Input voltage 100 V
Output voltage 5 V
LED indicators Activity
Width 70.6 mm
Depth 94 mm
Connectivity technology Wired
Input current 0.3 A
Maximum data transfer rate 1000 Mb/s
Data transfer rate 1000 Mb/s
DIN rail mounting No
Networking standards IEEE 802.3
Auto MDI/MDI-X Yes
Plug and Play Yes
Ethernet interface type Gigabit Ethernet
Hot-swap Yes
Reset button No
Web-based management No
Fiber optic connector SFP+
Duplex system Full
Jumbo frames 9216
Jumbo frames support Yes
Output current 1 A
Power over Ethernet (PoE) No
AC input frequency 50 Hz
Wavelength 1 nm
Copper ethernet cabling technology 1000BASE-T
Product colour Black
Converter output interface 1000Base-FX
Converter input interface 1000Base-T
Maximum transfer distance 10000 m
Fiber ethernet cabling technology 1000BASE-FX
Watch case material Metal
Internal Yes
