Huawei HS8145V5 | ONT | AC1200, Dual Band, 1x GPON, 4x RJ45 1000Mb/s, 1x RJ11, 1x USB

Huawei HS8145V5 - GPON ONU client terminal for home network

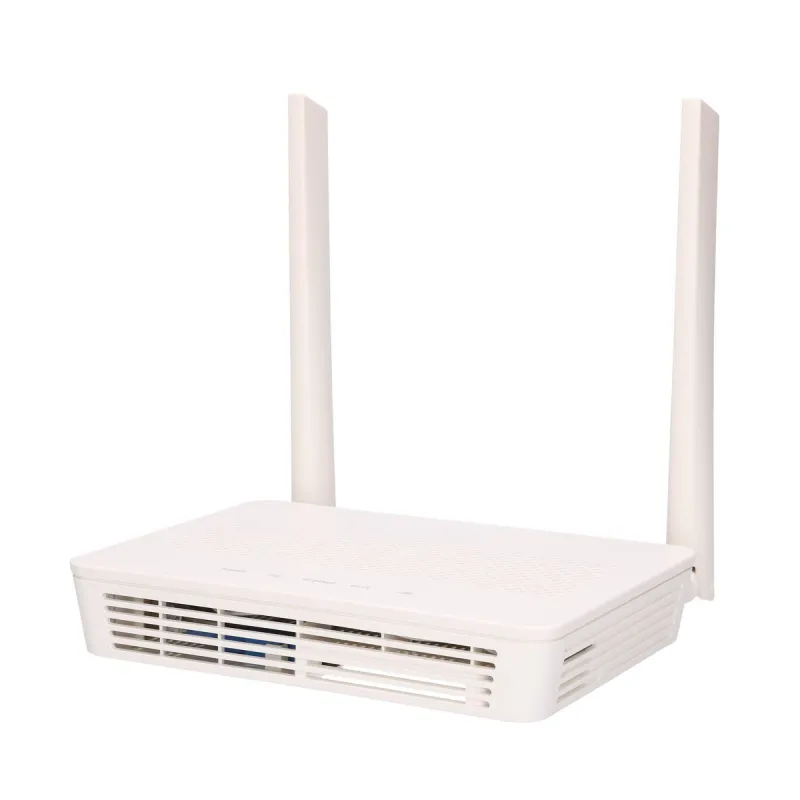

Huawei HS8145V5 is a GPON (ONT - Optical Network Terminal) designed as an ideal device for home gateway units (HGU - Home Gateway Unit) to be used in FTTH networks. This gateway supports Layer 3 functionality to facilitate the creation of a smart home network. It provides the user with access to all Triple-play services (Internet, VoIP telephony, IPTV). Huawei HS8145V5 has been equipped with 4 Gigabit Ethernet ports, 1 telephone port (1x POTS) and 1x USB. HS 8145V5 has been equipped with built-in wireless Wi-Fi radio operating in 2.4 and 5 GHz bands simultaneously (dual band). It supports modern AC standard and 2x2 MIMO dualchain technology, the maximum theoretical transmission speed is up to 300 Mbps in 2.4 GHz band and 867 Mbps in 5 GHz band. The device has two external antennas, each with 2 dBi gain. The set includes DC 12V 1.5A adapter with European plug.

Main features - ONT Huawei hs8145v5 GPON ONU

Main features - ONT Huawei hs8145v5 GPON ONU

• terminal GPON ONT class B+

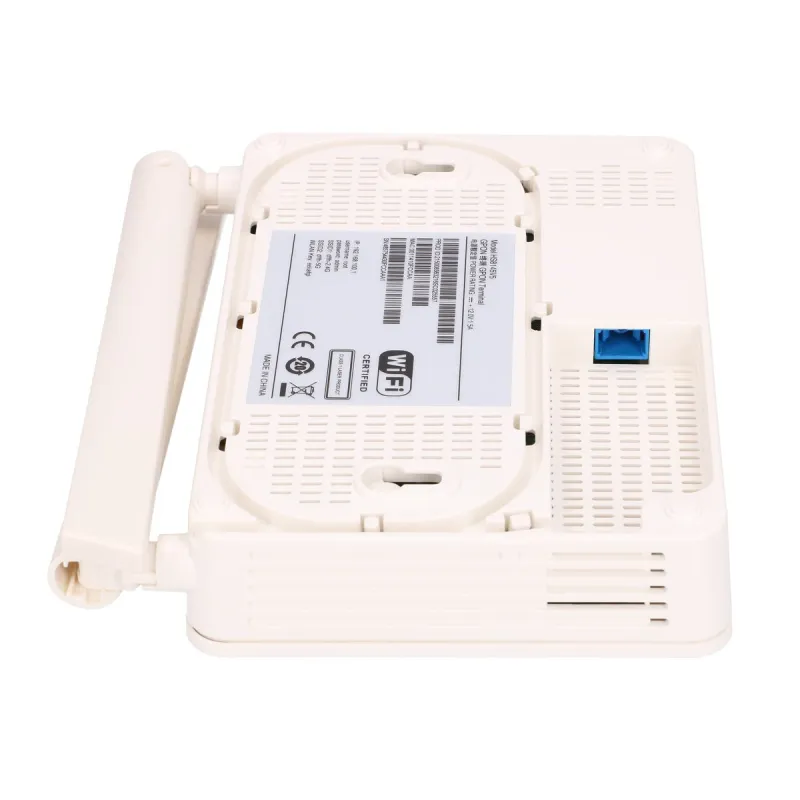

• fiber optic connector port GPON SC/ UPC

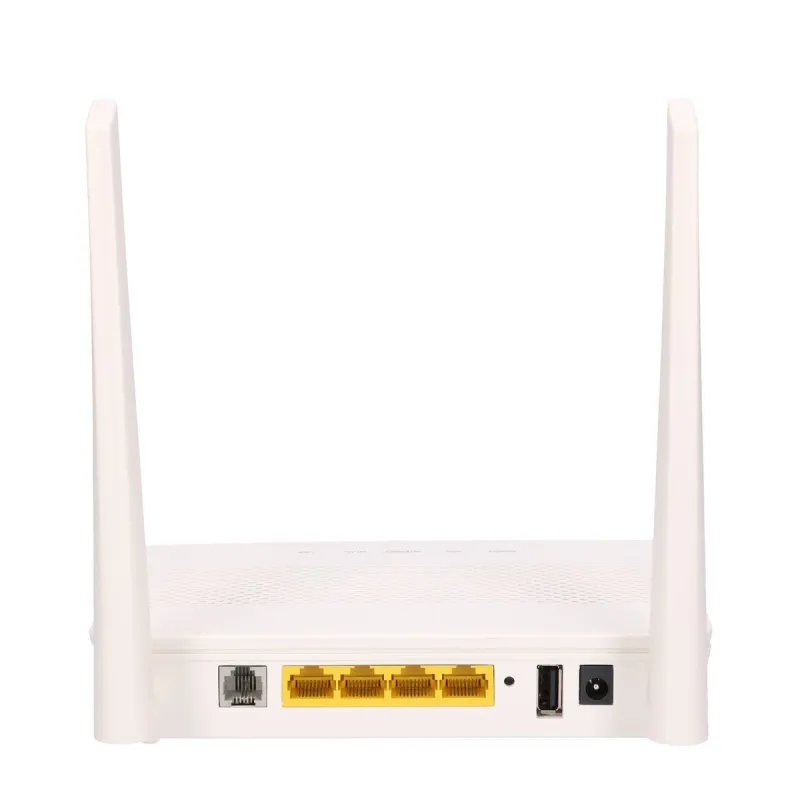

• 4 RJ-45 10/100/1000 Mbps Gigabit Ethernet LAN ports
• 1x USB
• 1 POTS phone port (1x POTS RJ11)
• dual-band 2.4 GHz and 5 GHz AC Wi-Fi transmission
• supports modern ac standard and 2x2 mimo dualchain technology
• external 2 dBi antennas
• maximum theoretical transmission throughput is up to 300 Mb/s in the 2.4 GHz band and 867 Mb/s in the 5 GHz band
