Huawei MA5683T | OLT | 2x GICF, 2x SCUN, 2x PRTE, no PON board

3,542.40 zł gross / piece gross / piece

EAN: 5907207222226

Reference: MA5683T NO PON CARDS

Availability Last items

Choose an additional protection option:

Payments methods

przelewy.jpg google-pay.jpg apple-pay.jpg mastercard.jpg visa.jpg blik.jpg mbank.jpg paypo.jpg payu.jpg

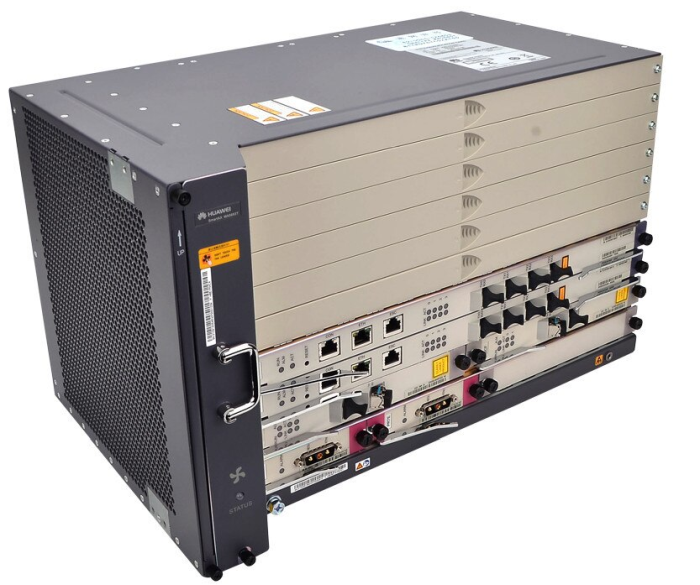

Huawei MA5683T

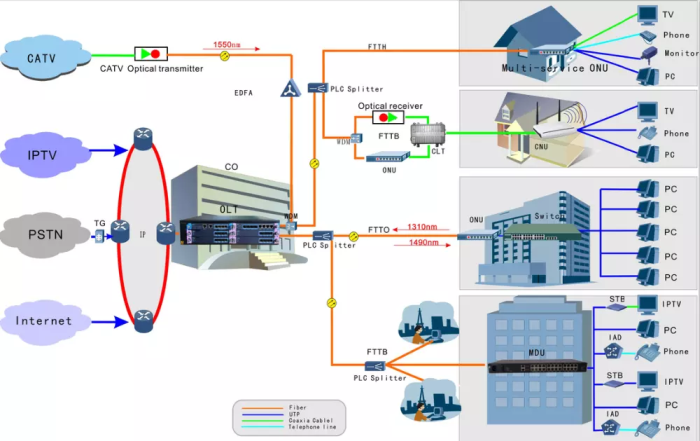

The first global all-in-one access platform is an integrated fiber and copper access device. With this GPON-enabled device, users will be able to access high-speed Internet, voice and video services such as IPTV and VoD. The MA5683T OLT will simplify network architecture, improve network reliability and significantly reduce total cost of ownership.

MA5683T 2*GICF, 2*SCUN,2* PRTE, NO PON BOARD

Modular design

Huawei MA5683T is a modular optical line aggregation terminal that combines compactness and functionality in connecting up to 12,000 subscribers through GPON technology. High density is achieved with the ability to install 6 service boards of 8 to 16 ports each. The modular design allows seamless expansion of chassis capacity by installing new boards or replacing 8-port boards with 16-port boards.

MA5683T 2*GICF, 2*SCUN,2* PRTE, NO PON BOARD

Features of the Huawei MA5683T model

The Huawei MA5683T is a modular optical line terminal (OLT) that can support up to 12,000 subscribers (GPON). The device has a GICF uplink card. The modular optical line terminal (OLT) has 13 slots:

  • 6 service board slots;
  • 2 slots for main control boards;
  • 2 slots for GIU upstream boards;
  • 2 power board slots;
  • 1 slot for a common interface board.
MA5683T 2*GICF, 2*SCUN,2* PRTE, NO PON BOARD

Contents of the kit



  • MA5683T enclosure
  • two GICF cards
  • two SCUN cards
  • two PRTE cards
  • fan module
  • accessories
