Extralink 24 Port | PoE Injector | 24x 100Mb/s RJ45, Rackmount

PoE injector power strip, 24 ports - reliable power system

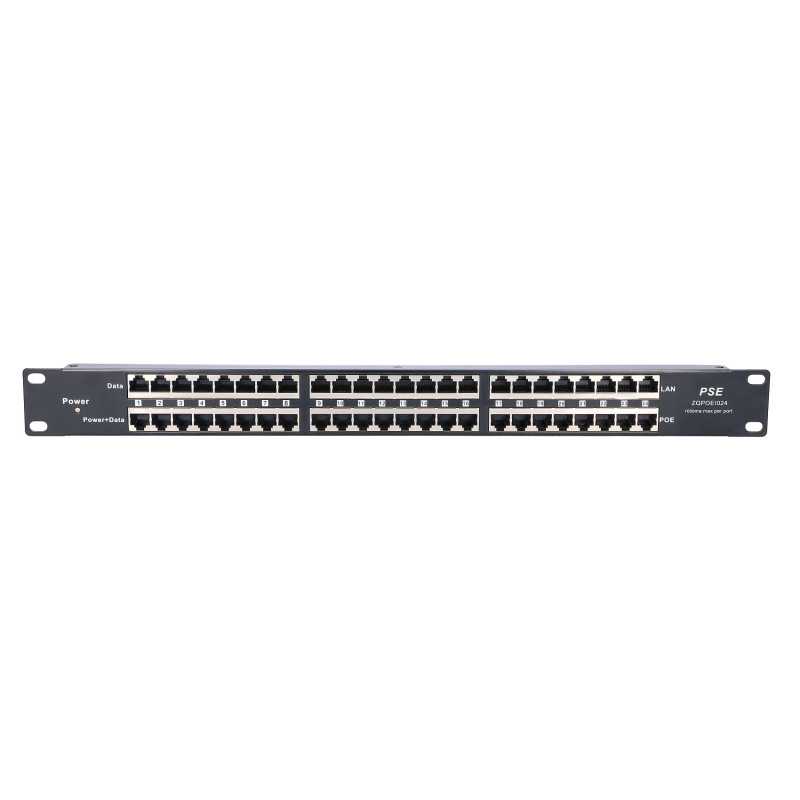

The Extralink power strip has 24 ports with 10/100 Mbit/s bandwidth. The top RJ45 sockets are LAN/switch/PC ports, where pins 1/2 and 3/6 are used for data transfer. The sockets below are both data and power ports, where pins 1/2 and 3/6 are for data and pins 4/5 ( ) and 7/8 (-) are for power. Power strip size: 1U (height), 19" (width) and 25 mm (thickness).

Features

• 24 10/100 M Ethernet ports
• Power supply from 24 V to 57 V
• 650 mA automatic fuse on each port
• For mounting in a 19'' rack
