ZTE GTGH C+ GPON Card, 16x SFP C+

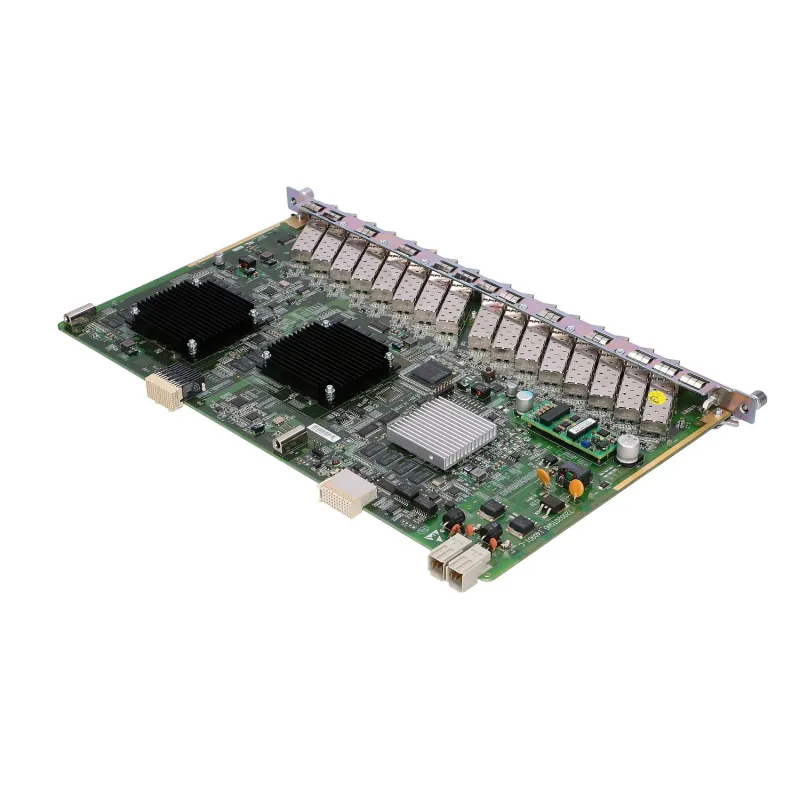

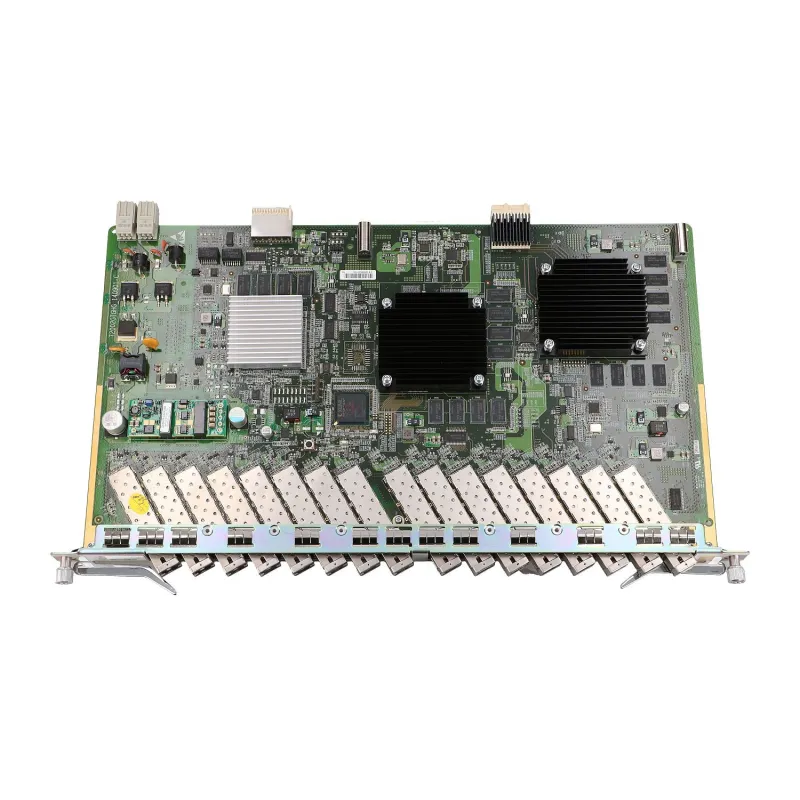

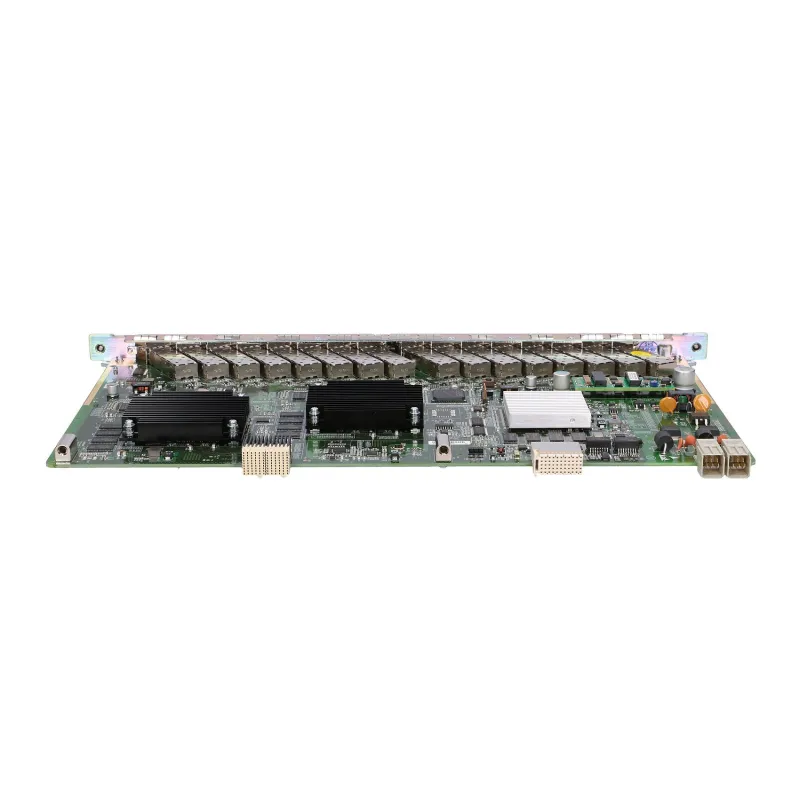

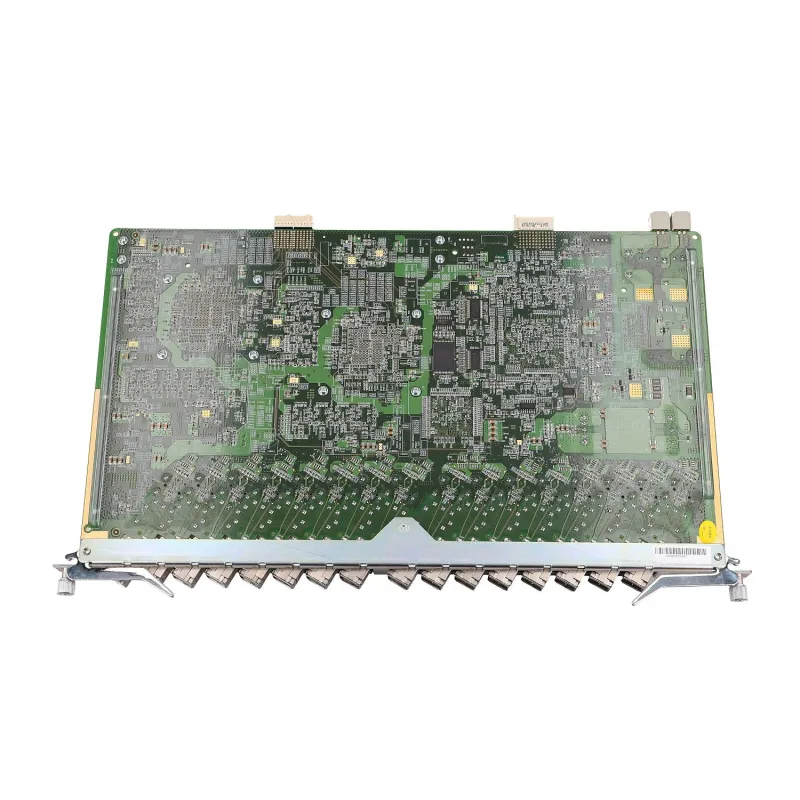

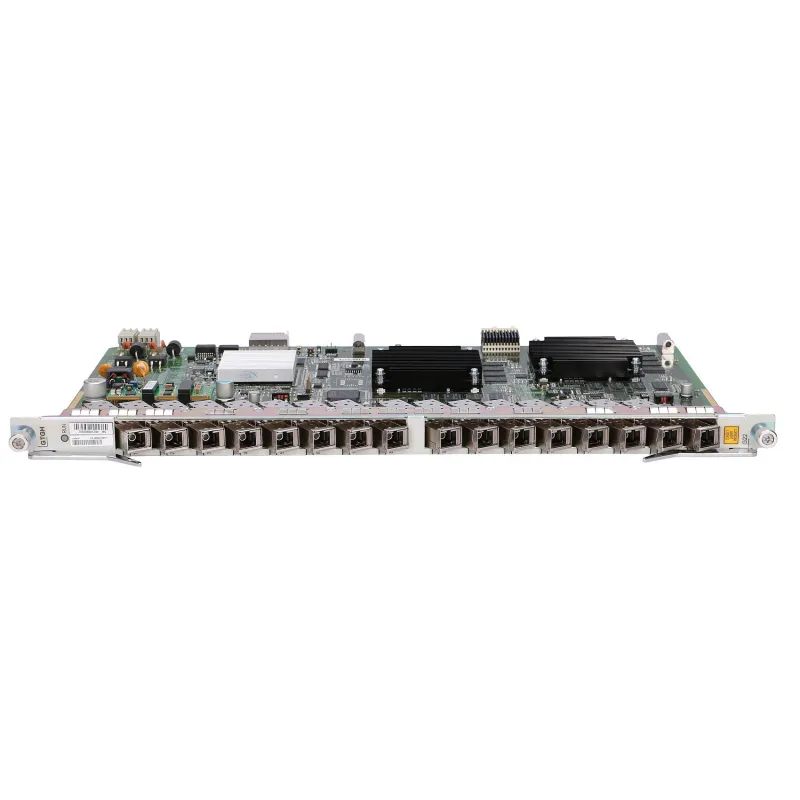

ZTE Card GTGH - 16-port GPON extension module for C300 platform

The GTGH Class C GPON subscriber card offers 16 GPON connectors with a 1:128 split ratio.

Module for extending network coverage

With 16 GPON ports, ZTE GTGH module allows for network expansion on a larger scale along with maintaining high speed and reliability, with distances between ONUs that are up to 20 km.

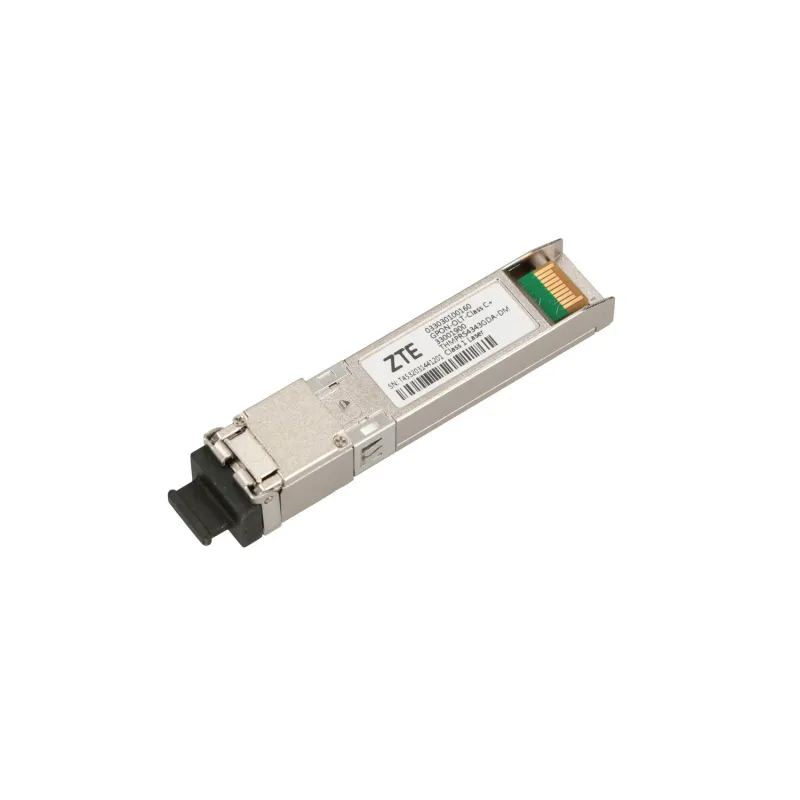

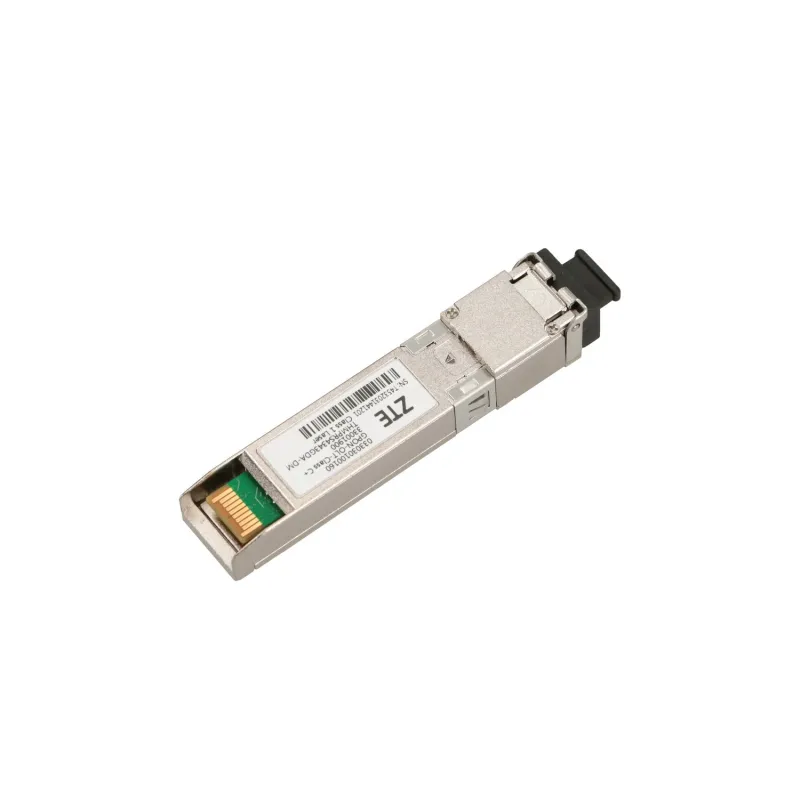

GPON SFP C (x16) module for ZTE GTGO card

ZTE SFP C is a single mode GPON insert dedicated for GTGO card. The SFP GPON optical module transmits data over single-mode fibers over distances up to 20 kilometers. The wavelengths are 1310 nm and 1490 nm and the optical power range is 3 to 7 dBm. The SFP C inserts are equipped with SC/UPC connectors. Data is transmitted at 1.25 Gbps and downloaded at 2.5 Gbps.

Special features of the SFP C

• Single-mode fiber support
• Wavelengths TX: 1490 nm/ Rx: 1310 nm
• 1 SC/UPC socket
• Throughput: 2.5 Gb/s downstream, 1.25 Gb/s upstream
• Range 20 km
