Extralink 12U 600x600 ASP Gray | Rackmount cabinet | wall mounted, metal door

EXTRALINK 12U 600X600 rack cabinet with tin doors

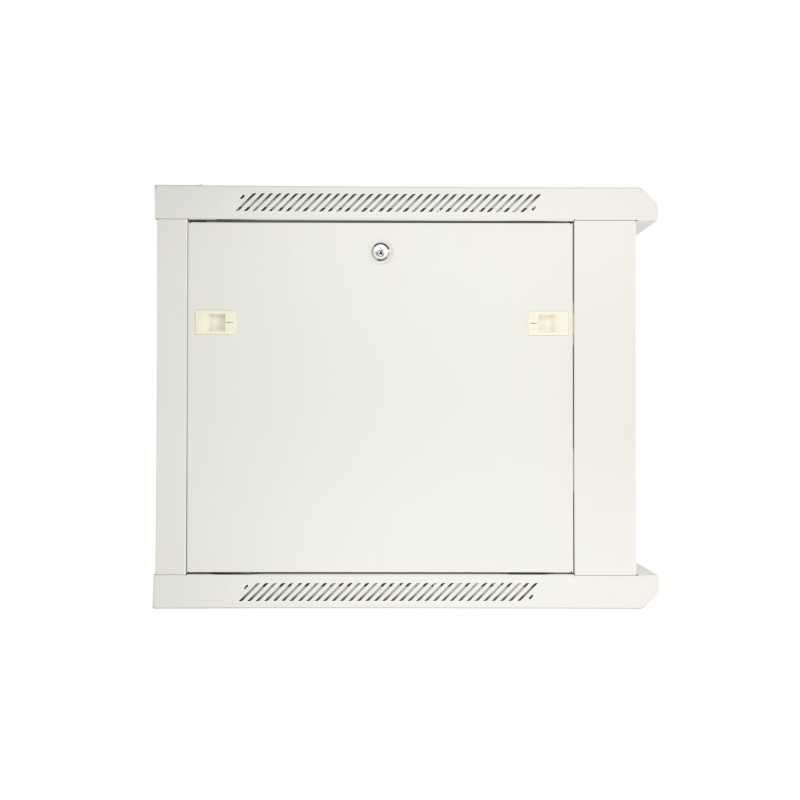

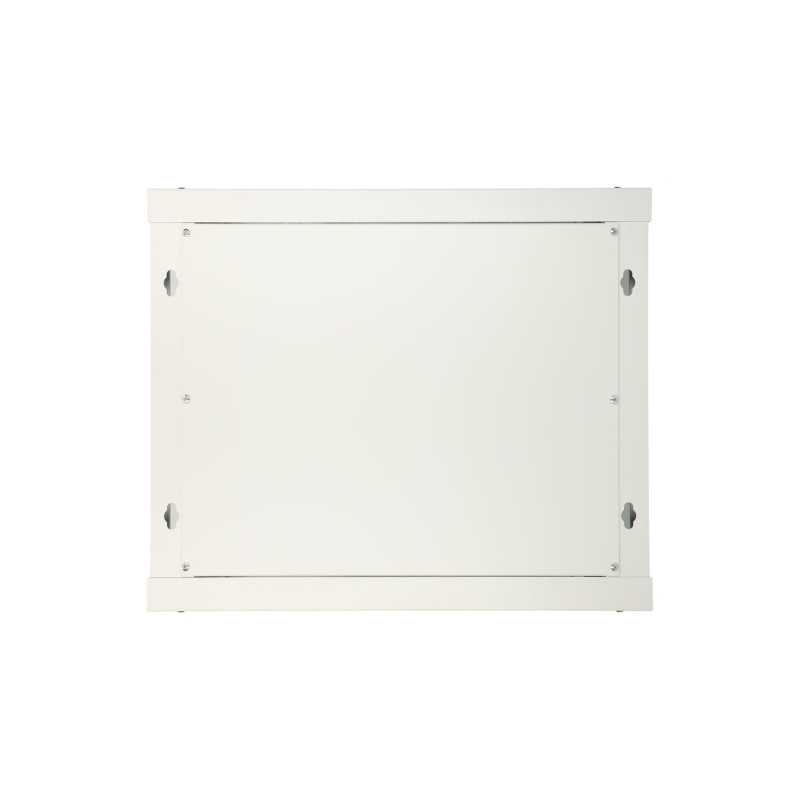

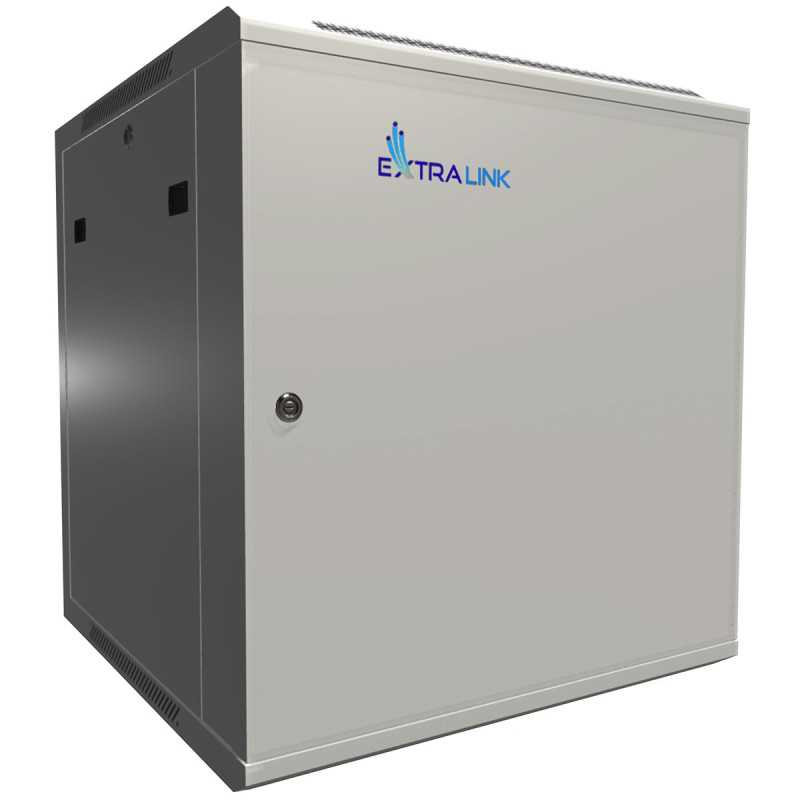

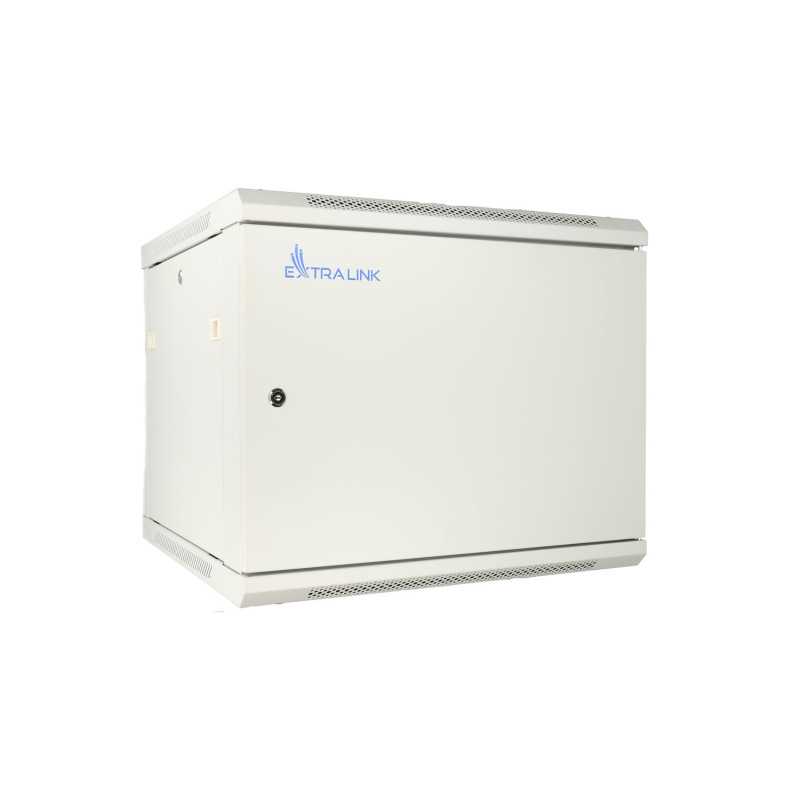

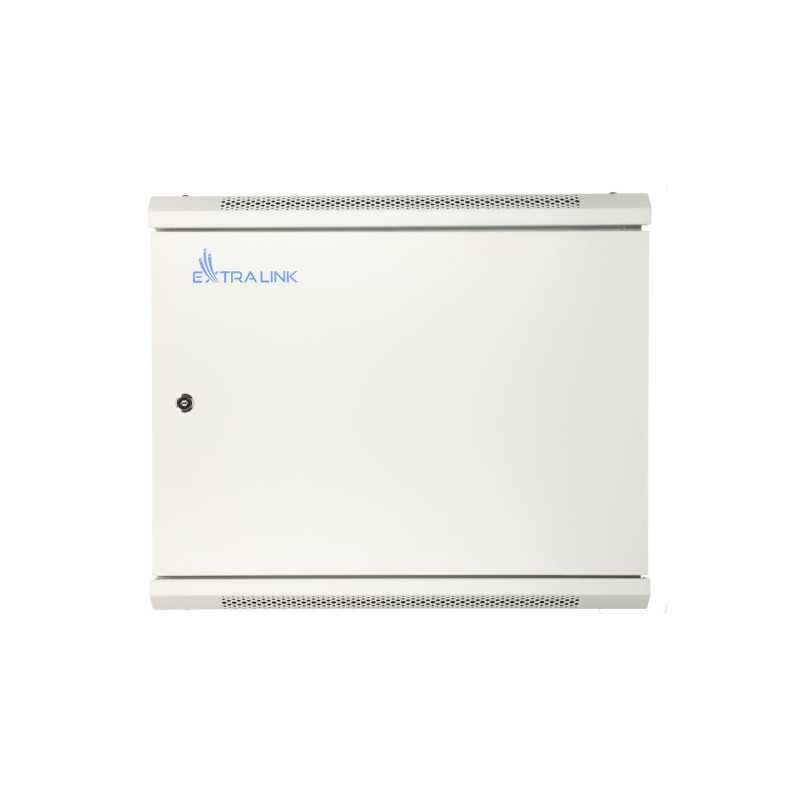

The Extralink rack cabinet is designed for wall mounting in offices, network server rooms and CCTV control rooms. The external walls are made of cold-rolled steel sheet. The doors can be opened to the left or right side.

Clearly marked height

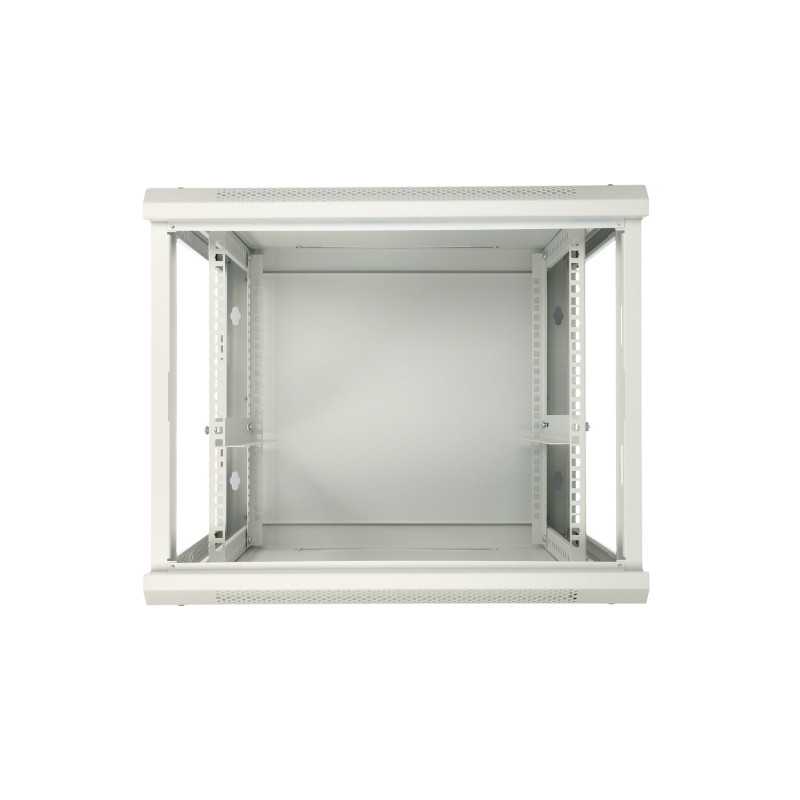

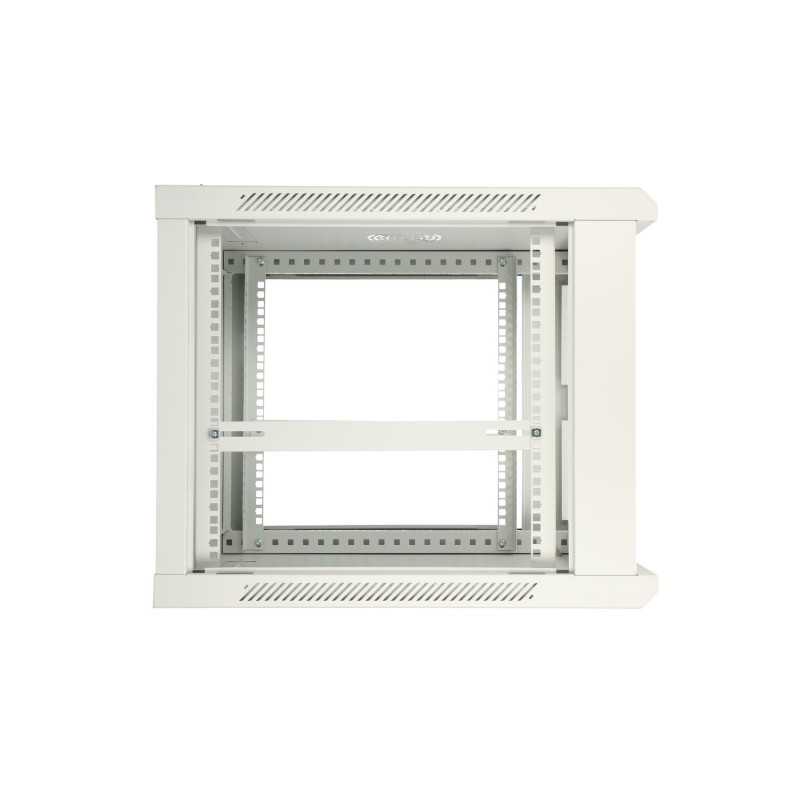

Vertical rails have a corresponding height designation, which is 12U (unit). The total height of the cabinet is 64 cm.

Easy removal of side walls

Snap fasteners on the side walls allow for their disassembly. Locks and keys are included.

Ceiling adapted to the installation of fans

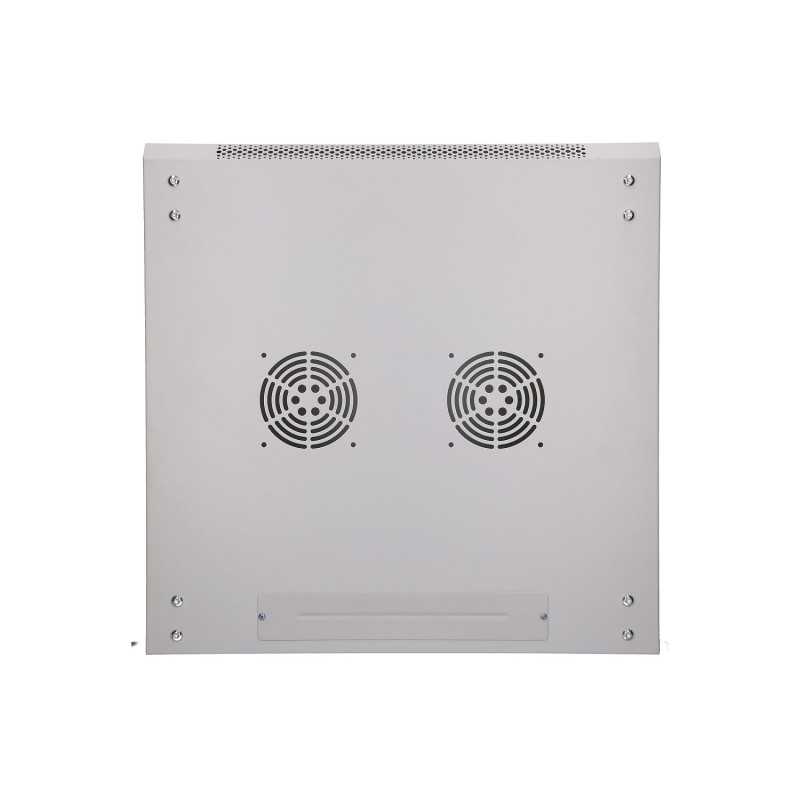

On the ceiling of the cabinet there are 2 places to install fans for better cooling of the devices and additional conduit for pulling out cables.

Wardrobe construction:

Features:

• Standard 19'' mounting, welded frame, reliable design
• The frame structure is prepared for self-assembly, thus it is easy to move and transport, reducing shipping costs
• Standing/Wall Mounting
• Easy installation (patent)
• Removable side panels
• Holes for cable entry on both the top cover and the bottom panel
• The door opening angle exceeds 180 degrees
