MikroTik SXTsq Lite2 | CPE | RBSXTsq2nD, 2,4GHz, 1x RJ45 100Mb/s

MicroTik SXTsq Lite2 Client device

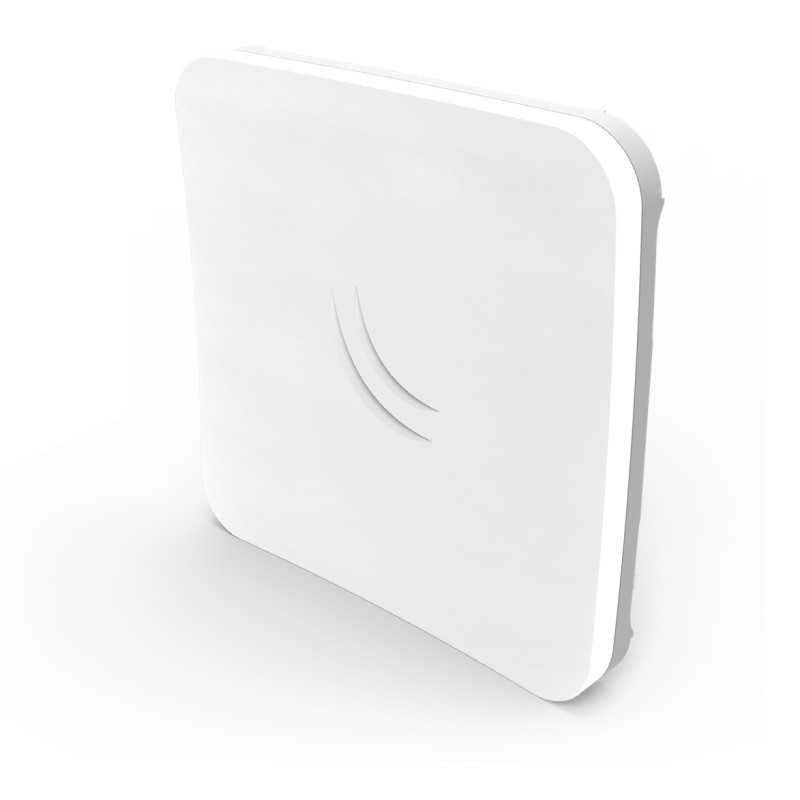

SXTsq Lite2 is a compact and lightweight wireless outdoor device with a built-in antenna. Ideal for point-to-point connections or as a CPE unit. It is compact, weather-resistant, and easy to mount. It is designed to operate in the 2.4 GHz band, supports IEEE 802.11 b/g/n standard and uses 2x2 MIMO (dual-chain) technology. The maximum theoretical throughput is 300 Mbps.

The SXTsq Lite2 antenna is twice as thin

The SXTsq Lite2 retains a 10 antenna and a 60° wide beam like the SXT Lite2, our previous model, but the design of the antenna has been improved and its size has been drastically reduced - the SXTsq is twice as thin.

SXTsq Lite2 easy to install and configure

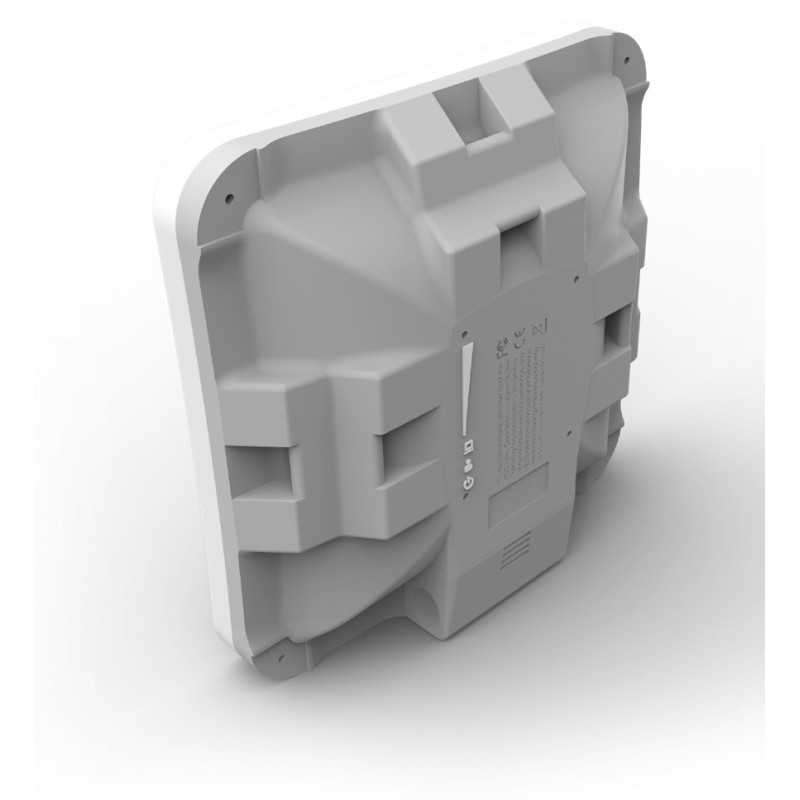

The housing has holes for direct fixing of the clamp in three different mounting locations, with the possibility of mounting on horizontal railings. The device has one 10/100 Mbit Ethernet port. There is also an easily accessible grounding that protects the device from lightning.

The device and the set contains everything that is important:

The device and the set contains everything that is important:

• The device contains one 10 / 100Mbi Ethernet port
• Powered by passive PoE
• input voltage range is 10 - 30 V DC
• 24 V, 0.38 A and PoE injectors are included in the package

The most important features:

The most important features:

• maximum transmission power 30 dBm
• integrated antenna with 10 dBi gain
• operation in the 2.4 GHz band
• Double polarity (dual-chain / 2x2 MIMO)
• Passive power supply via PoE
• Easy installation with the All-in-One housing
• LEDs indicating signal strength
• ESD protection up to 10kV ESD on the radio

Wireless network specifications:

Wireless network
