Ubiquiti UDW Dream Wall | Console | Wi-Fi6, 10G SFP+, 1G RJ45 PoE++, 2.5G RJ45 WAN, touchscreen

Ubiquiti UDW dream wall - Internet gateway, WiFi access point and UniFi console in one device

If you're looking for a solution to build and manage a smart home or office network, the Ubiquiti UDW Dream Wall is made for you. This versatile device combines the functions of an Internet gateway, WiFi access point and UniFi console to provide performance, security and ease of use. The Ubiquiti UDW Dream Wall allows you to connect and control multiple UniFi devices from different series, such as Network, Protect, Access, Talk and Connect. This allows you to create a cohesive and integrated network that meets your needs.

Ubiquiti UDW Dream Wall - key features

Internet gateway with WiFi 6 and 3.5 Gbps routing

The Ubiquiti UDW Dream Wall is not only a UniFi system controller, but also an advanced Internet gateway that provides a fast and stable network connection. The device supports WiFi standard 6 (4x4 MIMO), which offers higher throughput, lower latency and better support for multiple wireless devices. The device can operate as a WiFi access point with a maximum throughput of 300 Mbps in the 2.4 GHz band and 2.4 Gbps in the 5 GHz band. The device also has a router function with a powerful quad-core ARM Cortex-A57 processor clocked at 1.7 GHz and 4 GB of RAM. The device provides 3.5 Gbps routing, which means it can handle large amounts of data.

UniFi console with full support for UniFi OS Console and UniFi apps

The Ubiquiti UDW Dream Wall is also a UniFi System Console, which allows you to manage all connected UniFi devices from a single app. The device supports the full UniFi OS Console and UniFi apps, which offer an intuitive user interface and rich configuration and monitoring features. You can easily add new UniFi devices to your network, update their software, change network or security settings, create automation scenarios or guest hotspots. You can also use the UniFi Protect app to manage your video surveillance system or the UniFi Access app to manage your access control system.

Rich equipment

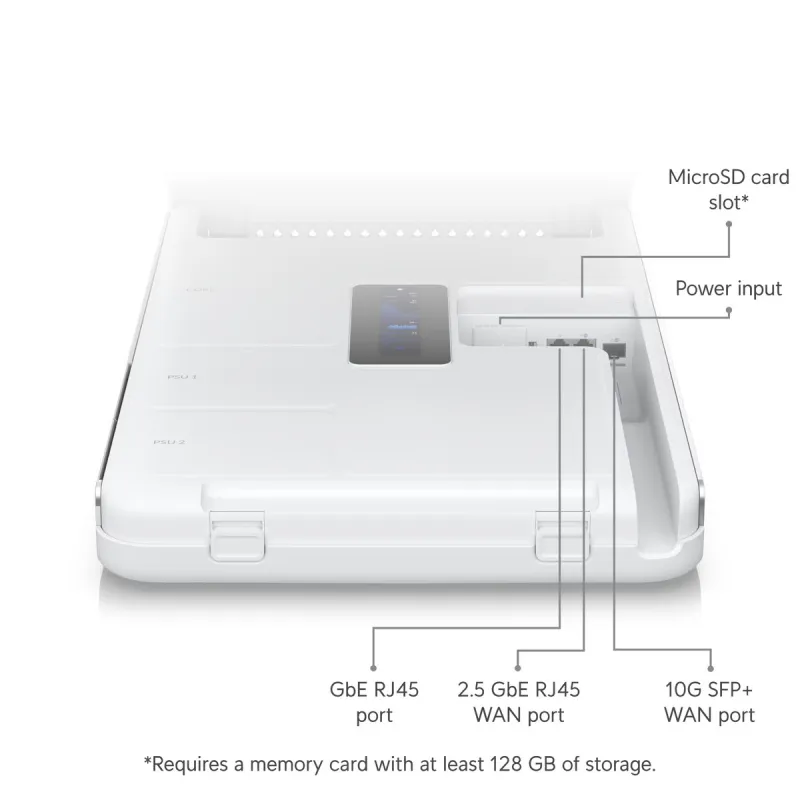

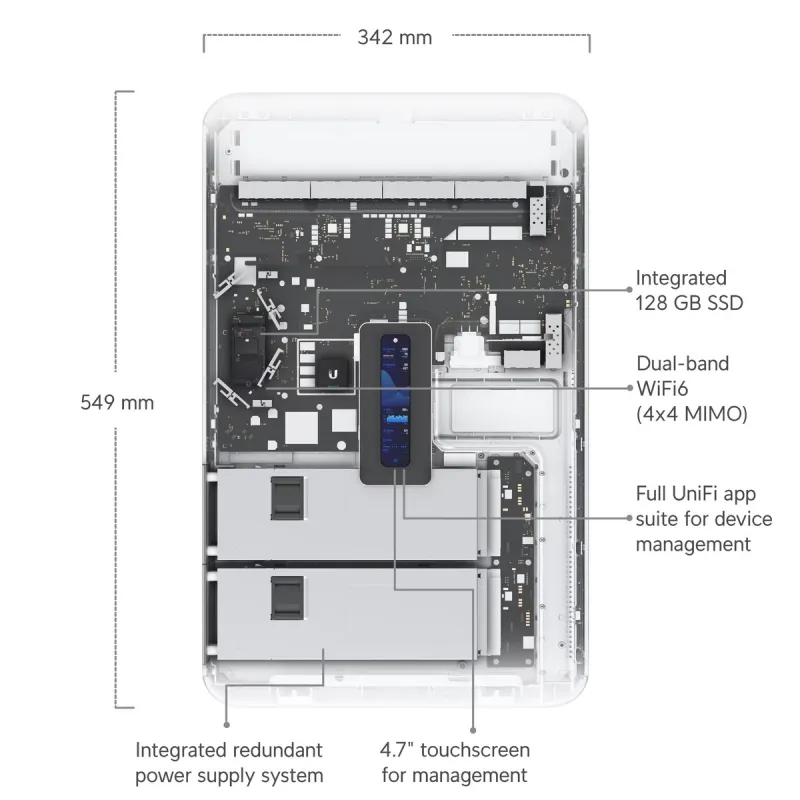

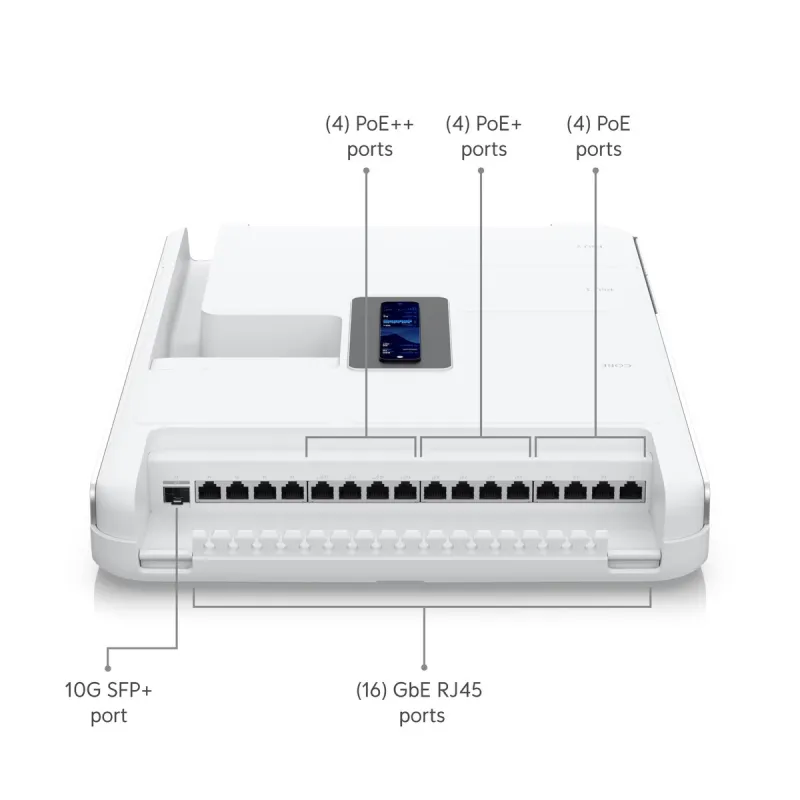

The Ubiquiti UDW Dream Wall has rich features that allow you to connect multiple devices to your network. The device has 17 GbE RJ45 LAN ports, including 4 PoE ports , 4 PoE ports and 4 PoE ports that can power other PoE devices. The device also has 2 10G SFP ports and 1 2.5GbE RJ45 WAN port, which can be used to connect high-speed Internet connections or other network devices. The device also has a 4.7-inch touchscreen for management and an integrated 128GB SSD and a pre-installed 512GB microSD card for data storage.

Easy installation

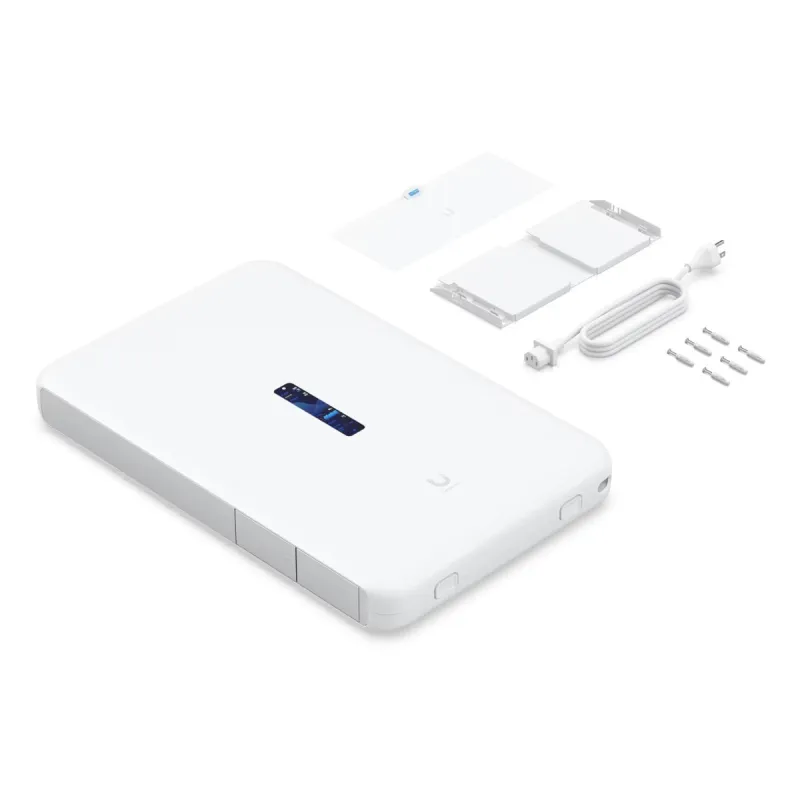

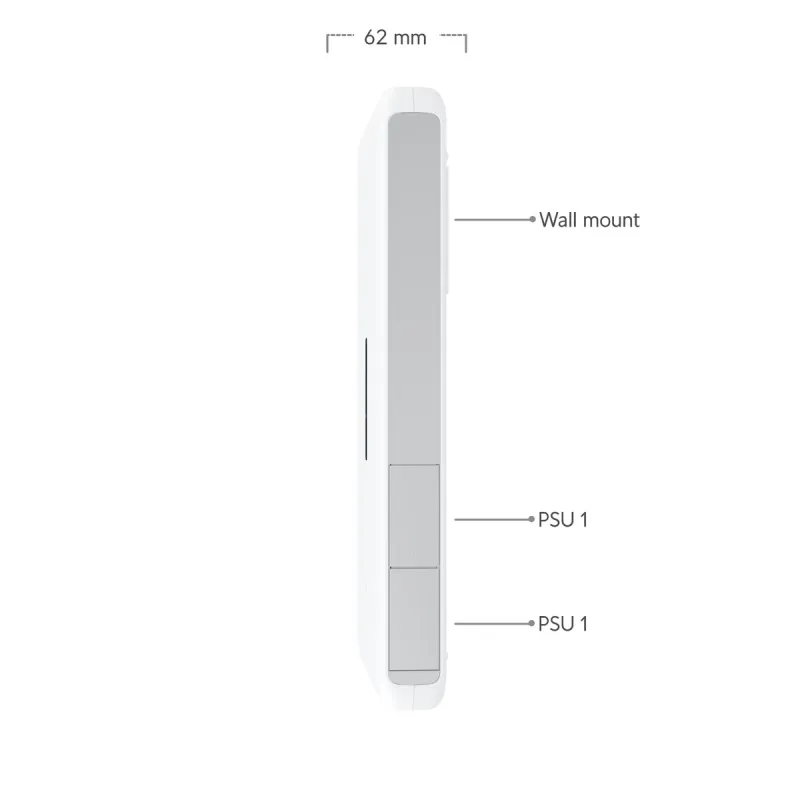

The Ubiquiti UDW Dream Wall is easy to install and use. The unit can be mounted on the wall using the included mounting kit. The device is powered by two removable 550W AC/DC power supplies, one of which is pre-installed. The device can be controlled using the UniFi mobile app.
