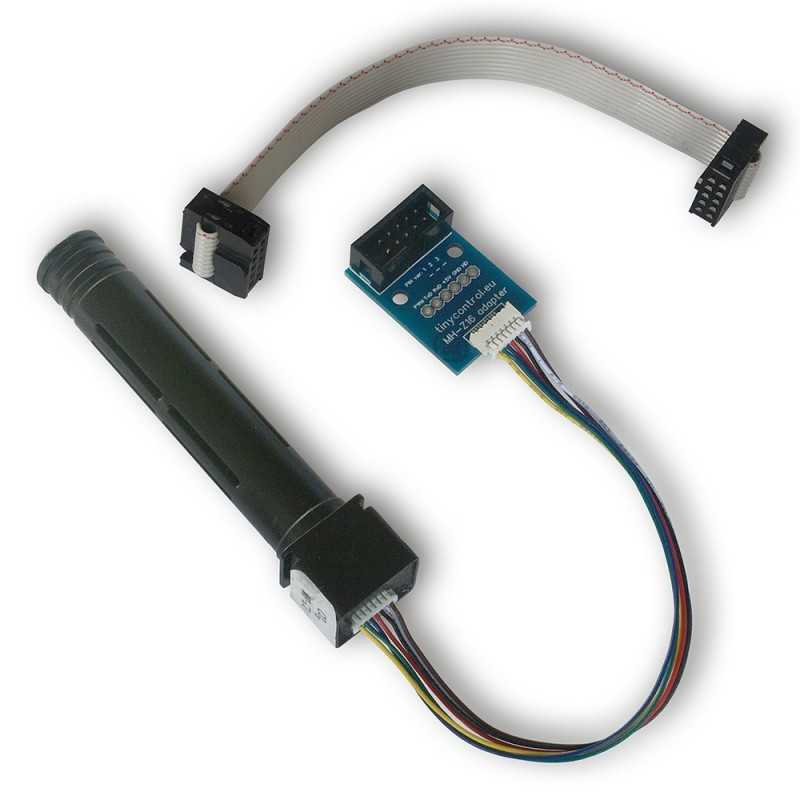

MH-Z16 Tinycontrol module, carbon monoxide sensor

Tinycontrol CO2 Sensor MH-Z16

Tinycontrol MH-Z16 is a carbon dioxide sensor designed for Lan Controller v3. The connection to the control board is made via UART.

Product Features:

• High sensitivity and resolution
• Low energy consumption
• Data on Output: UART, analog voltage signal, PWM wave
• Short response time
• Temperature compensation, accurate output linearity
• High stability

Technical specifications

• Supply Voltage: 4.5 V ~ 5.5V DC
• Current consumption: < 85 mA
• Logic voltage: 3.3 V
• Measuring range: 0 to 5000 ppm
• Output signal: PWM UART
• warm-up time: 3 min
• Response time T90 < 30 s
• Working temperature: 0℃ ~ 50℃
• Environmental humidity: 0~95%RH
• Weight: 21 g
