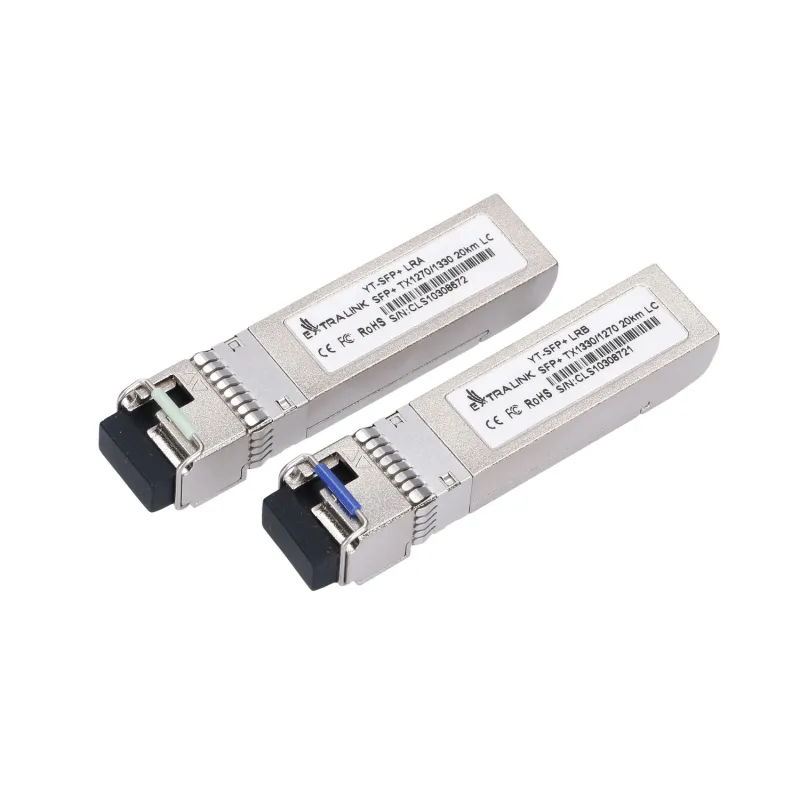

Extralink SFP+ 10G | SFP+ WDM Module | 10Gbps 1270/1330nm, single mode, 20km, LC, DOM, pair, dedicated for HP/ARUBA

A set of cost-effective 10G 1270/1330NM SFP modules dedicated to HP/Aruba.

A set of two single-mode SFP inserts operate bi-directionally on a single fiber at wavelengths of 1270/1330 nm and at a maximum distance of up to 20 km. The electrical interface of the 10G fiber SFP module complies with SFI electrical specifications. The receiver converts 10 Gbit/s serial optical data into PECL/CML serial electrical data. The single-mode SFP insert is equipped with a two-wire I2C serial interface for serial identification, digital diagnostics and module control. The enhanced digital diagnostics monitoring interface provides real-time access to the SFP optical module, guaranteeing monitoring of received optical power, laser beam current, laser output power, etc. The single-mode SFP modules work with 10 Gbps Ethernet, SONET/SDH routers and switches, 10G/8.5G/4.25G/2.125G/1.0625G fiber channels and other 10 Gbps optical links. The 1270/1330NM SFP inserts are dedicated to HP/Aruba devices.

Special features
