Extralink SFP+ 10G | SFP+ WDM Module | 10Gbps 1270/1330nm, single mode, 2km, para

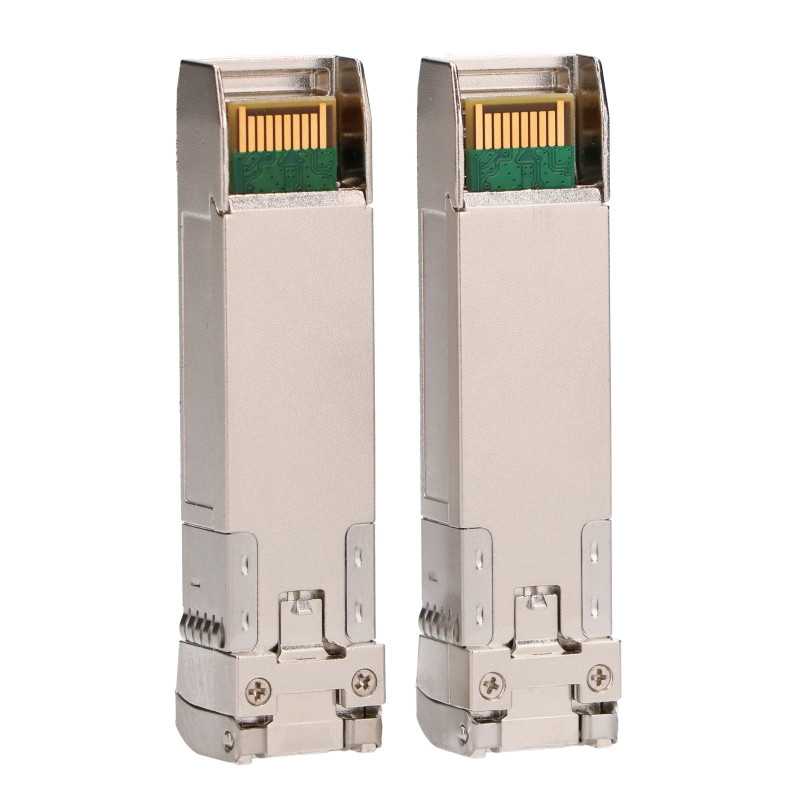

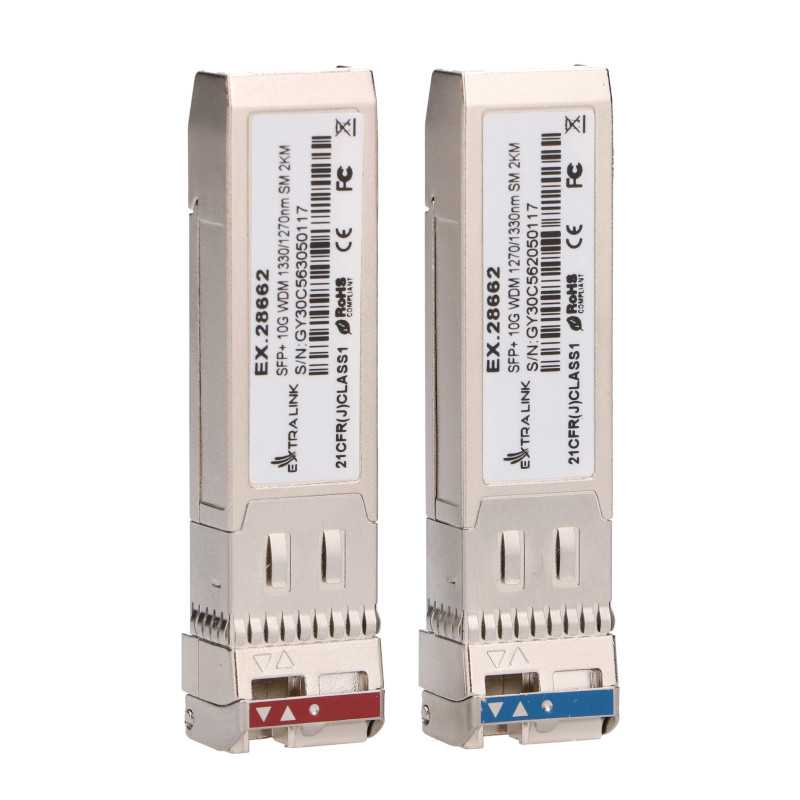

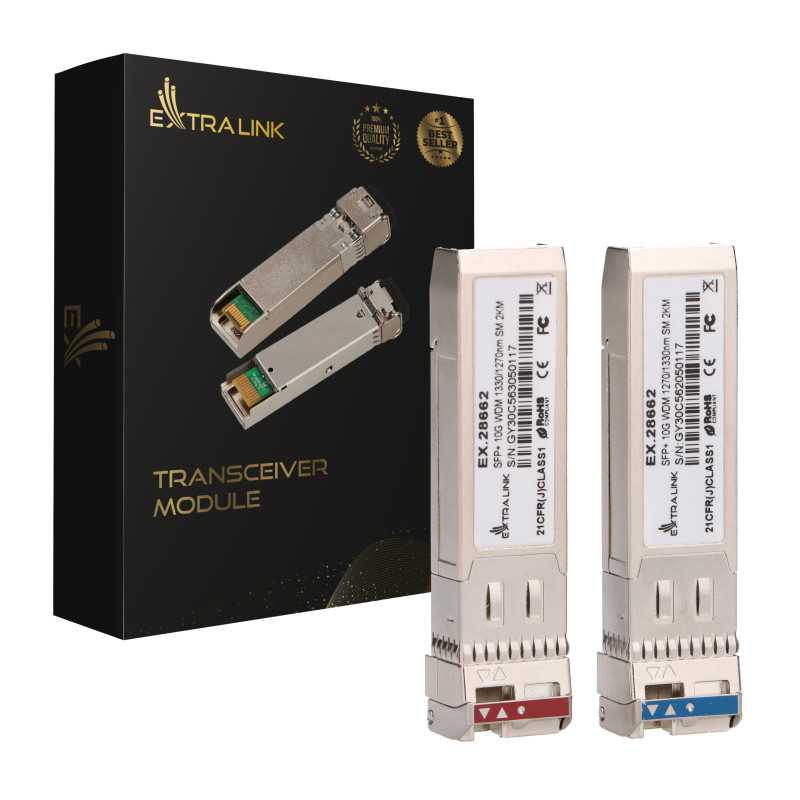

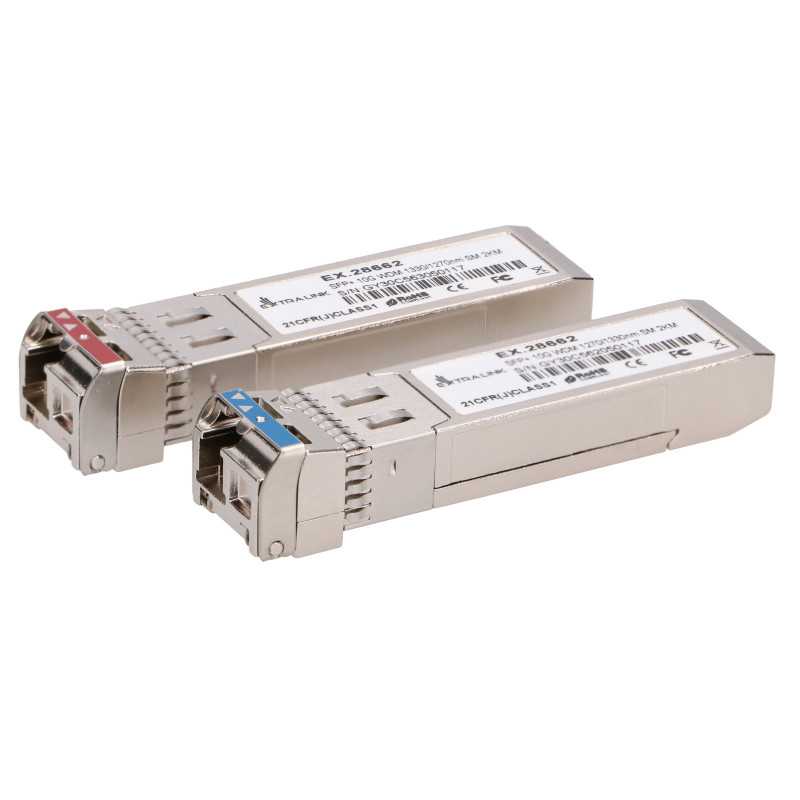

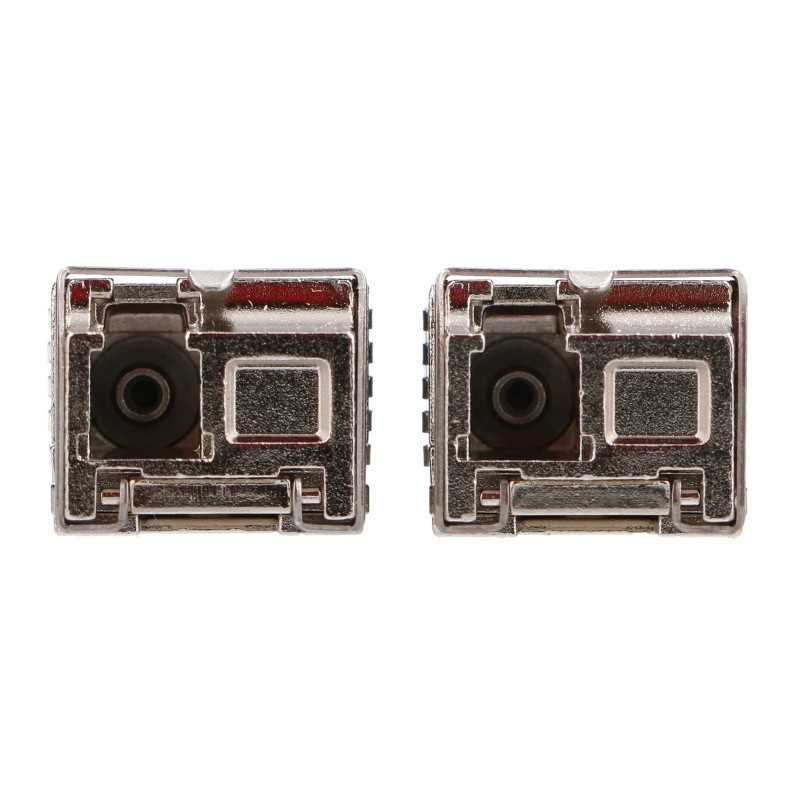

A set of cost-effective 10G WDM 1270/1330nm SM 2km SFP modules

A set of two single-mode SFP inserts operate bi-directionally on a single fiber at 1270/1330nm over distances of up to 2km. The electrical interface of the 10G fiber SFP module conforms to SFI electrical specifications. The receiver converts 10Gbit/s serial optical data into PECL/CML serial electrical data. The single-mode SFP insert is equipped with a two-wire I2C serial interface. I2C is used for serial identification, digital diagnostics and module control. An enhanced digital diagnostics monitoring interface provides real-time access to the SFP optical module to monitor received optical power, laser beam current, laser output power, etc. The single-mode SFP modules are dedicated to work with 10Gbps Ethernet, SONET/SDH routers and switches, 10G/8.5G/4.25G/2.125G/1.0625G fiber channels and other 10Gbps optical links.

Special features
