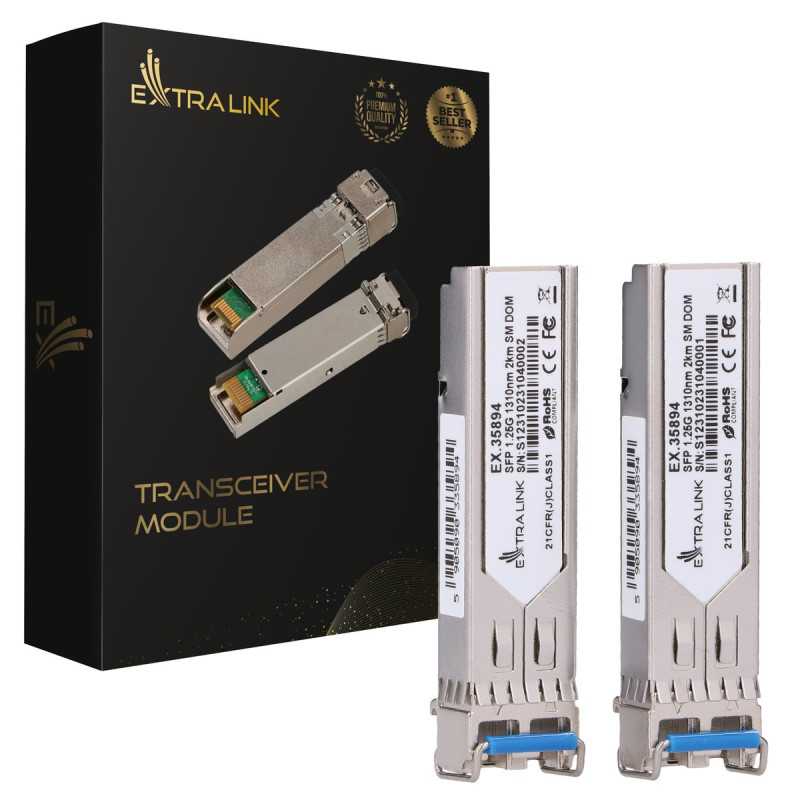

Extralink SFP 1.25G 2-pack | SFP Module | 1,25Gbps, LC/UPC, 1310nm, 2km, single mode, DOM

Extralink's 1.25G specification SFP module with a data rate of up to 1.25 Gbps has an LC/UPC connector and 1310 nm wavelength enabling a transmission range of up to 2 km in single-mode mode with a DOM function that allows real-time monitoring of operating parameters such as temperature supply voltage laser polarization current and transmitted and received optical power.

Technical details

Transceiver type fiber optic single mode maximum data rate 1250 Mbps 1.25 Gbps interface LC/UPC connector wavelength 1310 nm transmission range up to 2 km DOM function yes allows monitoring of operating parameters such as temperature supply voltage laser polarization current and optical power transmitted and received

Functional description

SFP Small Form-factor Pluggable module is a key component in telecommunication systems and computer networks where high data transfer rates are required its single-mode nature and 1310 nm wavelength make it ideal for medium distance applications up to 2 km providing a stable and reliable connection

Applications

Corporate networks providing high-speed connectivity between buildings or different floors in office buildings ISP infrastructure ISP interconnection between network nodes data centers interconnecting servers switches and other network devices surveillance systems transmission of security camera data over longer distances
