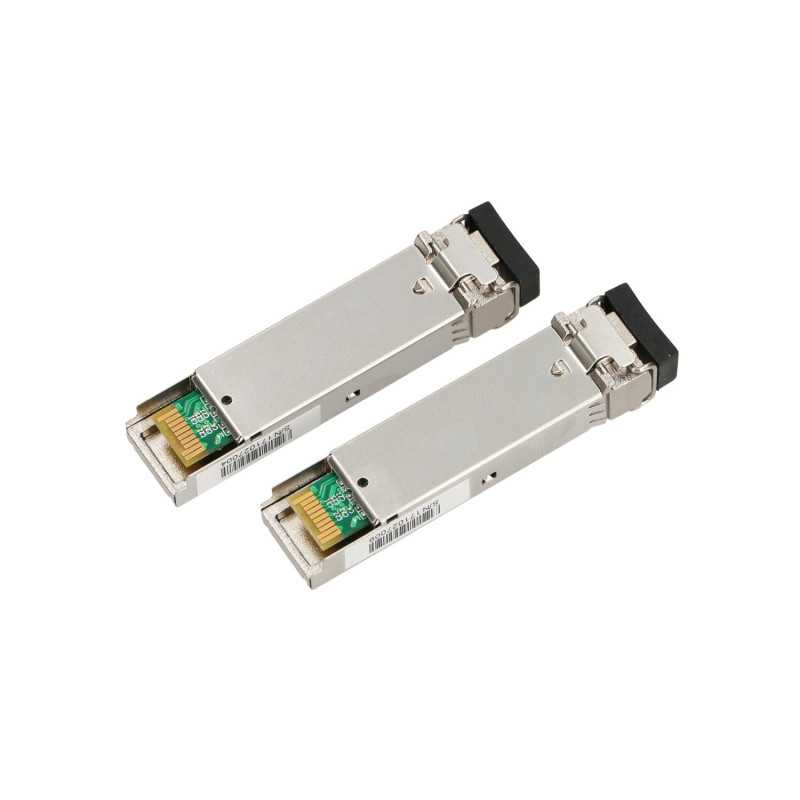

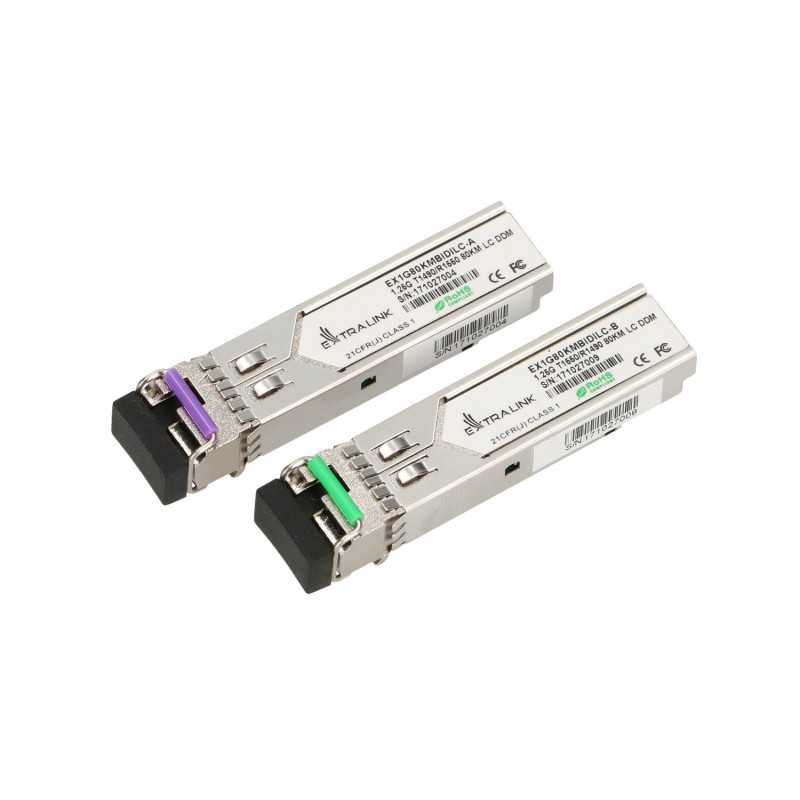

Extralink SFP 1.25G | SFP WDM Module | 1,25Gbps, 1490/1550nm, single mode, 80km, LC, DOM, pair

A pair of single-mode 1.25G WDM 1490/1550NM SM 80KM LC DDM SFP modules.

A set of Extralink SFP 1.25G WDM modules is designed for data transmission over single-mode fibers over distances of up to 80 km. The single-mode SFP insert consists of five sections, i.e. DFB laser transmitter, LD driver, PIN photodiode, limiting amplifier and MCU control unit. The SFP optical modules comply with the MSA (Small Form Factor Pluggable Multi-Sourcing Agreement) standard. They support data transmission rates of 1.25 Gbps. The connection of optical SFP modules can be done without interrupting the operation of the device.

Special features

Special features

• Single 3.3V power supply
• DFB Tx1550 nm DFB laser transmitter and PIN photodetector
• Support for data transfer rates of 1.25 Gbps
• Ability to connect an SFP optical module without interrupting the operation of the device
• Simplex LC connector interface
• Metal housing to reduce electromagnetic interference
• Up to 80 km on 9/125μm SMF
• Compatibility with SFP MSA and SFF-8472 digital diagnostics
• Safety certificate for class 1 laser
• RoHS compliance
