TP-Link TL-SM321A-2 | SFP Module | 1,25Gb/s, LC/UPC, 2km, 1550/1310nm, Single mode
EAN: 6935364072933
Reference: TL-SM321A-2
52.23 zł gross gross / meter 42,46 zł netto gross / piece
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods

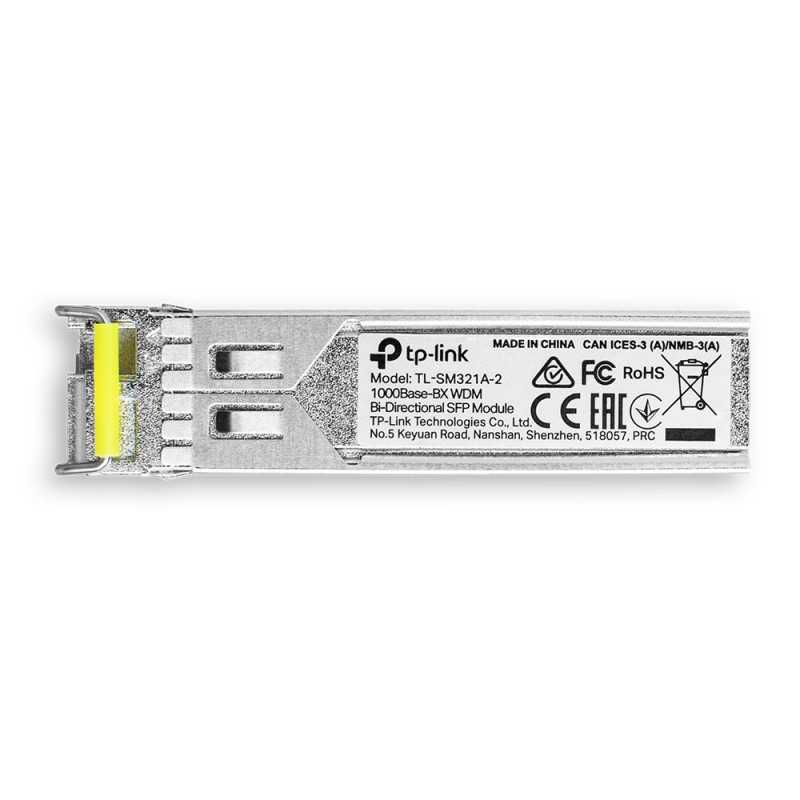

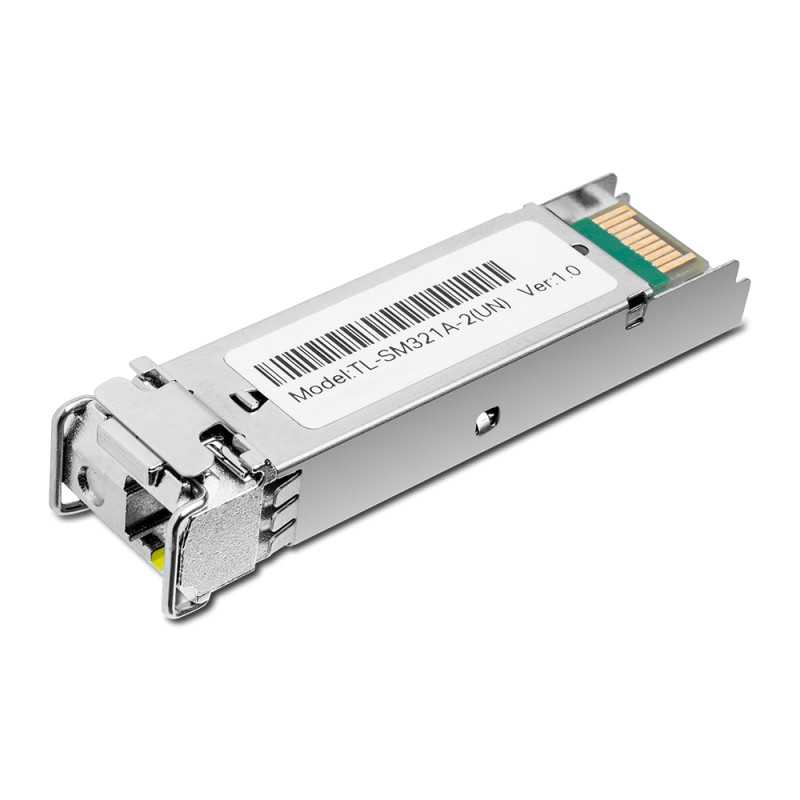

TP-LINK TL-SM321A-2
TP-Link 's TL-SM321A-2 module is designed in compliance with all SFP-MSA requirements. This bi-directional WDM optical transceiver is equipped with a fiber optic LC connector and enables data transmission over a distance of 2 km through a single-mode 9/125 μm fiber optic cable. Moreover, the device supports DDM function, compliant with the SFF-8472 agreement. DDM enables monitoring of transceiver parameters, including optical power at the input and output, and operating temperature. TL-SM321A-2 is applicable for short to medium range fiber networks and provides stable fiber connections for switches, routers, servers, etc.
Main features
- Use of the latest 1000Base-BX standard
- Transmission over distances up to 2 km on single-mode 9/125 μm fiber optic cable
- Compliance with SFP-MSA requirements
- Support for DDM function
- Hot Swap connect/disconnect capability
Regulatory Approvals CE, FCC
SFP transceiver type Fiber optic
Storage relative humidity (H-H) 5 - 90%
CD-ROM interface type SFP
Storage temperature (T-T) -40 - 80 °C
Compliance certificates RoHS
Maximum data transfer rate 1250 Mb/s
Package weight 60 g
Humidity measurement range 10 - 90%
Fiber cable diameters supported (core/cladding) 9/125 µm
Harmonized System (HS) code 85369010
Networking standards IEEE 802.3z
Operating temperature (T-T) 0 - 70 °C
Package depth 122.5 mm
Package height 38.5 mm
Package width 81.5 mm
Hot-swap Yes
Fiber optic connector LC (UPC)
Multi-mode fiber (MMF) supported No
Single-mode fiber (SMF) supported Yes
Wavelength-division multiplexing (WDM) Yes
Product colour Metallic
Maximum transfer distance 1000 m
Rx wavelength (max) 1310 nm
Tx wavelength (max) 1550 nm
SFP transceiver standard BX
Fiber ethernet cabling technology 1000BASE
