Cisco CBS110-16T Switch 16x RJ45 1000Mb/s, Desktop, Rack, Unmanaged

Cisco CBS110 Series

Cisco, one of the world's largest network equipment companies, has an entire series of CBS110 unmanaged switches that are designed for businesses with basic networking needs. They can be used to reduce network infrastructure costs in cases where no complex configuration is required. For example, in video surveillance networks, server management, thin clients and a large number of other similar devices deployed compactly on a single subnet.

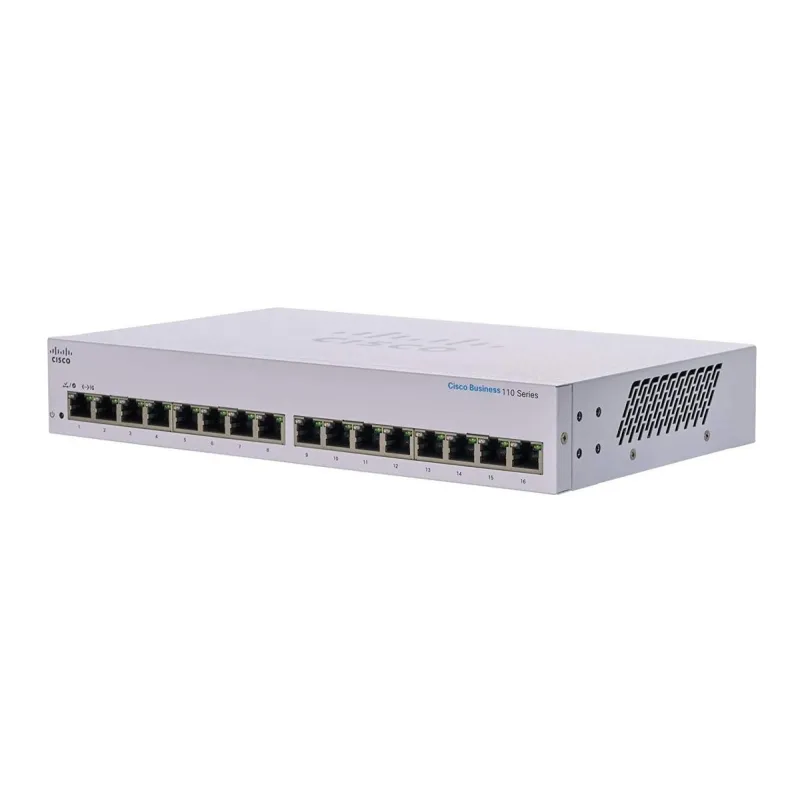

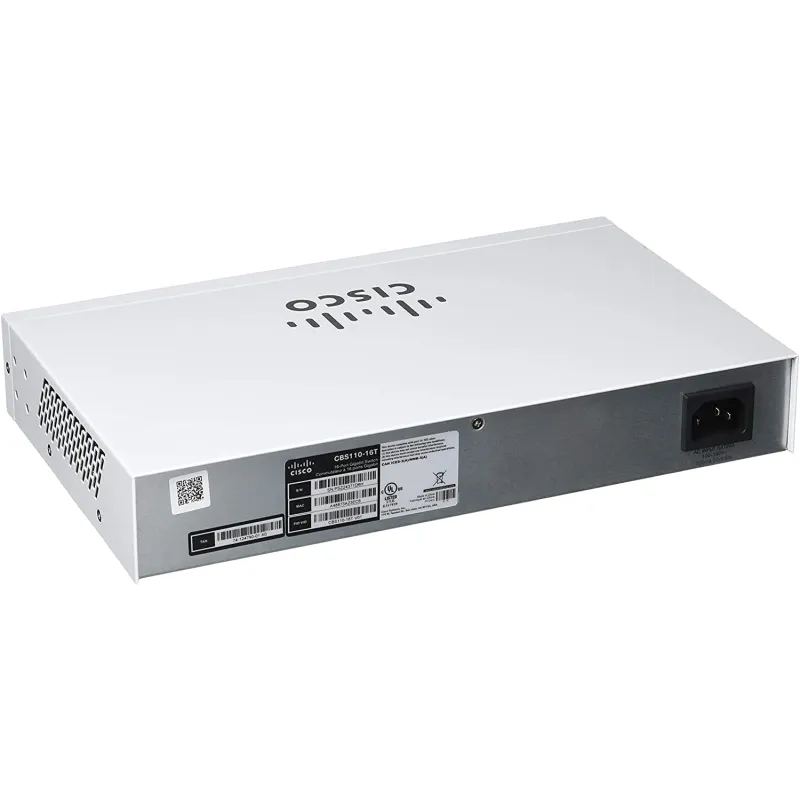

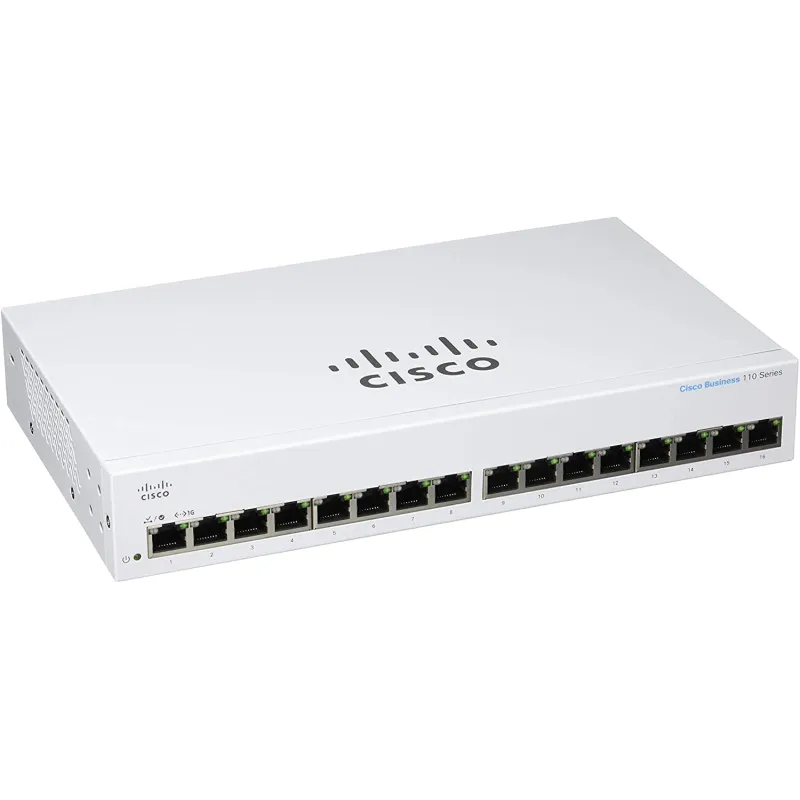

Cisco CBS110-16T Switch

One of the new models in this family is the CBS110-16T-EU in a metal case that can be mounted on a table or in a rack (1U, 19"). The device measures 279 × 170 × 44 mm and weighs 0.97 kg. The switch has a built-in power supply for ~110/220 V mains. Power consumption does not exceed 11.53 W. The lack of fans and support for 802.3az, which regulates power consumption according to network activity, reduces operating costs. Operating temperature range: 0 °C to 40 °C. MTBF (at 25 °C) of 2.685 million hours

Outstanding achievements

TheCisco CBS110-16T-EU has 16 RJ-45 ports (10/100/1000 Mbps) with a total switching speed of 32 Gbit/s. The traffic processing rate is 23.8 mpps (for 64-byte packets), the MAC-address table size is 8000, and the packet buffer size is 2 Mb. The switch has a number of additional features. It supports 802.1p to implement QoS, i.e., prioritization of traffic of delay-sensitive services. A loop detection tool is also available, and line diagnostic tools allow you to quickly find and resolve network cabling problems. In addition, the switch can also detect and drop "bad" packets to prevent them from propagating further down the network.

Reliability and simplicity

The CBS110-16T-EU is reliable, affordable and plug-and-forget, meaning it requires no configuration, software installation or special knowledge on the part of the user. The integrated controller automatically detects the type of devices being connected and selects the best mode for each port. This makes the switch the best choice for small businesses that don't have their own IT department.
