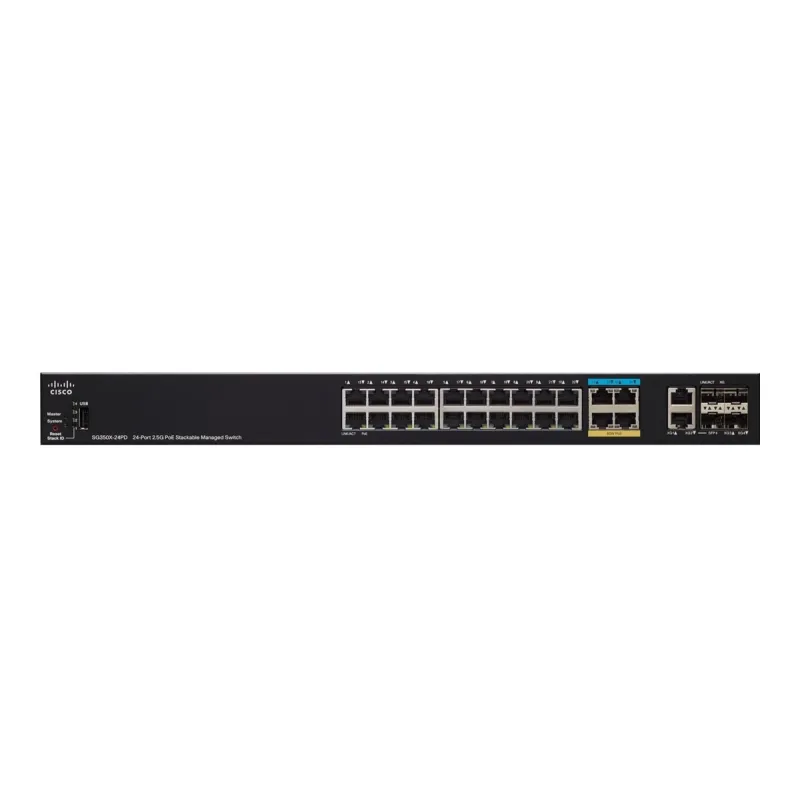

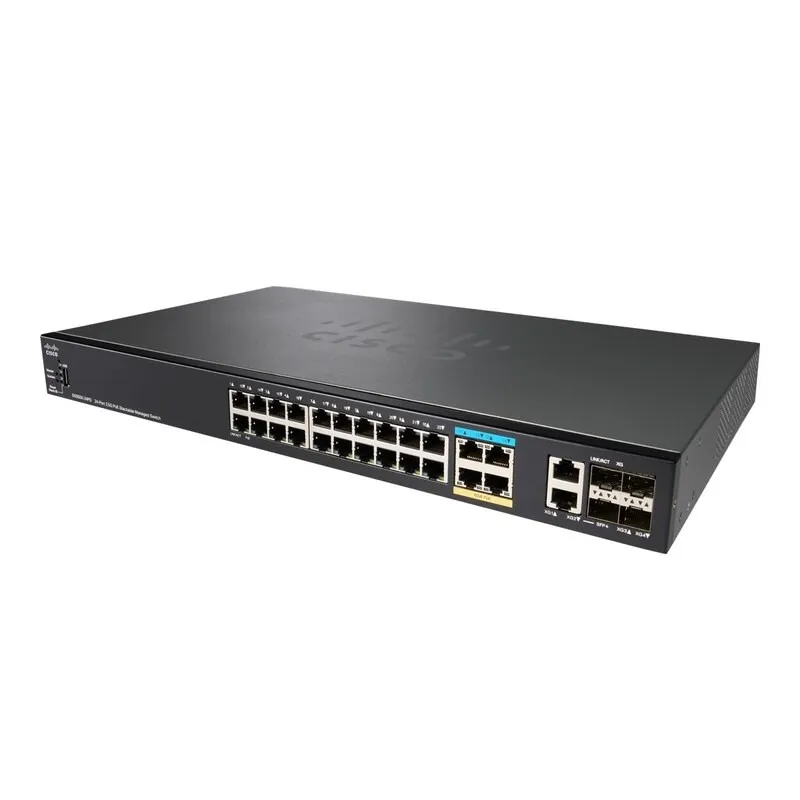

Cisco SG350X-24PD | PoE Swtich | 24x Gigabit RJ45 PoE, 4x 1G/2,5G RJ45, 2x 10G Combo(RJ45/SFP+), 2x SFP+, 375W PoE, Stackable

Cisco SG350X-24PD - 30-port PoE Gigabit switch with 10Gb/s SFP+ and RJ45 Uplink ports with Stackable Managed Switch - Cisco 350X series

The Cisco SG350X-24PD switch is equipped with 20 RJ45 ports with a throughput of 1000Mbps and 4 RJ45 ports with a throughput of 1/2.5Gbps. The switch also has 4 Uplink ports with a throughput of 10Gb/s (2 Combo 10G RJ45/SFP+ ports and 2 SFP+ ports). Cisco devices have several management capabilities, including graphic user interface available through a web browser and text CLI. console.

Top-level performance

The switch has a throughput of 104.14 million packets per second (64-byte packets) and a switching capacity of 140 Gb/s. This model has 24 ports with PoE support, 4 of the ports can power devices up to 60W. The total PoE power budget is 375W. The Cisco switch has a limited manufacturer's lifetime warranty.

Cisco 350X Series

Cisco® 350X Managable Switches is a line of managed Ethernet switches that provide the rich capabilities needed for more demanding network environments at a very affordable price. These switches are easy to deploy and manage without large IT staff.

Physical stacking of switches

Unlike switches that can be stacked, but have components that are administered and diagnosed separately, the Cisco 350X Series provides true stacking capabilities, allowing you to configure, manage and troubleshoot multiple switches as if they were a single device, making network expansion much easier. The 350X Series can combine up to 4 switches and up to 208 ports managed as one system in a stack.

Why Cisco? Features and benefits.

The Cisco 350X series of switches offers an advanced set of features required by growing companies and high-bandwidth applications and technologies. These switches can improve the reliability of key features, protect sensitive business information, and optimize network bandwidth for more efficient data transfer over the network.

The most important features:

- High performance 10 Gigabit Ethernet switches - The Cisco 350X series switches allow you to use up to 10Gbit/s, over Ethernet cable networks, providing sufficient performance for growing networks of small and medium enterprises.

- Multigabit Performance - Traditional Ethernet infrastructures can handle speeds up to 1 Gigabit per second (Gbps), the 350X Series switches allow you to cross this barrier.

- Easy configuration and management - The Cisco 350X Series Switches are designed to be easy to use and manage.

- Power over Ethernet Plus (PoE+) and 60W PoE - PoE technology simplifies the deployment of IP phones and wireless access points by enabling connecting and powering network endpoints with a single Ethernet cable, without having to install separate power supplies. The 350X series switches support 15W Power over Ethernet (PoE) and 30W Power over Ethernet Plus (PoE+). The switches also support PoE 60W on selected ports to power compact switches, wireless access points, or other high power devices.

- High reliability and robustness - switches with packing capability can play an important role in eliminating downtime and improving network resistance. For example, if a Cisco 350X Series switch connected in a stack fails, another switch immediately takes control of the network, keeping it running.

- True Stacking - The Cisco 350X Series provides physical stacking of switches, allowing you to configure, manage, and troubleshoot multiple physical switches on a single device, with a single IP address, for a maximum of 4 devices and up to 208 ports.

- High Security - The Cisco 350X series switches provide advanced security features that are essential to protect business data and protect against unauthorized access to networks.

- Env6Service - Cisco 350X series switches have successfully passed rigorous IPv6 tests and received USGv6 and IPv6 Gold certificates.

- Advanced Layer 3 Traffic Management - Switches support Static Layer 3 LAN routing, enabling workgroup division and VLAN communication without compromising application performance. With these features, you can increase network performance by relieving the router of internal traffic management tasks and allowing it to manage external traffic and network security in particular.

- Energy efficiency - The switches are designed to save energy by optimizing energy consumption, which helps protect the environment and reduce energy costs.

- Networkwide Automatic Voice Deployment - Using a combination of Cisco Discovery Protocol, LLDP-MED, Auto Smartports and Voice Services Discovery Protocol (or VSDP, Cisco's unique protocol), customers can dynamically deploy an end-to-end voice network.
