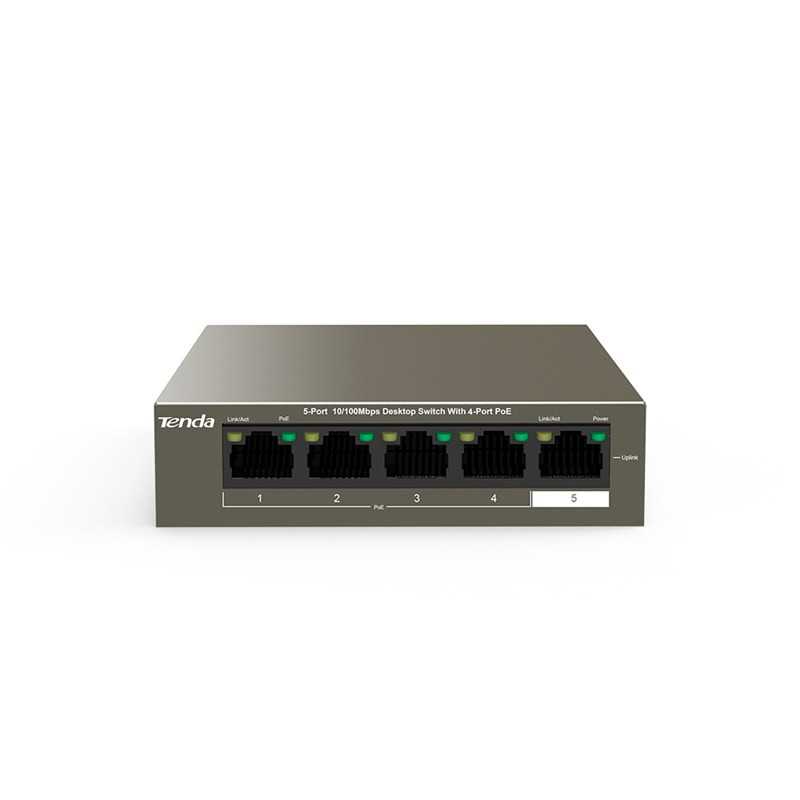

Tenda TEF1105P-4-63W | Switch | 4x 10/100MBs, 1x UPLINK PORT 10/100MBs

5-port Gigabit desktop switch

The Tenda TEF1105P-4-63W is a switch offering 5 RJ45 BASE-TX 10/100Mbps RJ45 ports, one of the ports has an uplink and the other 4 ports support 802.3af and 802.3at PoE. The switch supports a stable 8-core PoE power supply, 6KV surge protection. TEF1105P-4-63W has been designed for small and medium businesses as well as for home use.

58 W PoE power supply - simplified cabling

The Tenda TEF1105P offers a maximum output of 58W, while each port provides a maximum PoE output of 30W. The PoE ports comply with IEEE802.3af and IEEE802.3a power standards and the switch can be used to power and exchange data with access points and IP cameras.

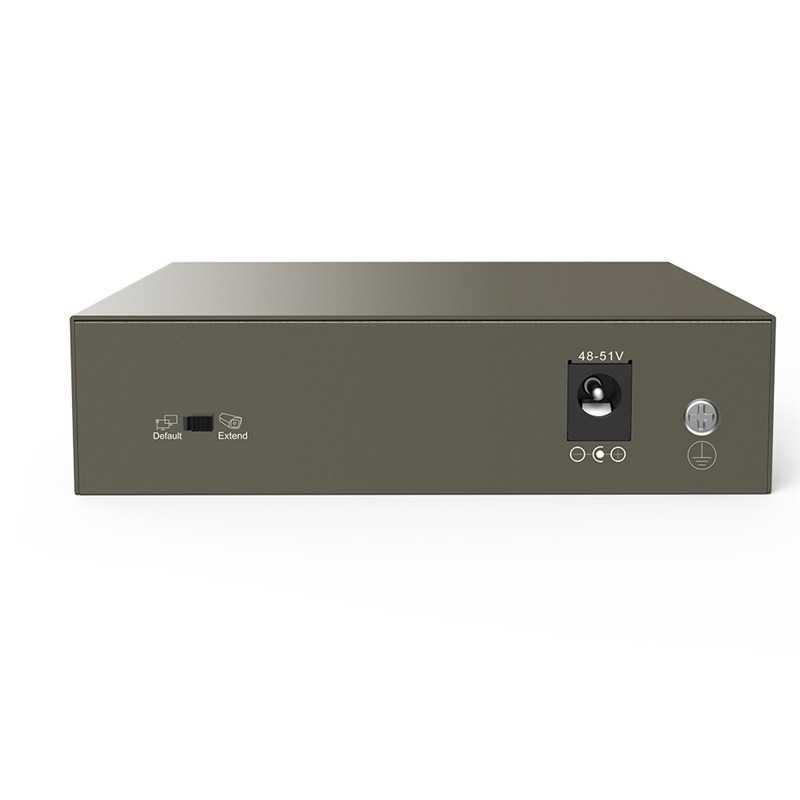

Default / extended mode switch

The TEF1005P has two operating modes:

• Default mode - In this mode the device operates as a classic switch, all ports have auto-negotiation and 10/100 Mbps speed
• Expansion mode - In this mode, VLANs are active on each PoE port, each PoE port communicates only with the UPLINK port and not with other PoE ports.

6 kV lightning protection

The TEF11 switch has a professional lightning protection design for ports and power supply, which effectively suppresses the voltage caused by storm surges. During a storm, the device is also designed to ensure stable and reliable operation of the surveillance network and guarantee standardized video transmission.

Key features:

• Ports: 5x 10 / 100Mbps RJ45 with auto-negotiation, and 4 PoE ports supporting IEEE802.3 at / af
• Total capacity: 1 Gb / s
• The size of the MAC address plate: 1 KB
• Switching mode: Store-And-Forward
• LED indications: 5x Line / Activity, 4x PoE status, 1x Power, 1x 100Mbps
