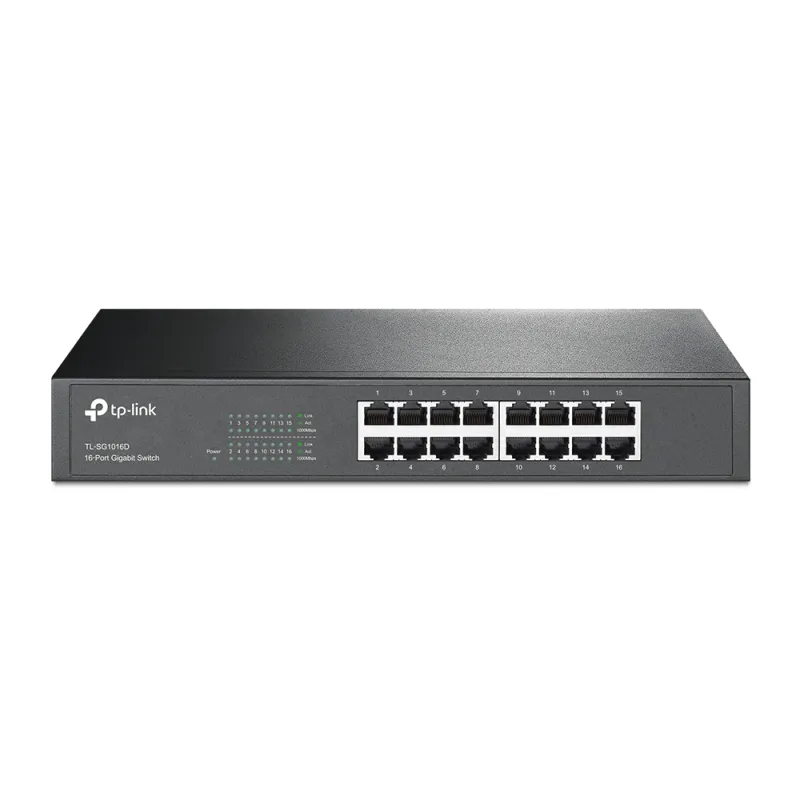

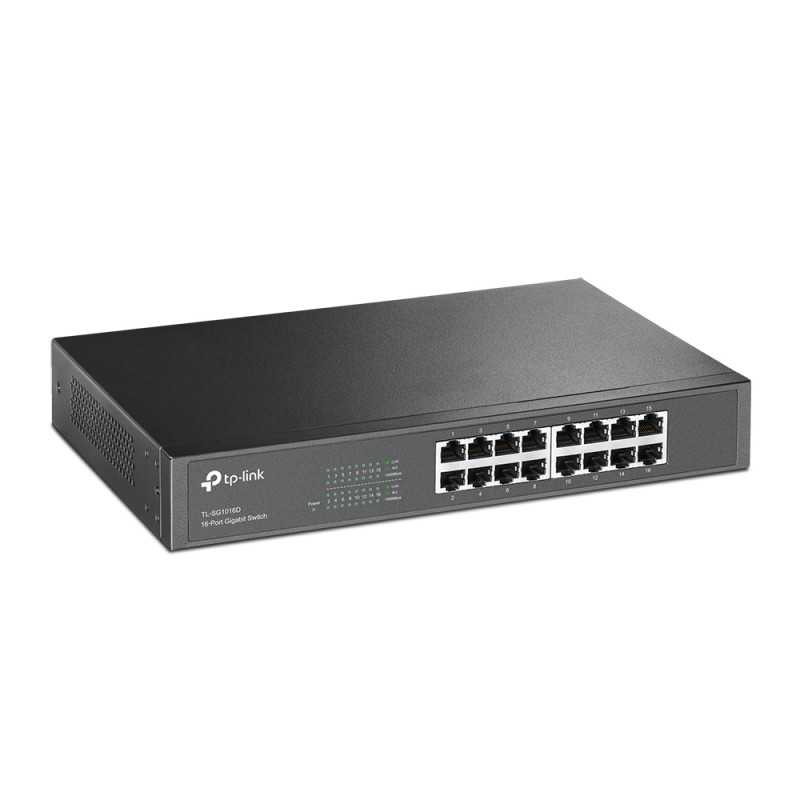

TP-Link TL-SG1016D | Switch | 16x RJ45 1000Mb/s, Rack, Unmanaged

EAN: 6935364020613

Reference: TL-SG1016D

301.61 zł gross gross / meter 245,21 zł netto gross / piece

Availability No product

Payments methods

przelewy.jpg google-pay.jpg apple-pay.jpg mastercard.jpg visa.jpg blik.jpg mbank.jpg paypo.jpg payu.jpg

Energy-efficient 16-port Easy Smart Gigabit Switch TP-Link TL-SG1016D

Energy efficient TP-Link TLSG1016D is a switch to support Gigabit Ethernet connection. All 16 ports have automatically cross-over MDI/MDIX function, so that quick installation is possible without having to check the type of cable used. The device operates on the basis of innovative Green TP-Link technology, which saves up to 15% of the energy used, while 80% of the materials used in the packaging are recyclable.

High network capacity - ideal for business needs

The Easy Smart switch TL-SG1016D 10/100/1000 Mbps provides a bandwidth that allows users, especially business users, to instantly transmit large files. The device supports jumbo frames up to 10 KB, which significantly increases the transmission speed of larger files, and the IEEE 802.3x flow control system for full duplex mode and backpressure function for half duplex mode ensures efficient operation. Both individual clients at home and users of workgroups in offices or production environments can now transfer bandwidth-intensive files without problems.

Green TP-Link

The TL-SG1016 switch uses Green TP-Link technology, which effectively increases network throughput while saving energy. The device automatically adjusts power consumption depending on connection status and cable length. The switch complies with the European Directive RoHS limiting the use of equipment made of environmentally hazardous materials.

Trouble-free installation

The plug and play function allows a simple and seamless installation without any additional software. MDI/MDIX allows you to install the device without the use of crossover cables, and automatically negotiates connections detects on each port the speed of the connected device (10, 100 or 1000 Mb/s), providing the best transmission performance.

Storage relative humidity (H-H) 5 – 90%
Power source mains electricity
Height 44 mm
LED indicators Yes
Width 294 mm
Depth 180 mm
Auto-negotiation Yes
Storage temperature (T-T) -40 to 70 °C
Cables included AC
Rack mounting Yes
Compliance certificates CE
Fanless Yes
Power consumption (max) 9.26 W
Package weight 1850 g
Humidity measurement range 10 – 90%
Harmonized System (HS) code 85176990
Switching capacity 32 Gb/s
Networking standards IEEE 802.3ab
Switch type Unmanaged
10G support No
Full duplex Yes
Auto MDI/MDI-X Yes
Operating temperature (T-T) 0 – 40 °C
Package depth 400 mm
Package height 80 mm
Heat dissipation 31.6 British thermal unit per hour
Package width 250 mm
Package type Box
Rack mount kit Yes
Supported network protocols CSMA/CD, TCP/IP
User guide Yes
Flow control support Yes
Jumbo frames 10000
Jumbo frames support Yes
MAC address table 8000 entries
Power supply included Yes
Power over Ethernet (PoE) No
AC input frequency 50 Hz
AC input voltage 100 V
Gigabit Ethernet (copper) ports quantity 16
Maximum cable length 100 m
Cable types supported Cat3
Store-and-forward Yes
Copper ethernet cabling technology 1000BASE-T
Product colour Black
Power connector AC-in jack
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 16
Stackable Yes
Operating system Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10
MacOS
NetWare
UNIX
Linux
Sustainability compliance Yes
