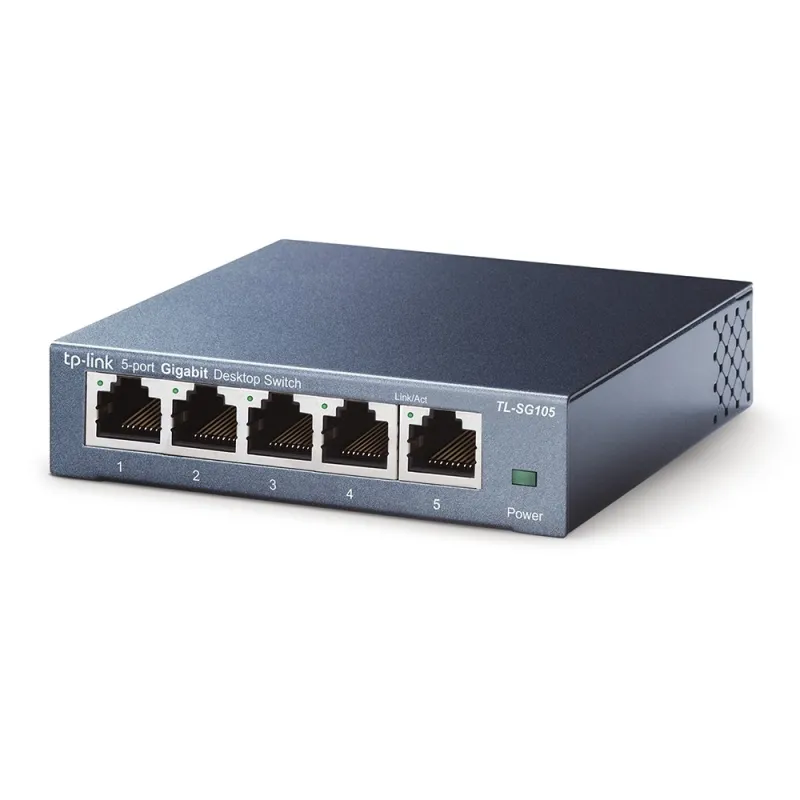

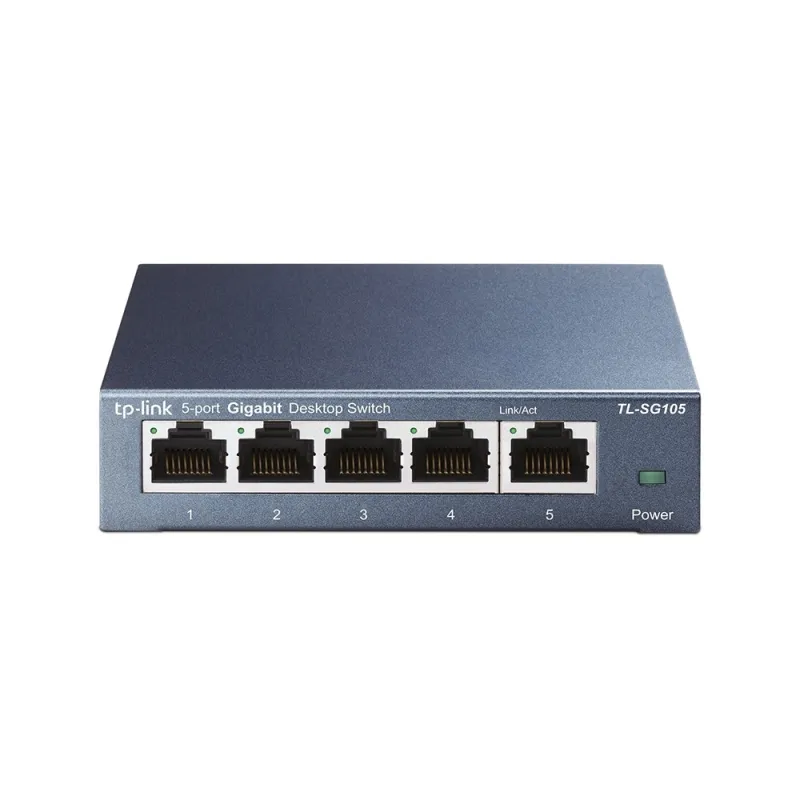

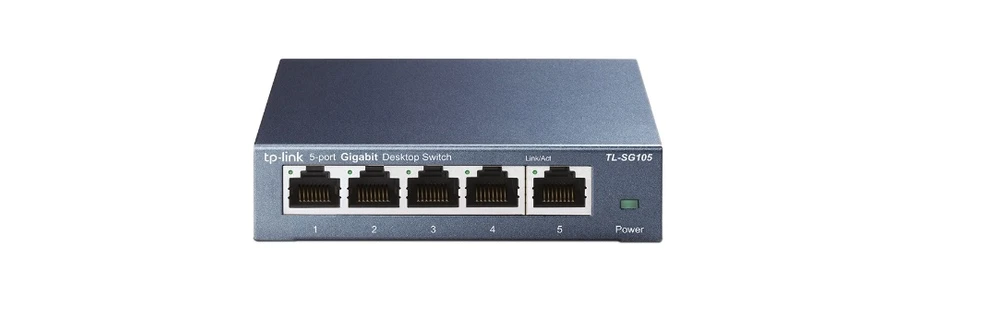

TP-Link TL-SG105 | Switch | 5x RJ45 1000Mb/s, Desktop, Unmanaged

EAN: 6935364021146

Reference: TL-SG105

88.20 zł gross gross / meter 71,71 zł netto gross / piece

Availability No product

Payments methods

przelewy.jpg google-pay.jpg apple-pay.jpg mastercard.jpg visa.jpg blik.jpg mbank.jpg paypo.jpg payu.jpg

Switch TL-SG105 - increase speed and save energy

TL SG105 switch is an easy way to increase the speed of network servers and backbone connections. Whether you work from home or in the office, the switch will make your work faster and easier. The device is equipped with five RJ45 10/100/1000 Mbps ports with automatically negotiated connection speed and Auto MDI/MDIX. Whereas IEEE 802.3x data flow control ensures reliable transmission and the IGMP snooping function effectively manages the multicast packet flow. The device has a desktop casing.

Faster network with gigabit ports

The TL-SG105 features five 10/100/1000 Mbps ports for increased throughput, allowing you to transfer large, bandwidth-intensive files in an instant. It also features QoS IEEE 802.1p for smooth and interference-free transfer.

Energy-efficient Green TP-Link network

The latest generation of unmanaged switches from TP-Link use energy-saving technology. The devices automatically adjust the required power consumption depending on the connection status and cable length, allowing the use of high bandwidth networks with high energy savings. Such solutions are environmentally friendly and at the same time help to reduce electricity bills.

Simple Plug and Play configuration

With Plug and Play, installation of the switch is extremely fast and easy, and automatic connection negotiation provides independent detection of the speed of connected devices, guaranteeing compatibility and optimal transmission performance. Automatic crossover MDI/MDIX makes it unnecessary to use crossover cables when connecting devices to the switch.

Regulatory Approvals CE, FCC, RoHS
Storage relative humidity (H-H) 5 – 90 %
Power source mains electricity
Height 25 mm
Input voltage 9 V
LED indicators Yes
Switching protocols CSMA/CD
Width 100 mm
Depth 98 mm
Connectivity technology Wired
Auto-negotiation Yes
Packet buffer memory 1 MB
Input current 0.6 A
Storage temperature (T-T) -40 to 70 °C
Maximum data transfer rate 2 Gb/s
Power consumption (max) 2.3 W
Package weight 370 g
Humidity measurement range 10 – 90%
Switching capacity 10 Gb/s
Networking standards IEEE 802.1p
Switch type Unmanaged
10G support No
Full duplex Yes
Power LED Yes
Auto MDI/MDI-X Yes
Operating temperature (T-T) 0 – 40 °C
Supported data transfer rates 10/100/1000 Mbps
Package depth 128 mm
Package height 92 mm
Heat dissipation 7.83 British thermal unit per hour
Package width 125 mm
Quality of Service (QoS) support Yes
Package type Box
Rack mount kit Yes
User guide Yes
IGMP snooping Yes
Flow control support Yes
Jumbo frames 16000
Jumbo frames support Yes
MAC address table 2000 entries
Power supply included Yes
Power over Ethernet (PoE) No
Wi-Fi No
Ethernet LAN Yes
Gigabit Ethernet (copper) ports quantity 5
Store-and-forward Yes
Product colour Black
Power connector DC-in jack
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 5
