TP-Link TL-SG105E | Switch | 5x RJ45 1000Mb/s, Desktop, Unmanaged

EAN: 6935364022037

Reference: TL-SG105E

105.12 zł gross gross / meter 85,46 zł netto gross / piece

Availability No product

Payments methods

przelewy.jpg google-pay.jpg apple-pay.jpg mastercard.jpg visa.jpg blik.jpg mbank.jpg paypo.jpg payu.jpg

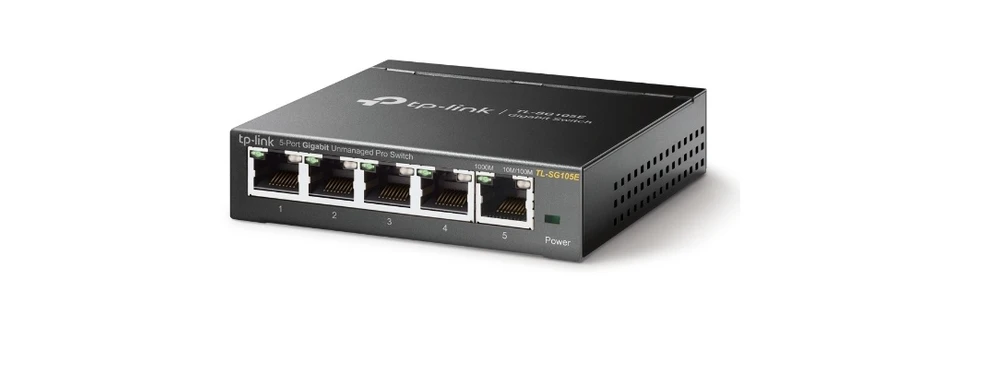

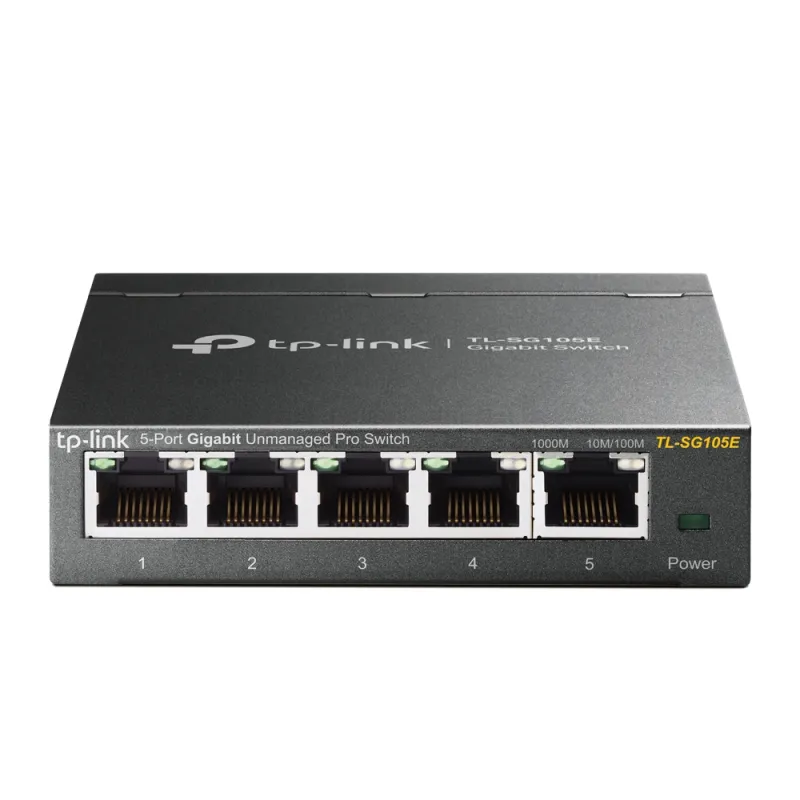

Gigabit unmanaged switch TL-SG105E from TP-Link

The TL SG105E switch from TP-Link is an easy way to increase the speed of network server and backbone connections. Whether you work at home or in the office, the switch will make your work faster and easier. The device has five RJ45 10/100/1000 Mbps ports with automatically negotiated connection speed and Auto MDI/MDIX crossover function. Robust metal housing provides better component protection. The switch is equipped with intelligent management functions such as QoS, VLAN and IGMP Snooping, making it suitable for both simple and more complex network environments.

Universal switch for simple and complex network environments

The TL-SG105E is ideal not only for simple Plug and Play networks, but also for more complex network environments. The network monitoring function allows users to observe network traffic, while Port mirroring and loop prevention and cable state diagnostics allow users to detect and locate connection problems. Based on the 802.1p/ DSCP QoS port, administrators can prioritize network traffic, for example to ensure smooth and uninterrupted operation of voice or video applications. Combining security with network performance, the TL-SG105E Gigabit switch supports VLAN MTU and VLAN based on port and VLAN based on 802.1Q.

Energy-efficient Green TP-Link network

The latest generation of unmanaged switches from TP-Link use energy-saving technology. The devices automatically adjust the required power consumption depending on the connection status and cable length, allowing for high bandwidth networks with high energy savings. Such solutions are environmentally friendly and at the same time help to reduce electricity bills.

Easy to operate

With Plug and Play, installation of the switch is extremely fast and easy, and automatic connection negotiation provides independent detection of the speed of connected devices, guaranteeing compatibility and optimal transmission performance. Automatic MDI/MDIX crossover makes it unnecessary to use crossover cables when connecting devices to the switch.

Regulatory Approvals FCC, CE, RoHS
Storage relative humidity (H-H) 5 – 90 %
Power source mains electricity
Height 25 mm
Input voltage 5 V
LED indicators Yes
Width 100 mm
Depth 98 mm
Auto-negotiation Yes
Virtual LAN features Port-based VLAN
Packet buffer memory 1 MB
Input current 0.6 A
Storage temperature (T-T) -40 to 70 °C
Cables included AC
Power consumption (max) 2.82 W
Package weight 450 g
Humidity measurement range 10 – 90%
Switching capacity 10 Gb/s
Quick start guide Yes
Networking standards IEEE 802.1p
Switch type Managed
10G support No
Auto MDI/MDI-X Yes
Number of VLANs 32
Operating temperature (T-T) 0 – 40 °C
Package depth 128 mm
Package height 92 mm
Heat dissipation 9.07 British thermal unit per hour
Package width 125 mm
Quality of Service (QoS) support Yes
Package type Box
Rack mount kit Yes
VLAN support Yes
Link aggregation Yes
User guide Yes
IGMP snooping Yes
Web-based management Yes
Port mirroring Yes
Jumbo frames 16000
Jumbo frames support Yes
MAC address table 2000 entries
Power supply included Yes
Power over Ethernet (PoE) No
Gigabit Ethernet (copper) ports quantity 5
Cable types supported Cat3
Store-and-forward Yes
Copper ethernet cabling technology 1000BASE-T
Product colour Black
Switch layer L2+
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 5
Operating system Microsoft Windows XP, Vista Windows 7, Windows 8, MAC OS, NetWare, UNIX / Linux
