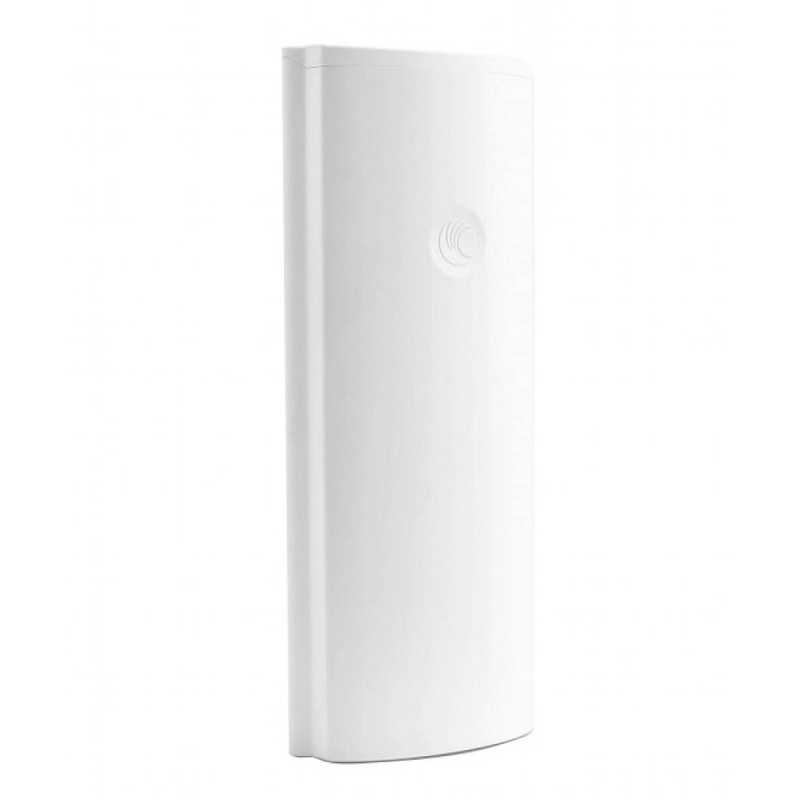

Cambium EPMP 4X4 MU-MIMO | Sector antenna | for EPMP 3000 series

World-class sector antenna CAMBIUM EPMP 4x4 MIMO

Cambium Networks has deployed over five million radio devices worldwide, achieving unprecedented levels of scalability. Continuing the tradition of designing and manufacturing industry-leading antenna solutions, Cambium Networks ePMP 3000 4X4 sector antenna combines all the key innovations in the Cambium antenna lineup with the addition of 4X4 Multi User MIMO support. This antenna has been designed to operate in 5 GHz band and 90 degree propagation. It is an integral part of Access Point ePMP 3000 and supports multiple MIMO users.

Key benefits

• Re-use of frequencies: designed to reuse the ABAB channel (two channel coverage, four sectors). The sector antenna has a minimum gain of 17 dB and propagation over a wide 90 degree radiation angle.
• Antenna selectivity: a constant gain of 4.9 to 6.0 GHz allows the operator to select a channel in any band and achieve the desired performance.
• Consistent coverage: the excellent ability to fill the antenna allows a large geographical area in the sector to be covered, both at the base of the antenna mast and near the edges of the sector.
• Designed for easy mounting: small, compact design, integrated ePMP antenna holder and the possibility of integration with a GPS antenna.
• Predictable performance: the sector antenna is available for designers in the Cambium LINKPlanner programme. The 3D model shows the range at all altitudes and latitudes.
