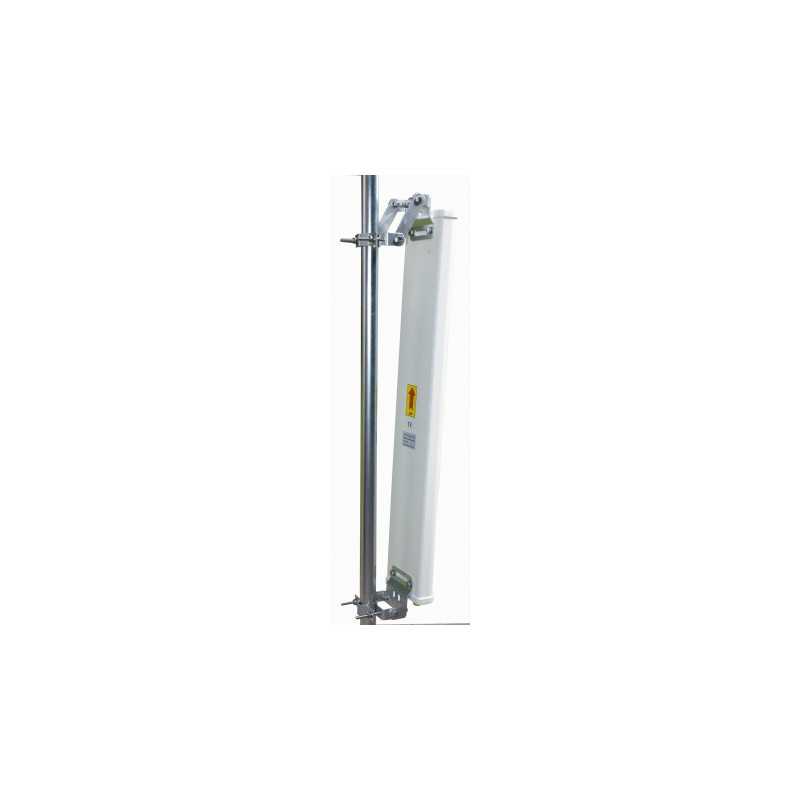

Extralink D-2400-16-120 | Sector antenna | 16dBi, 2,4GHz
EAN: 5905090332381
Reference: D-2400-16-120
61.50 zł gross 50,00 zł netto
Warranty and service support
Available options and delivery cost
Same-day shipping
Payments methods
Sector antenna D-2400-16-120
The D-2400-16-120 sector antenna is designed for operation in the wide frequency range of 2.4 GHz. The antenna maintains a high gain of 16 dBi over the entire operating frequency band. It is ideal for base stations in areas where many antennas operate in horizontal polarization. The housing is made of very durable material and fully protects the antenna from weather conditions. Excellent mounting system
Height 60 mm
Antenna type Sector antenna
Width 1300 mm
Depth 160 mm
Power consumption (max) 100 W
Networking standards IEEE 802.11b
Antenna gain level (max) 16 gain
Impedance 50 Ω
Operating temperature (T-T) -40 - 65 °C
Survival wind speed 210 km/h
Horizontal beam width 120 °
Vertical beam width 6 °
Antenna gain (2.4 GHz) 16
Antenna connector type N-type
Connector gender Female
Product weight 4000 g
Information about responsible entities
Batna Sp. z o. o. Manufacturer
Country: PL
Street: 1 Maja 23
Postal Code: 42-202
City: Częstochowa
Mail: info@extralink24.com
