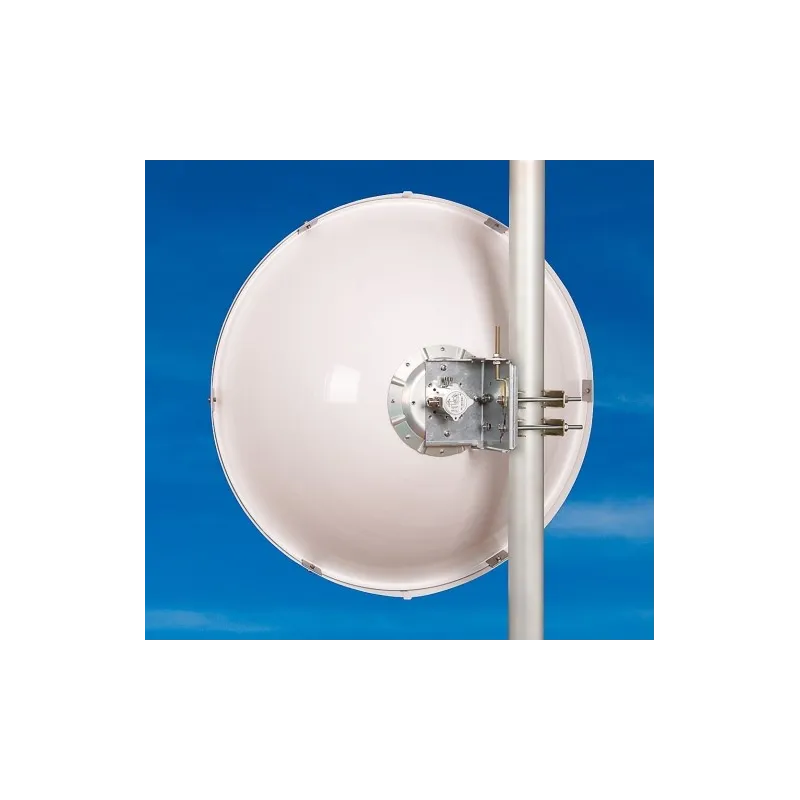

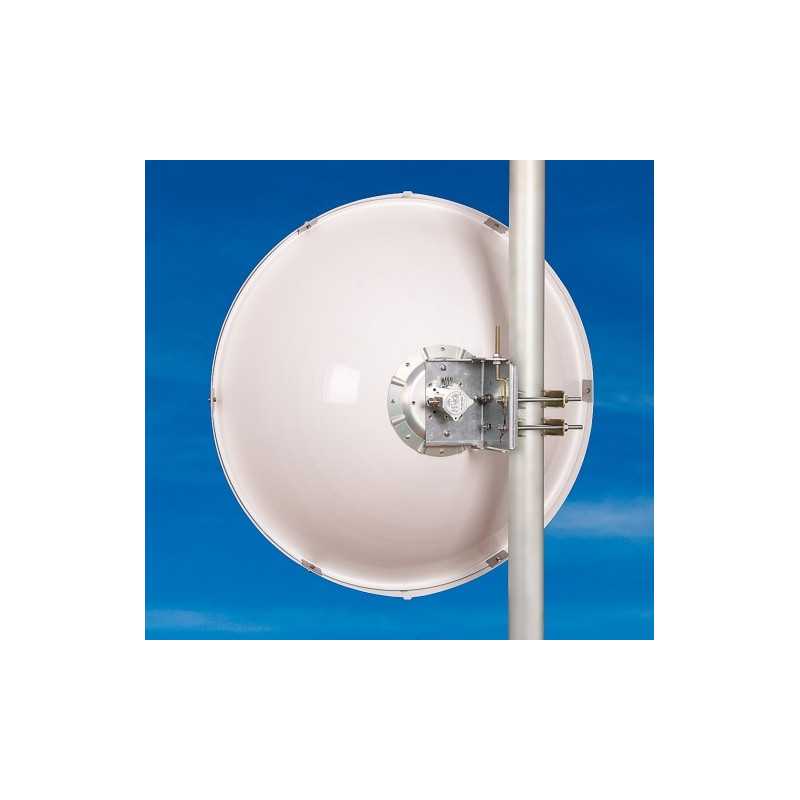

Jirous JRC-32DD Duplex Precision N/Female | Parabolic antenna | 5,45 - 5,9GHz, 32dB

JRC-32 Deep Dish DuplEX

The JRC-32 Deep Dish DuplEX Precisiondual-polarized parabolic antennais designed for directional links
with full duplex mode or MIMO duplex mode in 5 GHz frequency band with high isolation
isolation level.

Distances are no barrier

The antenna is designed for long distance operation. Its deep dish design increases isolation between antennas on a mast and increases the front-to-back ratio. The Precision version includes the massive JDMW-900 mount developed for microwave links.

Radiation measurement

Application of antenna from Jirous

The antenna can be used in conjunction with the JR-350 Alu metal outdoor box for APs, RouterBOARDs and other electronics. The unit has separate snap nuts for easy mounting and adjustment of azimuth and elevation. Both right and left side mounting is possible. The antenna is supplied with a bracket (packaged separately) for easy mast mounting. The bracket can be installed on a mast separately. The bracket allows precise adjustment in both directions. In areas where strong winds are expected, mounting on a mast with a minimum diameter of 50 mm is recommended.
