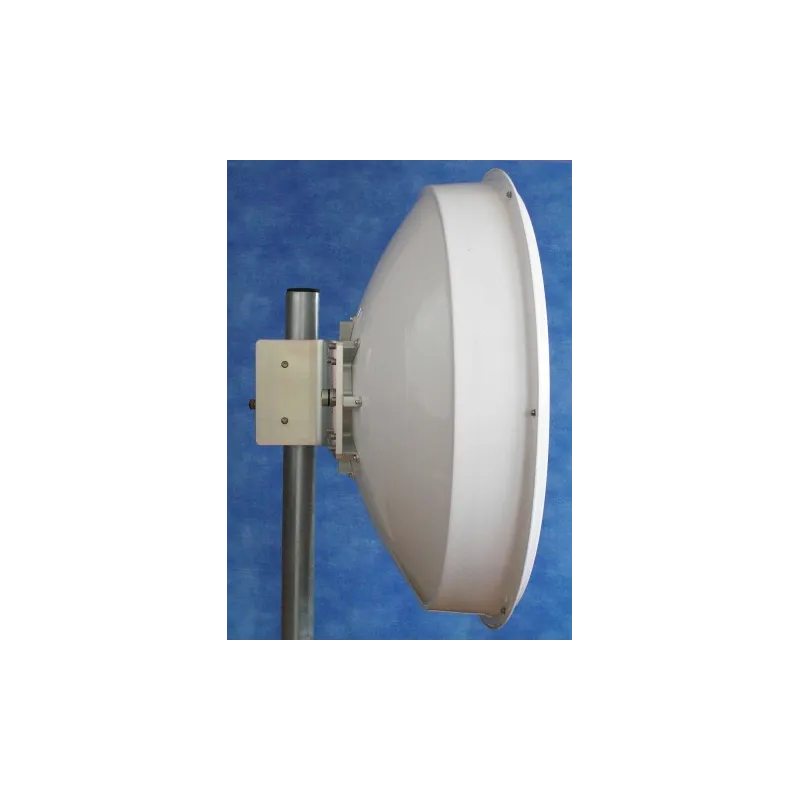

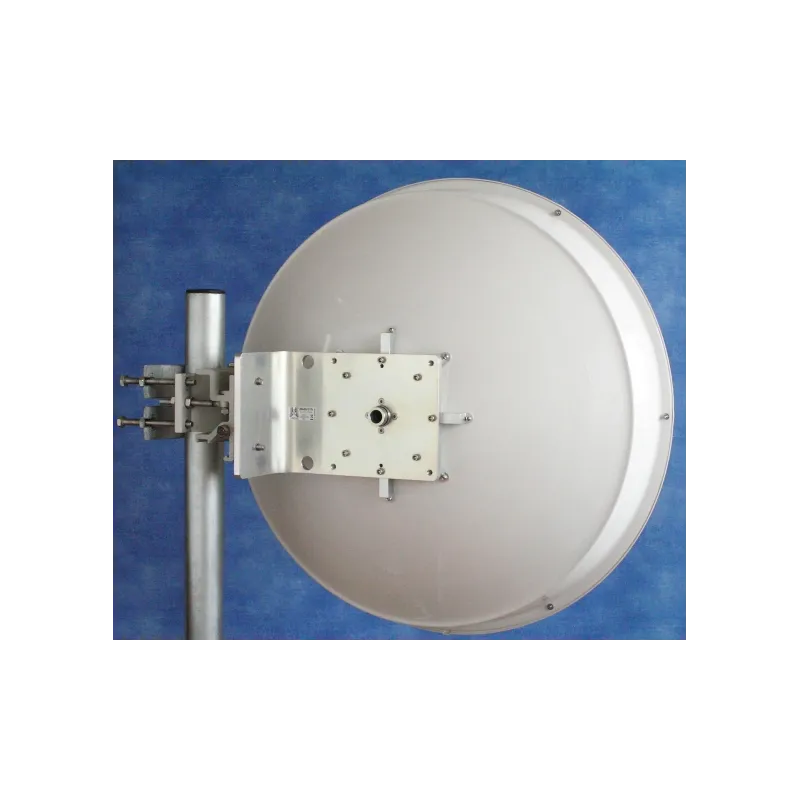

Jirous JRMA-650 Parabolic Antenna 10/11, 10.1 – 11.7GHz, 35dBi, Dedicated for Mimosa B11

JRMA-650-10/11

The JIRIOUS antenna is designed for microwave links in the 10 and 11 GHz frequency bands. Precise operation is compliant with ETSI EN 302-217-4-2 class 2. The whole antenna system with JDMW-900 holder has extreme wind stability. The antenna is supplied with a bracket for easy mounting on a mast. The bracket can be mounted separately on a mast. Then you can simply hang the antenna with a microwave unit in it. We recommend mast mounting with a minimum of O50 mm in areas of adverse weather conditions. The bracket allows precise adjustment of the height (pitch) and azimuth ± 20°. Right and left side mounting is possible.

Distinguishing features JRMA-650-10/11

• professional microwave antenna
• metal parabola flange with absorbent material for high resistance to interference
• high insulation of adjacent connections
• solid bracket JDMW-900 with exact height and azimuth setting
• right and left hand assembly
• extreme wind stability
